Power Transfer Unit Draining and Filling

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
WSS-M2C942-A

Draining

With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .
Remove the underbody shield. Refer to: Engine Front Undershield .
Remove the PTU drain plug.

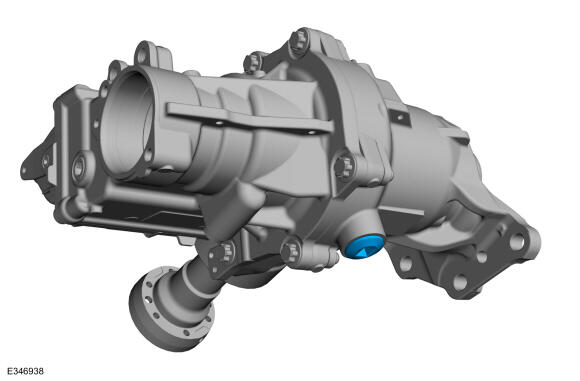

Courtesy of FORD MOTOR COMPANY
NOTE: Ensure drain plug gasket is properly seated and flush inside of drain plug groove. Drain Plug Gasket should not be visible after installation.

Install the oil drain plug with the new gasket.

Torque

: 40 Nm

Courtesy of FORD MOTOR COMPANY

Filling
Remove the PTU fill plug.

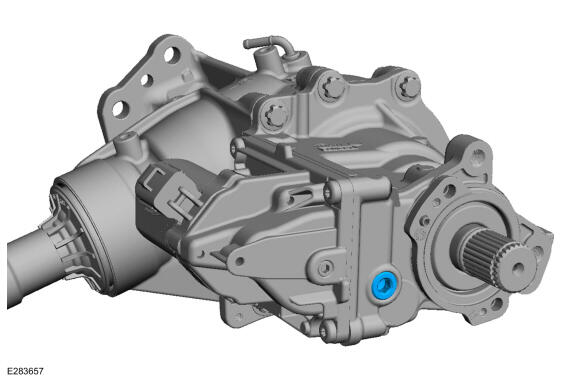

Courtesy of FORD MOTOR COMPANY
Fill the PTU with clean fluid, level with the fill plug opening. Refer to: SPECIFICATIONS .
Material

: (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque

: Stage 1: 15 Nm Stage 2: 360deg.

Courtesy of FORD MOTOR COMPANY
Install the underbody shield. Refer to: Engine Front Undershield .
