Wastegate Control Actuator: Removal

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

NOTE: Do not handle or push the turbocharger wastegate actuator linkages. Failure to do so may result in damage.

Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Disconnect the wastegate control actuator electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the catalytic converter heat shield.

Courtesy of FORD MOTOR COMPANY

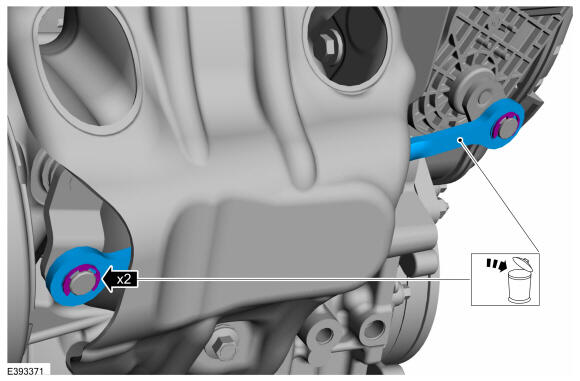

Remove and discard the wastegate control actuator linkage c-clips, then remove and discard the linkage.

Courtesy of FORD MOTOR COMPANY

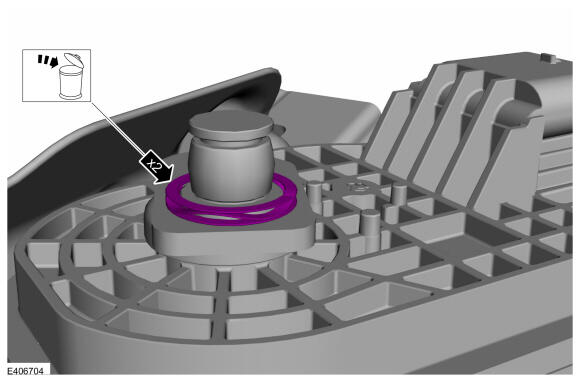

Remove and discard the spring washers.

Courtesy of FORD MOTOR COMPANY

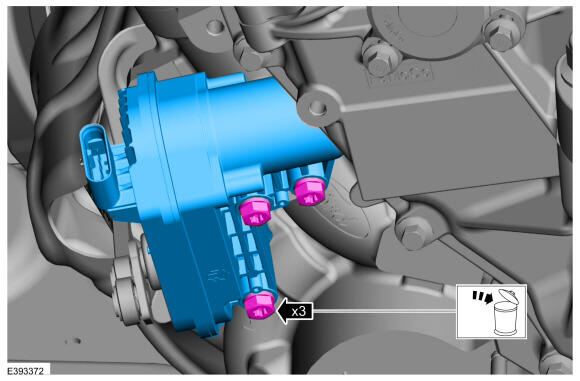

Remove and discard the wastegate control actuator bolts, then remove the wastegate control actuator.
