Wastegate Control Actuator: Installation
-
NOTE: Make sure that new components are installed.

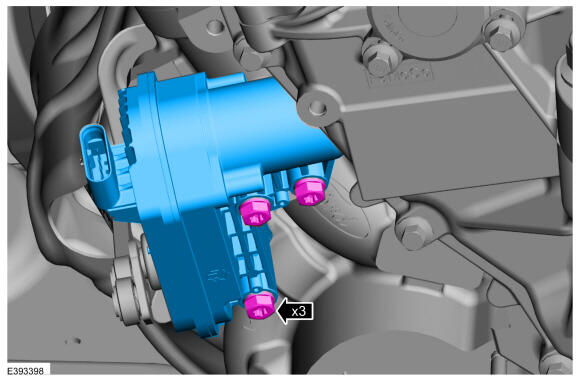

Install the wastegate control actuator, then install and tighten the bolts.
Torque
: 9 Nm
-
NOTE: Make sure that new components are installed.

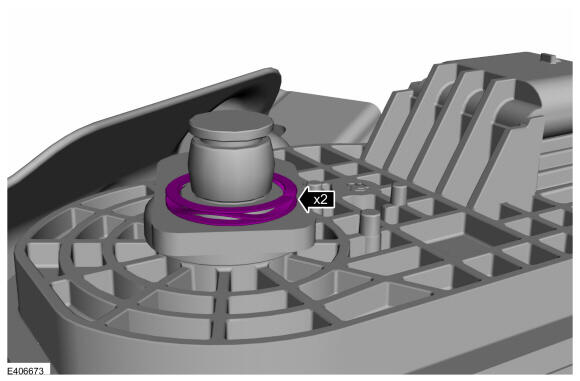

Install the spring washers.
-
NOTE: Make sure that new components are installed.

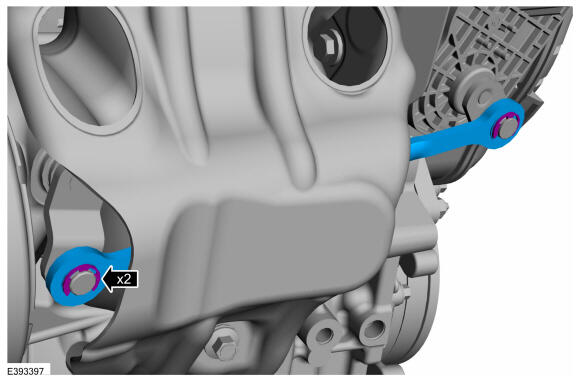

Install the wastegate control actuator linkage and the c-clips.

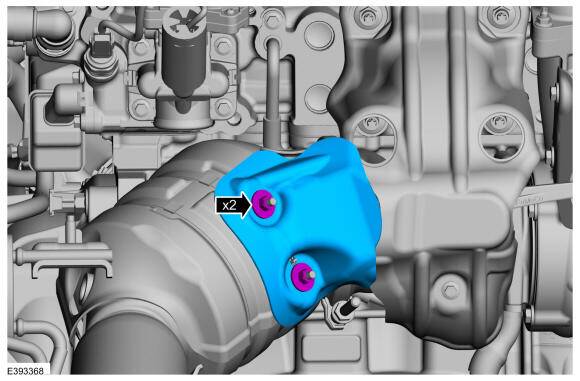

- Install the catalytic converter heat shield and tighten the bolts.
Torque
: 11 Nm

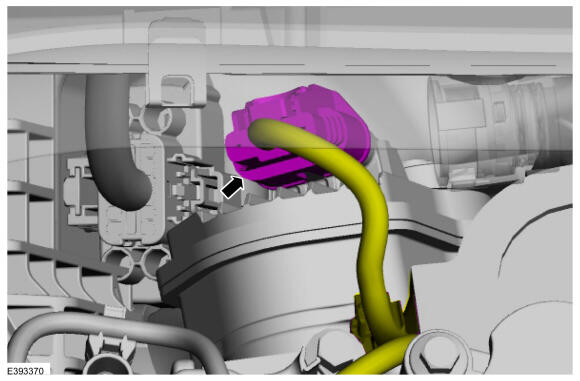

- Connect the wastegate control actuator electrical connector.
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
-
NOTE: Substantial opening and closing torque is applied by this system. To prevent injury, be careful to keep fingers away from wastegate mechanism when actuated. Failure to follow these instructions may result in personal injury.
With the KOEO, using a diagnostic scan tool, clear the PCM DTC's and reset the KAM.
