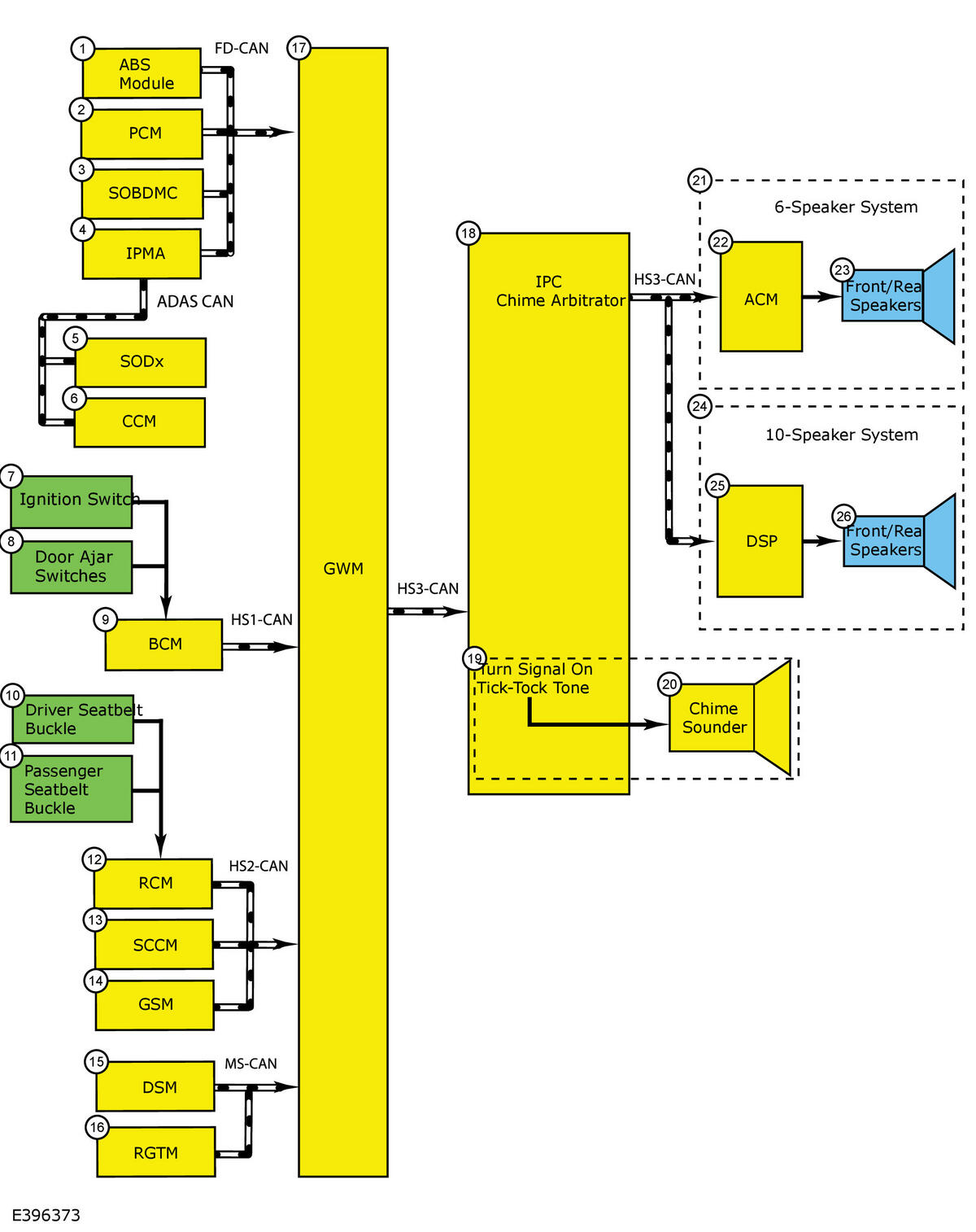

System Diagram
| Item | Description |
|---|---|
| 1 | ABS module |
| 2 | PCM |
| 3 | SOBDMC |
| 4 | IPMA |
| 5 | Side Obstacle Detection Control Module X (SODx) |
| 6 | CCM |
| 7 | Ignition switch |
| 8 | Door ajar switches |
| 9 | BCM |
| 10 | Driver seatbelt buckle |
| 11 | Passenger seatbelt buckle |
| 12 | RCM |
| 13 | SCCM |
| 14 | GSM |
| 15 | DSM |
| 16 | RGTM |
| 17 | GWM |
| 18 | IPC chime arbitrator |
| 19 | Turn signal on tick-tock tone |
| 20 | Chime sounder |
| 21 | 6-speaker system |
| 22 | ACM |
| 23 | Front/rear speakers |
| 24 | 10-speaker system |
| 25 | DSP |
| 26 | Front/rear speakers |
