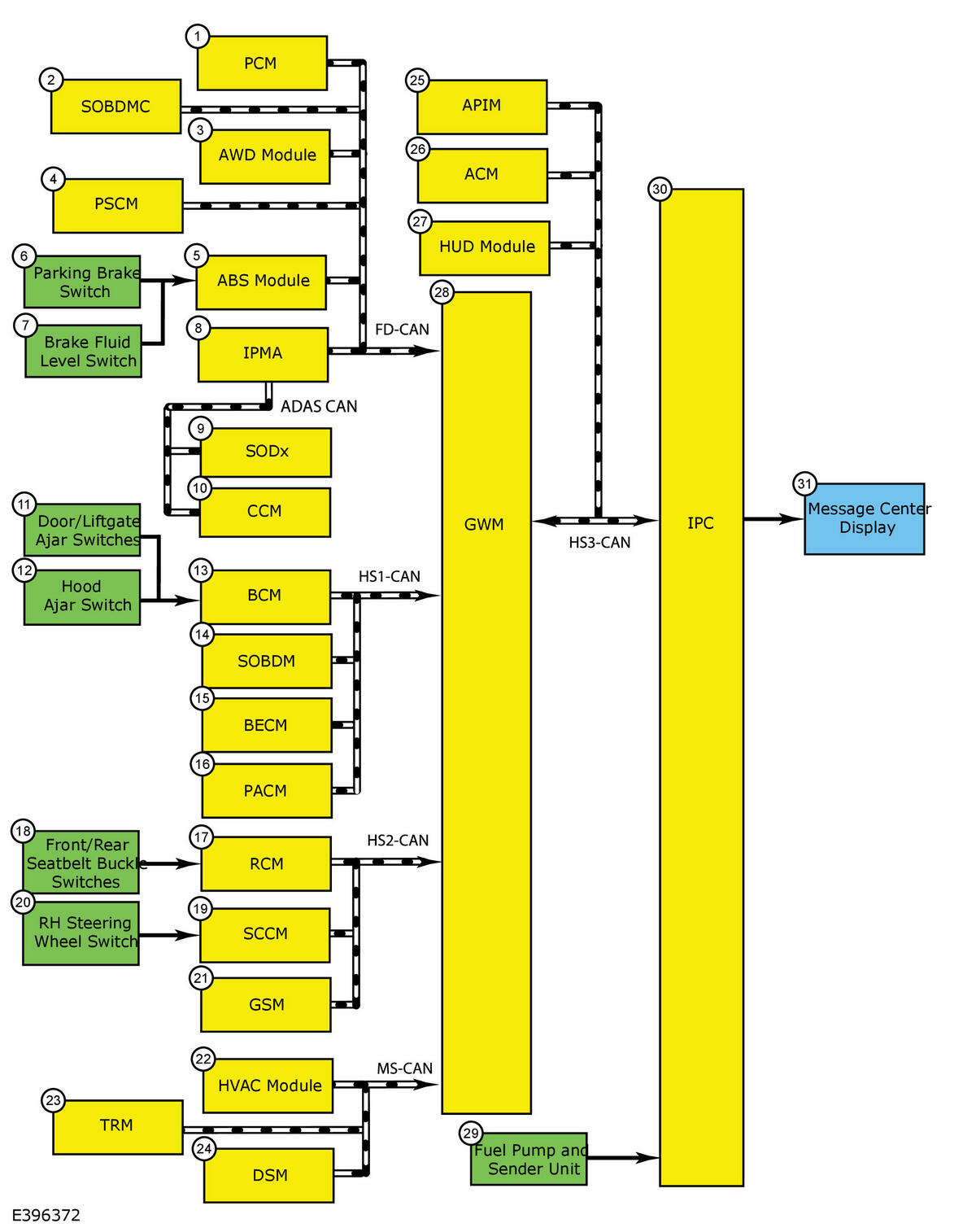

System Diagram
| Item | Description |
|---|---|
| 1 | PCM |
| 2 | SOBDMC |
| 3 | AWD module |
| 4 | PSCM |
| 5 | ABS module |
| 6 | Parking brake switch |
| 7 | Brake fluid level switch |
| 8 | IPMA |
| 9 | Side Obstacle Detection Control Module X (SODx) |
| 10 | CCM |
| 11 | Door/liftgate ajar switches |
| 12 | Hood ajar switch |
| 13 | BCM |
| 14 | SOBDM |
| 15 | BECM |
| 16 | PACM |
| 17 | RCM |
| 18 | Front/rear seatbelt buckle switches |
| 19 | SCCM |
| 20 | RH steering wheel switch |
| 21 | GSM |
| 22 | HVAC module |
| 23 | TRM |
| 24 | DSM |
| 25 | APIM |
| 26 | ACM |
| 27 | HUD module |
| 28 | GWM |
| 29 | Fuel pump and sender unit |
| 30 | IPC |
| 31 | Message center display |
