Instrument Panel Cluster (IPC): Overview
Instrument Panel Cluster (IPC) - Overview
Overview
The IPC uses the following methods and functionality to alert the driver of vehicle conditions:
- gauges
- informational indicators
- warning indicators
- warning messages
- warning chimes
The 8-inch display IPC uses a single centered 8-inch screen to display driver information with analog gauges.
The 12-inch IPC uses a full width 12-inch screen to display driver information with virtual gauges.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
IPCRTT indicators replace the typical informational or warning indicator, using the same graphical representation. The message center displays RTT indicators in both fixed locations and in a rotating display where they are turned on in the order the request was received by the IPC.

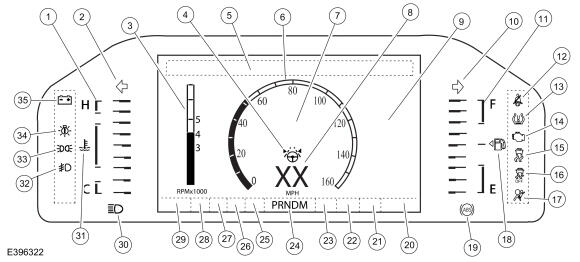

Instrument Cluster - 8-Inch Display
| Item | Description |
|---|---|
| 1 | Engine temperature gauge |
| 2 | LH turn indicator |
| 3 | Virtual tachometer (shown) Virtual power gauge (HEV) |
| 4 | Rotating Reconfigurable Telltales (RTTs) Cruise control/adaptive cruise control Lane keeping system Lane centering aid |
| 5 | Compass or far navigation Rotating Reconfigurable Telltales (RTTs) BLIS off Brake Door ajar Electric park brake Engine oil pressure Engineering Test (ET) mode Forward collision warning Hill start assist Hood ajar Liftgate ajar Low windshield washer fluid Powertrain malfunction (wrench) Ready (HEV) |
| 6 | Virtual speedometer |
| 7 | Main message center display area |
| 8 | Digital speedometer display |
| 9 | Information-on-demand display area |
| 10 | RH turn indicator |
| 11 | Fuel gauge |
| 12 | Seatbelt warning indicator |
| 13 | TPMS indicator |
| 14 | MIL (check engine) |
| 15 | Stability-traction control indicator (sliding car icon) |
| 16 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 17 | Airbag warning indicator |
| 18 | Low fuel warning indicator |
| 19 | ABS indicator |
| 20 | DTE display (gas) Battery charge display (HEV) |
| 21 | Auto hold RTT indicator |
| 22 | Auto stop/start RTT indicator |
| 23 | SelectShift® RTT indicator |
| 24 | PRNDM display |
| 25 | Selectable drive mode RTT indicator (Normal, Eco, Sport, Slippery, Sand, Mud/Ruts, Tow Haul) |
| 26 | Frost warning RTT indicator |
| 27 | Outside air temperature display |
| 28 | Auto high beam RTT indicator |
| 29 | Odometer display area |
| 30 | High beam indicator |
| 31 | Engine over-temperature warning indicator |
| 32 | Front fog lamp indicator |
| 33 | Lights on indicator |
| 34 | LED low beam malfunction indicator |
| 35 | Charging system warning indicator (12-volt) |

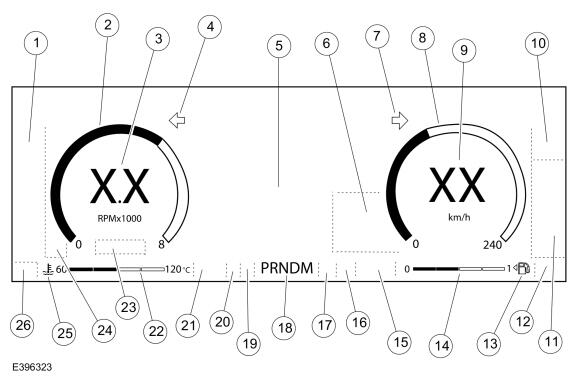

IPC - 12-Inch Display
| Item | Description |
|---|---|
| 1 | Fixed Reconfigurable Telltales (RTTs) Airbag warning LED low beam malfunction TPMS Stability-traction control (sliding car icon) Stability-traction control OFF (sliding car OFF icon) Forward collision warning (pre-collision assist) MIL (check engine) Auto high beam High beam |
| 2 | Virtual tachometer (gas) Virtual power gauge (HEV) |
| 3 | Digital tachometer display |
| 4 | LH turn RTT indicator |
| 5 | Main nessage center display area |
| 6 | Adaptive cruise control/cruise control RTT indicator Overspeed warning (Gulf Cooperative Countries [GCC]) Speed limit sign RTT indicator |
| 7 | RH turn RTT indicator |
| 8 | Virtual speedometer |
| 9 | Digital speedometer display |
| 10 | Rotating RTT indicators: BLIS off Charging system (12-volt battery) Door, hood, liftgate ajar Engineering Test (ET) mode Low engine oil pressure Low fuel warning (when calm screen is selected) Low washer fluid Powertrain malfunction (wrench) Pre-collision assist off HEV system fault (HEV) Vehicle plugged in (PHEV) |
| 11 | Fixed RTT indicators Electric park brake Auto hold Brake warning ABS warning Seatbelt warning Frost warning |
| 12 | Outside air temperature display |
| 13 | Low fuel warning |
| 14 | Virtual fuel gauge |
| 15 | DTE display (gas, shown) |
| 16 | Battery range display |
| 17 | SelectShift gear indication |
| 18 | PRNDM display |
| 19 | Lane keeping system RTT indicator Lane centering aid RTT indicator |
| 20 | Auto stop-start RTT indicator Electric Vehicle (EV) now RTT indicator (PHEV) Electric Vehicle (EV) later RTT indicator (PHEV) Electric Vehicle (EV) charge RTT indicator |
| 21 | Odometer display |
| 22 | Virtual engine temperature gauge |
| 23 | Ready (HEV) Drive modes (Normal, Eco, Sport, Slippery, Sand, Mud/Ruts, Town Haul) |
| 24 | Front fog lamps RTT indicator Lights on |
| 25 | Engine over-temperature RTT indicator |
| 26 | Compass display |
Message Center
The message center is an integral part of the IPC that receives and acts upon much of the same information that is input and used to operate the IPC (gauges, informational indicators, and warning indicators). The message center uses both hardwired and network-based inputs to receive information. The message center functionality is controlled through the message center switch (part of the RH steering wheel switch).
Whenever conditions are present that require a warning message, the message center replaces the last selected display with the new warning display. Once the message is reset or cleared, the message center returns to the last selected display. If multiple warnings are present, the message center rotates through the messages, displaying each warning for approximately 4 seconds. Warning messages are also generally associated with other observable outputs of the IPC (gauges, informational indicators and Reconfigurable Telltales [RTTs]). For example, when the ABS module detects a low brake fluid condition, the ABS module sends the IPC a request through the GWM to illuminate the brake warning indicator and a request to display the LOW BRAKE FLUID message in the message center. This allows the message center to be a more informative supplement to the IPC gauges and indicators.
The system warning messages alert the operator to possible concerns or malfunctions in the vehicle operating systems. System warning messages can be stand-alone messages, but are often associated with another form of indication, such as a gauge or an indicator. The message center displays the last selected feature if there are no additional warning messages. Once a warning message has been displayed, the message must be acknowledged to allow full functionality of the message center by pressing the OK button to acknowledge and clear the warning message. For a complete list of warning messages displayed, refer to the message center section of the Owner's Literature.
Warning Chimes
The warning chimes provide the driver with audible warnings that act as reminders and supplemental alerts to visual IPC indications such as gauges, indicators and message center warnings. The IPC controls all warning chimes based on messages received from external modules. The IPC prioritizes the chimes according to a preset hierarchy programmed into the IPC software. When more than one chime request is received by the IPC, the most important chime sounds. If a lower priority chime is currently sounding, the higher priority request takes over and replaces or delays the lower priority chime.
The warning chimes are sounded through the audio system speakers and the IPC. The turn signal/hazard on (tick-tock) is the only individual chime that sounds through the IPC, not the audio system. The parking aid, lifgate warning and BLIS / CTA warning chimes are sounded through the rear speakers. All other warning chimes are sounded through the front audio system speakers.
The IPC also acts as a backup. In the event of an audio system chime failure, the IPC sounds all chimes that are required.
