Instrumentation, Message Center And Warning Chimes (Description & Operation)
>>
Description And Operation
>>
Head Up Display (HUD)
>>

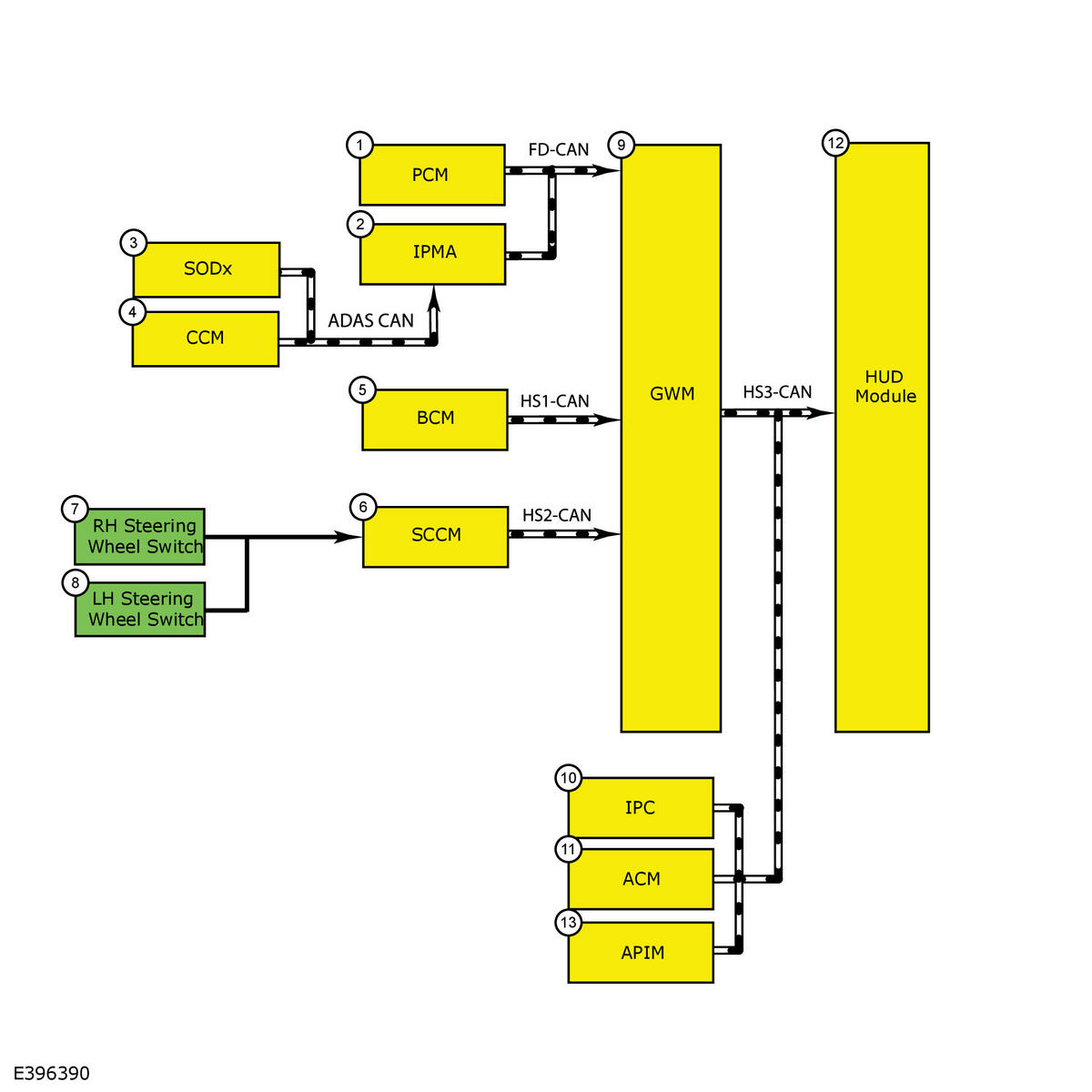

System Diagram
System Diagram
Courtesy of FORD MOTOR COMPANY
Item
Description
1
PCM
2
IPMA
3
Side Obstacle Detection Control Module X (SODx)
4
CCM
5
BCM
6
SCCM
7
RH steering wheel switch
8
LH steering wheel switch
9
GWM
10
IPC
11
ACM
12
HUD module
13
APIM
