C Clutch
WARNING: This page is about a different variant/trim than selected.

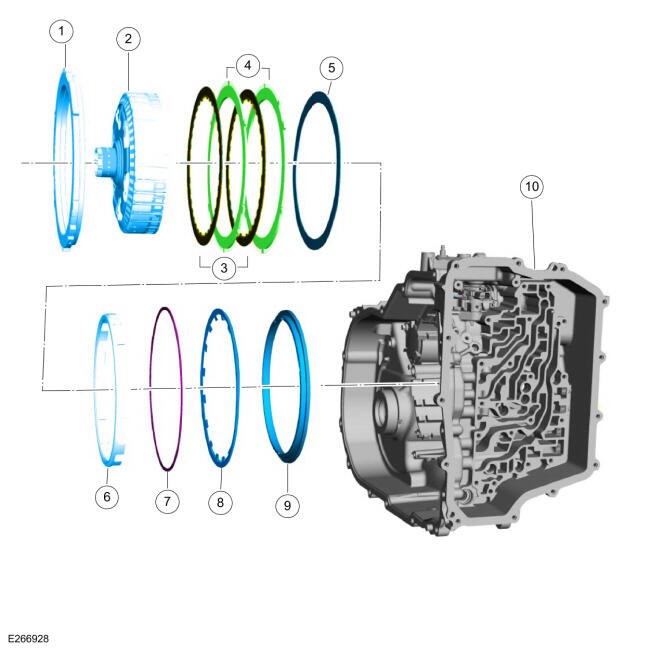

C Clutch Exploded View
| Item | Description |
|---|---|
| 1 | C (3, 7) clutch pressure plate |
| 2 | Sunshell |
| 3 | C (3, 7) clutch friction plates |
| 4 | C (3, 7) clutch steel plates |
| 5 | Wave spring |
| 6 | C (3, 7) clutch piston apply ring |
| 7 | Snap ring |
| 8 | C (3, 7) clutch piston return spring |
| 9 | C (3, 7) clutch piston |
| 10 | Transmission case |

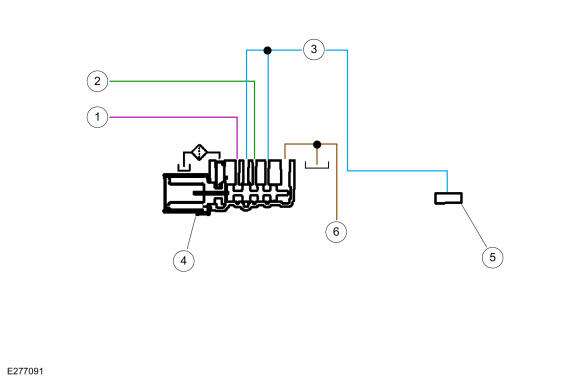

C Clutch Hydraulic Circuits
| Item | Description |
|---|---|
| 1 | Line pressure |
| 2 | Clutch exhaust |
| 3 | C (3, 7) clutch control |
| 4 | SSC /control valve |
| 5 | Mechanical C (3, 7) clutch |
| 6 | Elevated exhaust |
C Clutch Hydraulic Operation
Line pressure is supplied to the C (3, 7) clutch control valve. As SSC turns on, it moves the C (3, 7) clutch control valve allowing regulated line pressure to flow to the mechanical C (3, 7) clutch.
