Transmission Fluid Cooler Coolant Control Valve: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers - 2.5L Duratec - Hybrid (121kW/164PS) (BG), 2.5L Duratec - Hybrid (FHEV 148kW/201PS, PHEV 165kW/225PS) (BG)).

2. Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

   WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.

   Loosen the pressure relief cap.

   Courtesy of FORD MOTOR COMPANY

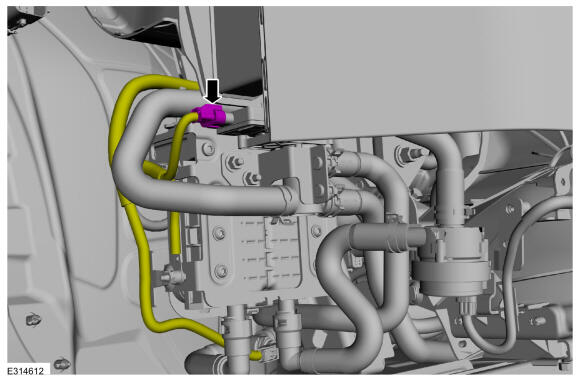

3. Disconnect the coolant control valve electrical connector.

   Courtesy of FORD MOTOR COMPANY

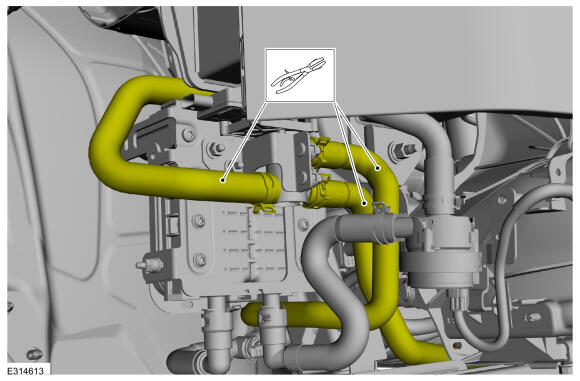

4. Clamp off the coolant control valve hoses.Use the General Equipment: Hose Clamp (s)

   Courtesy of FORD MOTOR COMPANY

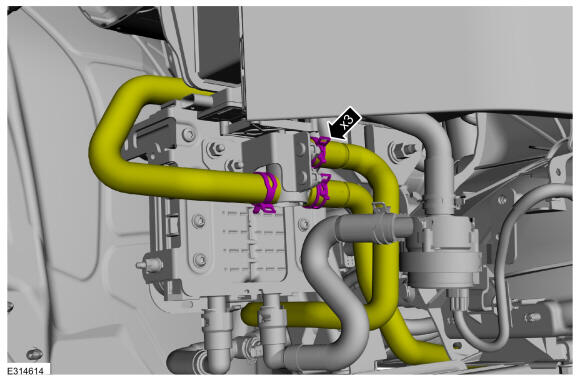

5. Release the clamps and disconnect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

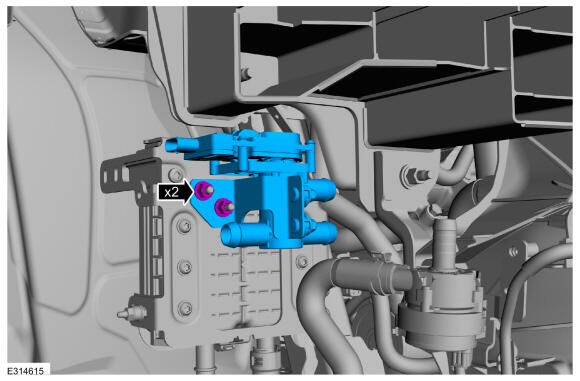

6. Remove the nuts and the transmission fluid cooler control valve.

   Torque

   : 10.5 Nm
