Thermostat Housing: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

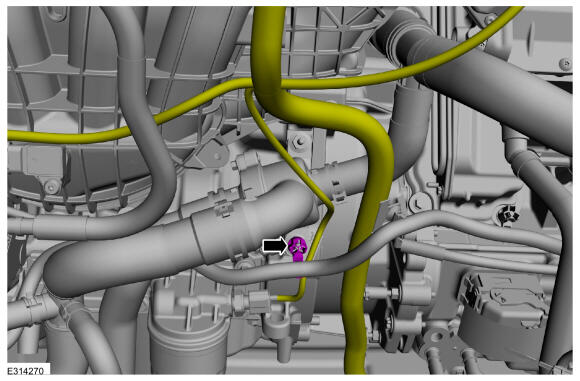

- Detach the electrical wiring harness retainer.

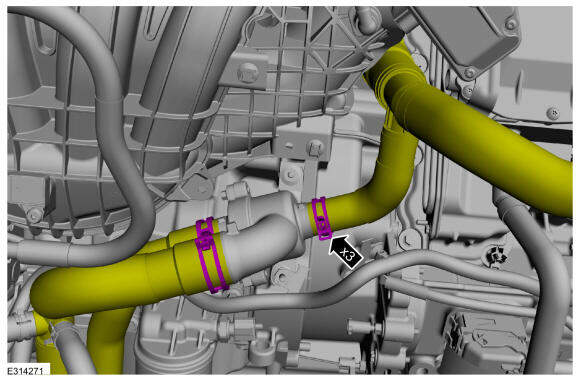

- Release the clamps and disconnect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer

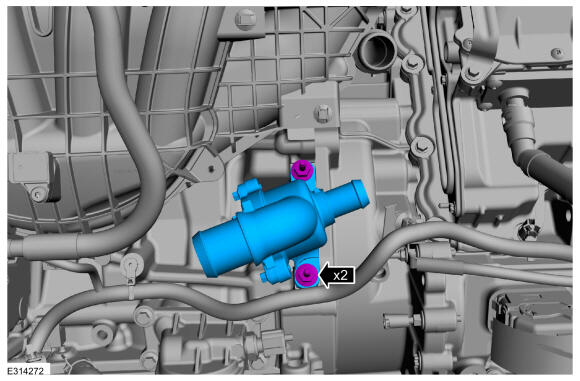

- Remove the studbolt and the thermostat housing.
Torque
: 47.5 Nm
