Removal And Installation: Radiator: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the condenser outlet line. Refer to: Condenser Outlet Line - 2.5L Duratec - Hybrid (121kW/164PS) (BG) .
  2. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  3. Drain the electric powertrain cooling system. Refer to: Cooling System Filling and Bleeding (303-03 Electric Powertrain Cooling - 2.5L Duratec - Hybrid (121kW/164PS) (BG), 2.5L Duratec - Hybrid (FHEV 148kW/201PS, PHEV 165kW/225PS) (BG)).
  4. Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

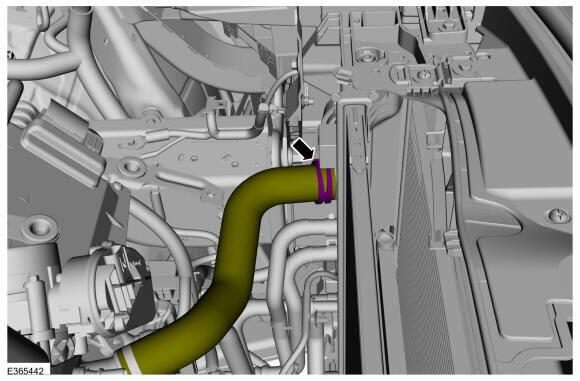

  5. Release the clamp and disconnect the upper radiator hose.Use the General Equipment: Hose Clamp Remover/Installer
    GFD828401Courtesy of FORD MOTOR COMPANY
  6. Remove the transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes - Full Hybrid Electric Vehicle (FHEV) .
  7. Release the clamp and disconnect the radiator vent hose.Use the General Equipment: Hose Clamp Remover/Installer

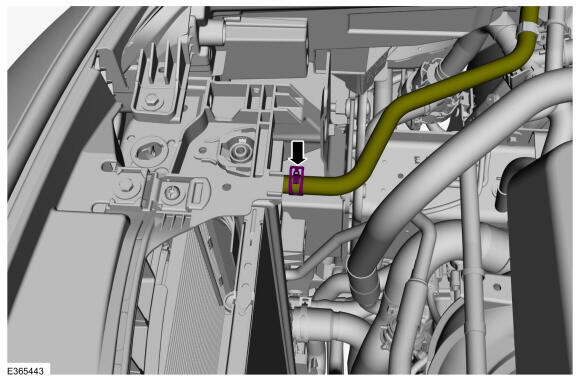

    GFD828402Courtesy of FORD MOTOR COMPANY
  8. Remove A/C compressor outlet line. Refer to: Air Conditioning (A/C) Compressor Outlet Line - 2.5L Duratec - Hybrid (121kW/164PS) (BG) .
  9. NOTE: Make sure to cover any open ports to prevent debris from entering the system.

    Remove the nut and disconnect the A/C compressor inlet line from the A/C compressor.

    Torque

    : 18 Nm

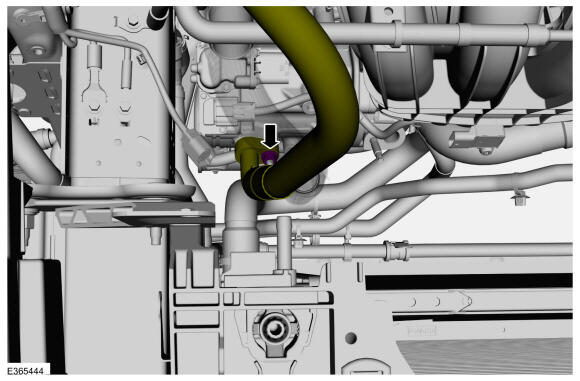

    GFD828403Courtesy of FORD MOTOR COMPANY
    • Release the clamp and disconnect the lower radiator hose.Use the General Equipment: Hose Clamp Remover/Installer

    • Disconnect the quick connect hose coupling.

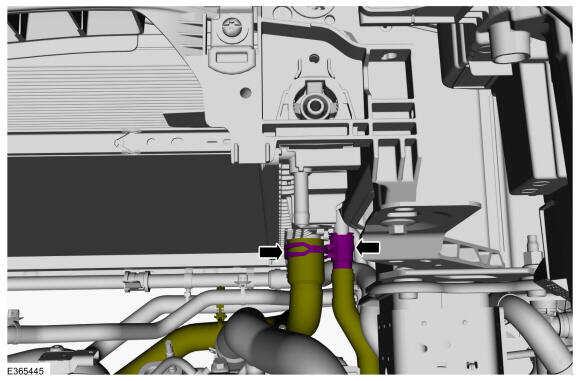

    GFD828404Courtesy of FORD MOTOR COMPANY

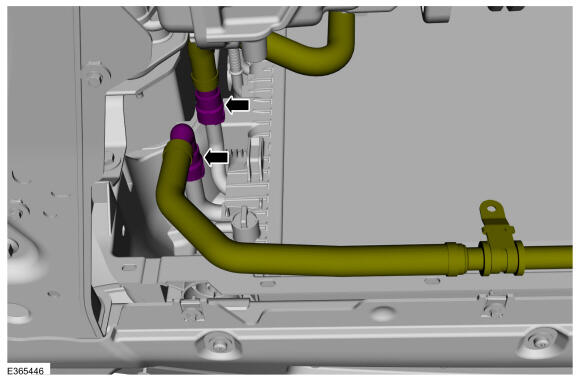

  11. Disconnect the quick connect hose couplings.
    GFD828405Courtesy of FORD MOTOR COMPANY
  12. Remove the coolant pump. Refer to: Coolant Pump .
  13. Disconnect the quick connect hose coupling.

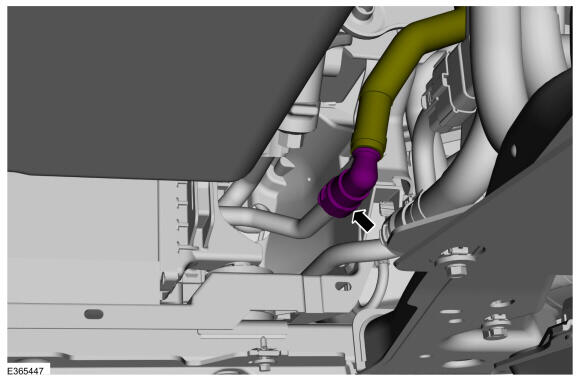

    GFD828406Courtesy of FORD MOTOR COMPANY
  14. NOTE: Take extra care not to damage the clips.

    Remove the clips, the radiator support upper insulator frames and the isolators.

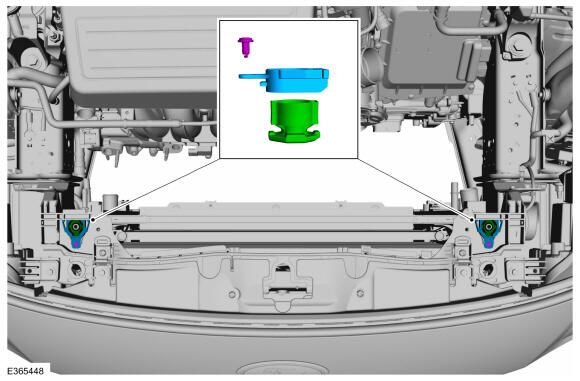

    GFD828407Courtesy of FORD MOTOR COMPANY
  15. NOTE: Take extra care not to damage the component.
    NOTE: All components are not shown for clarity.

    1. Lift the radiator out of the insulators.
    2. Remove the radiator, A/C condenser, transmission oil cooler and auxiliary radiators assembly from below the vehicle.

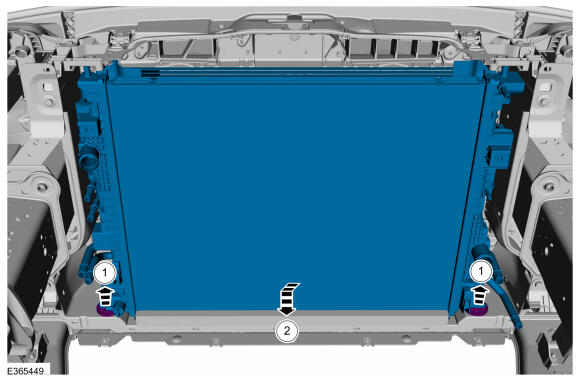

    GFD828408Courtesy of FORD MOTOR COMPANY
    • Release the tabs and remove the A/C condenser.

    • Remove the bolts and the high voltage battery radiator.

      Torque

      : 8 Nm

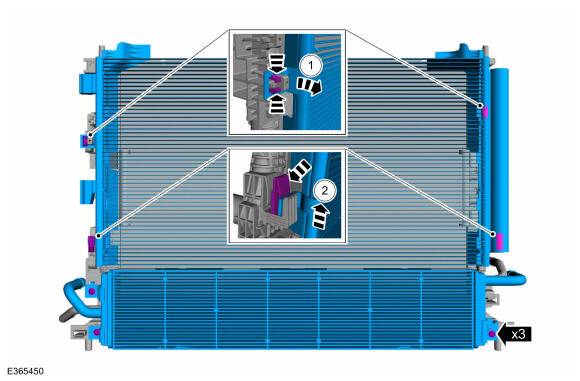

    GFD828409Courtesy of FORD MOTOR COMPANY
  17. Release the tabs and remove the transmission oil cooler.
    GFD828410Courtesy of FORD MOTOR COMPANY

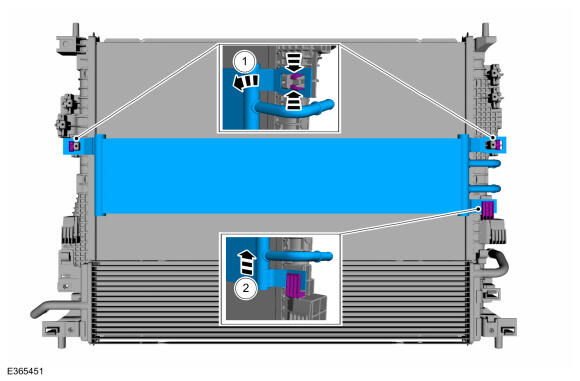

  18. Release the tabs and remove the electric motor electronics radiator.

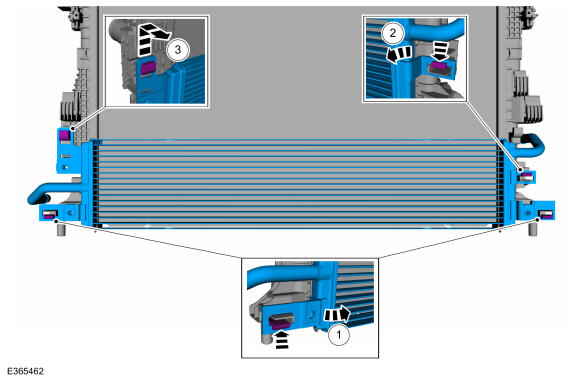

GFD828411Courtesy of FORD MOTOR COMPANY
