Heater Hoses: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the cowl panel grille. Refer to: Cowl Panel Grille .

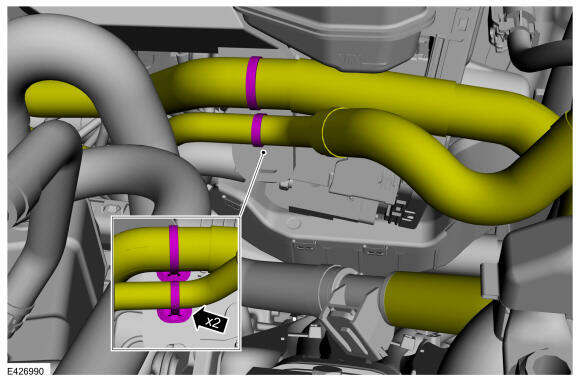

- Release the clamp and disconnect the coolant hose.Use the General Equipment: Hose Clamp Remover/Installer

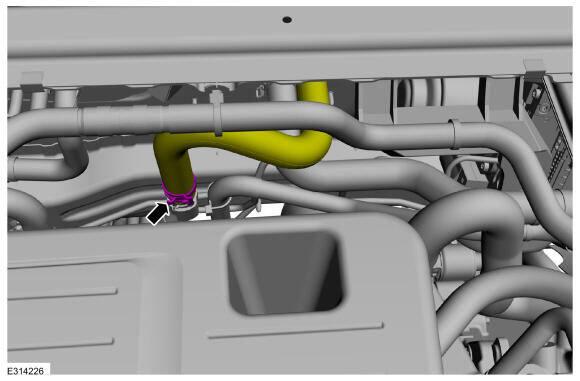

- Release the clamp and disconnect the coolant hose.Use the General Equipment: Hose Clamp Remover/Installer

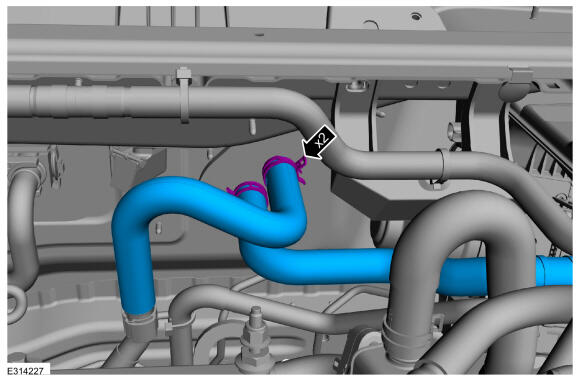

- Detach the retainers and position the heater hoses aside.

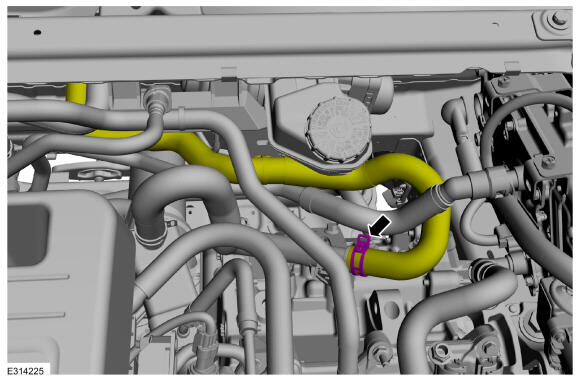

- Release the clamps and remove the heater hoses.Use the General Equipment: Hose Clamp Remover/Installer
