Cooling Fan Motor and Shroud: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the air cleaner intake pipe. Refer to: Air Cleaner Intake Pipe .

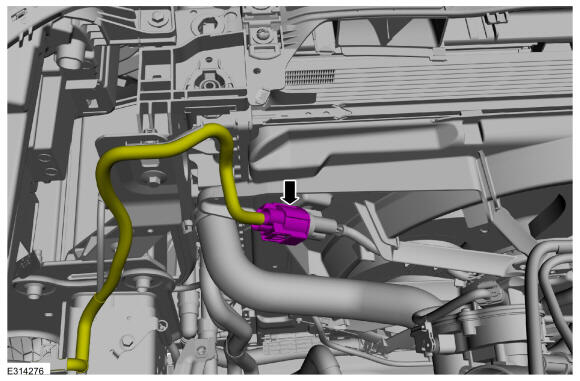

  3. Disconnect the cooling fan electrical connector.
    GFD828372Courtesy of FORD MOTOR COMPANY
  4. Detach the transmission oil cooler hoses retainer.
    GFD828373Courtesy of FORD MOTOR COMPANY
  5. Detach the wiring harness retainers.
    GFD828374Courtesy of FORD MOTOR COMPANY
  6. NOTE: All components are not shown for clarity.

    Detach the wiring harness retainers.

    GFD828375Courtesy of FORD MOTOR COMPANY
  7. Remove the retainers and detach the auxiliary radiator coolant hose.

    Torque

    : 4.1 Nm

    GFD828376Courtesy of FORD MOTOR COMPANY

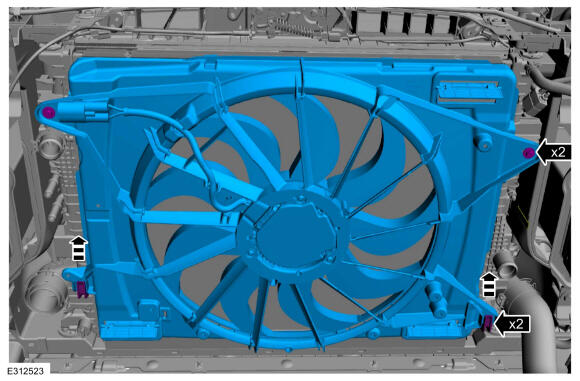

  8. Remove the bolts, release the tabs and remove the cooling fan motor and shroud.

    Torque

    : 8 Nm

GFD828273Courtesy of FORD MOTOR COMPANY
