Engine Cooling - Component Location
NOTE:
Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38deg. C (100deg. F). Red arrows indicate a temperature over 90deg. C (194deg. F), Orange arrows indicate a temperature of approximately 90deg. C (194deg. F), Blue arrows indicate a temperature below 90deg. C (194deg. F).

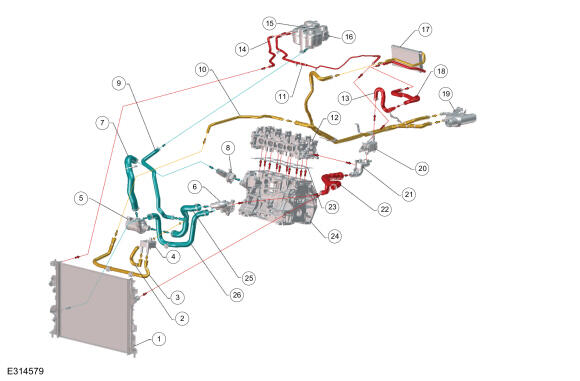

FHEV
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Engine oil cooler outlet hose |
| 3 | Engine oil cooler inlet hose |
| 4 | Engine oil cooler (If equipped) |
| 5 | Coolant pump |
| 6 | Thermostat housing |
| 7 | Coolant outlet hose |
| 8 | Coolant outlet assembly |
| 9 | Degas bottle-to-engine hose |
| 10 | Exhaust heat exchanger outlet to coolant pump inlet hose |
| 11 | Degas bottle hose connector |
| 12 | Cylinder head |
| 13 | EGR cooler outlet hose |
| 14 | Radiator overflow hose |
| 15 | Degas bottle cap |
| 16 | Degas bottle |
| 17 | Heater core |
| 18 | Heater core inlet hose |
| 19 | Exhaust heat exchanger |
| 20 | EGR cooler |
| 21 | Coolant outlet adapter |
| 22 | Upper radiator hose |
| 23 | Cylinder head gasket |
| 24 | Cylinder block |
| 25 | Coolant inlet hose |
| 26 | Lower radiator hose |

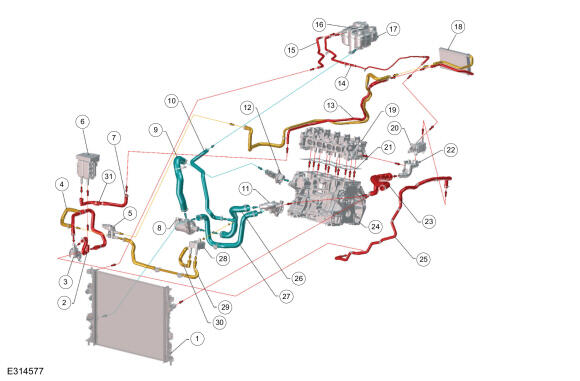

PHEV
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Cabin heater coolant pump outlet hose |
| 3 | Cabin heater coolant pump |
| 4 | Cabin heater coolant pump inlet hose |
| 5 | Transmission fluid cooler coolant control valve |
| 6 | Cabin coolant heater |
| 7 | Cabin coolant heater outlet hose |
| 8 | Coolant pump |
| 9 | Coolant outlet hose |
| 10 | Degas bottle-to-engine hose |
| 11 | Thermostat housing |
| 12 | Coolant outlet assembly |
| 13 | Heater hose assembly |
| 14 | Degas bottle hose connector |
| 15 | Radiator overflow hose |
| 16 | Degas bottle cap |
| 17 | Degas bottle |
| 18 | Heater core |
| 19 | Cylinder head |
| 20 | EGR cooler |
| 21 | Cylinder head gasket |
| 22 | Coolant outlet adapter |
| 23 | Upper radiator hose |
| 24 | Cylinder block |
| 25 | EGR cooler outlet hose. |
| 26 | Coolant inlet hose |
| 27 | Lower radiator hose |
| 28 | Engine oil cooler (If equipped) |
| 29 | Engine oil cooler inlet hose |
| 30 | Engine oil cooler outlet hose |
| 31 | Cabin heater coolant temperature sensor |
