Electric Motor Electronics Coolant Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Drain the electric powertrain cooling system. Refer to: Electric Powertrain Cooling System Draining, Filling and Bleeding  .
2. RH side only. Remove the fender splash shield. Refer to: Fender Splash Shield .

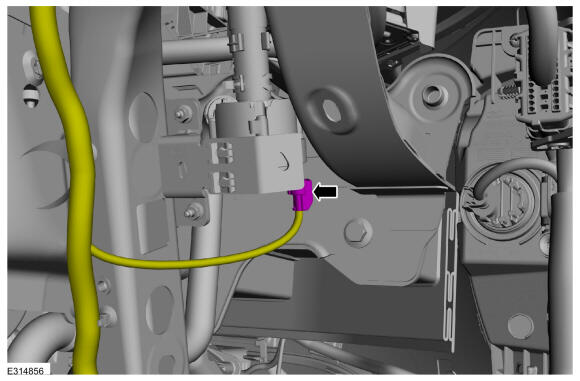

3. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

4. Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

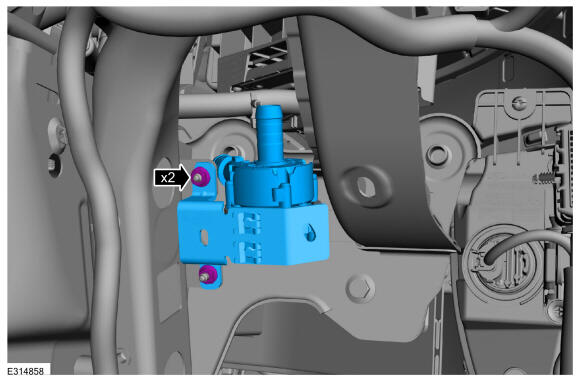

5. Remove the nuts and the electric motor electronics coolant pump.

   Torque

   : 10.5 Nm

Courtesy of FORD MOTOR COMPANY
