Electronic Engine Controls - 2.5L

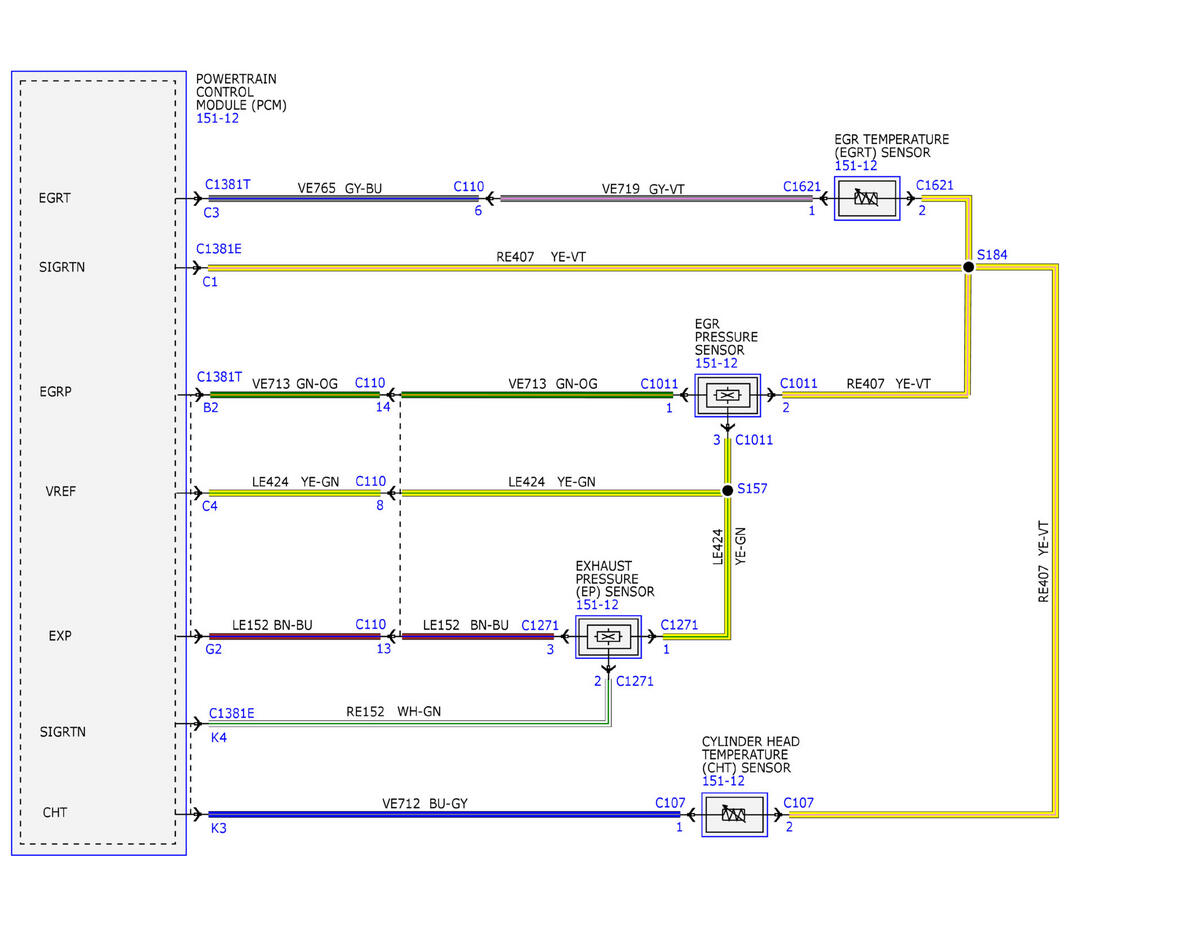

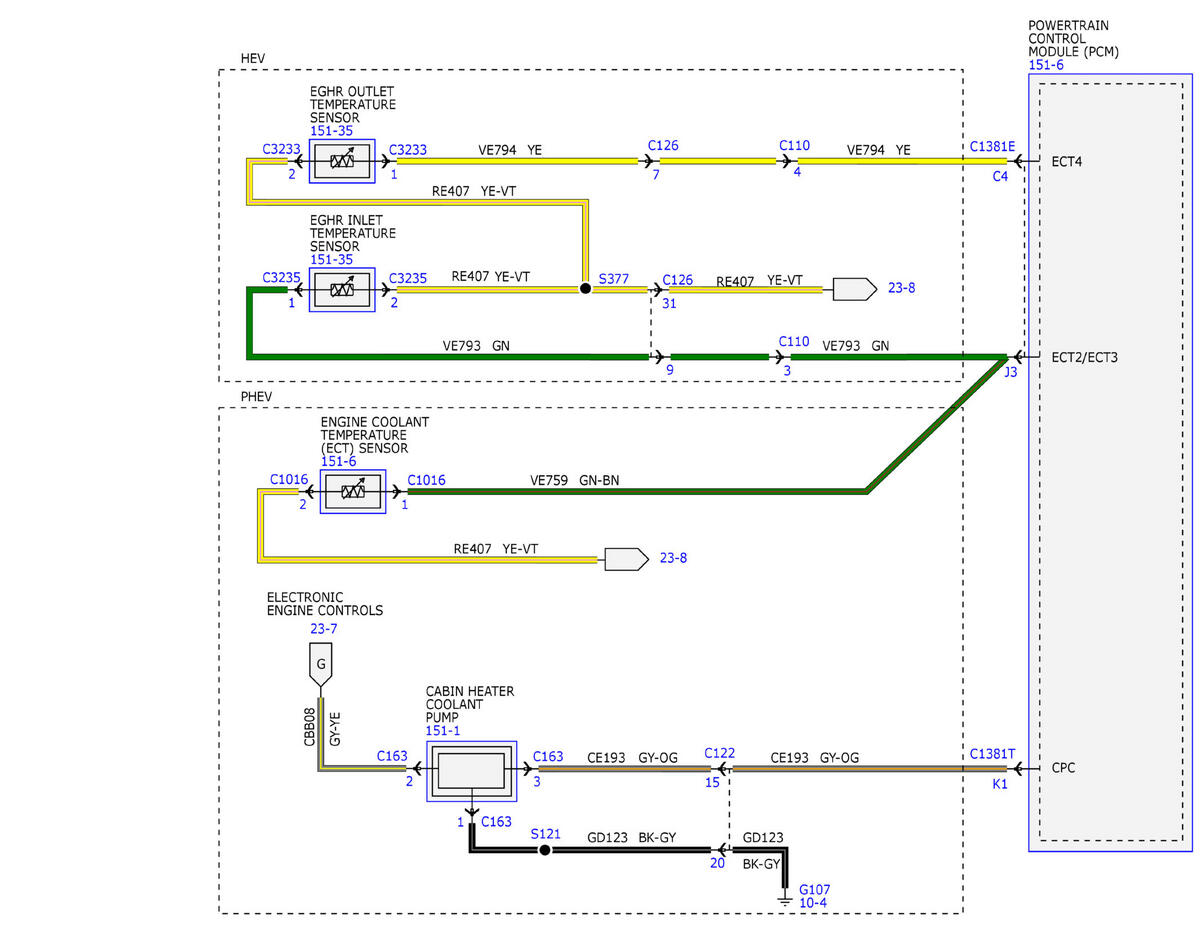

Fig 1: Electronic Engine Controls - 2.5L (1 Of 12)

Courtesy of FORD MOTOR COMPANY

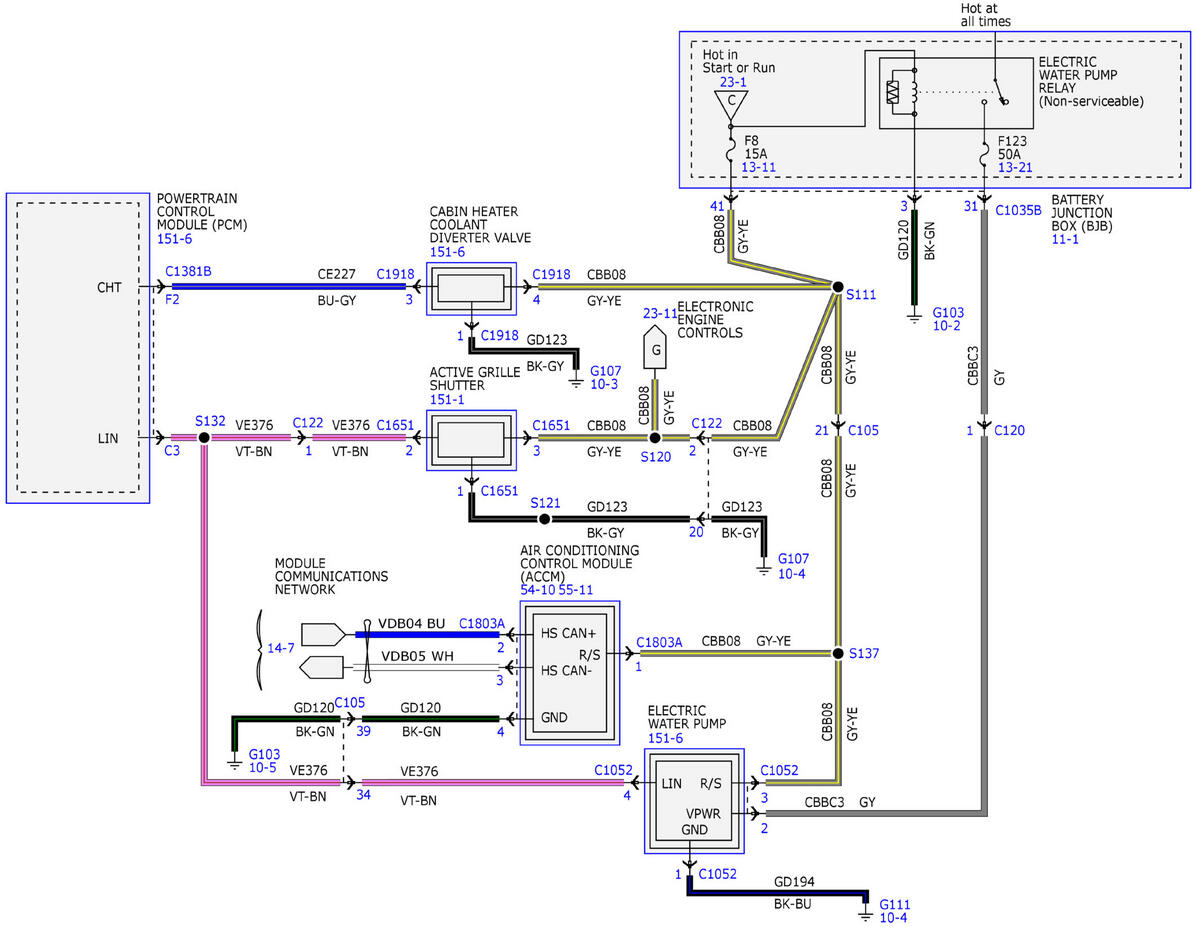

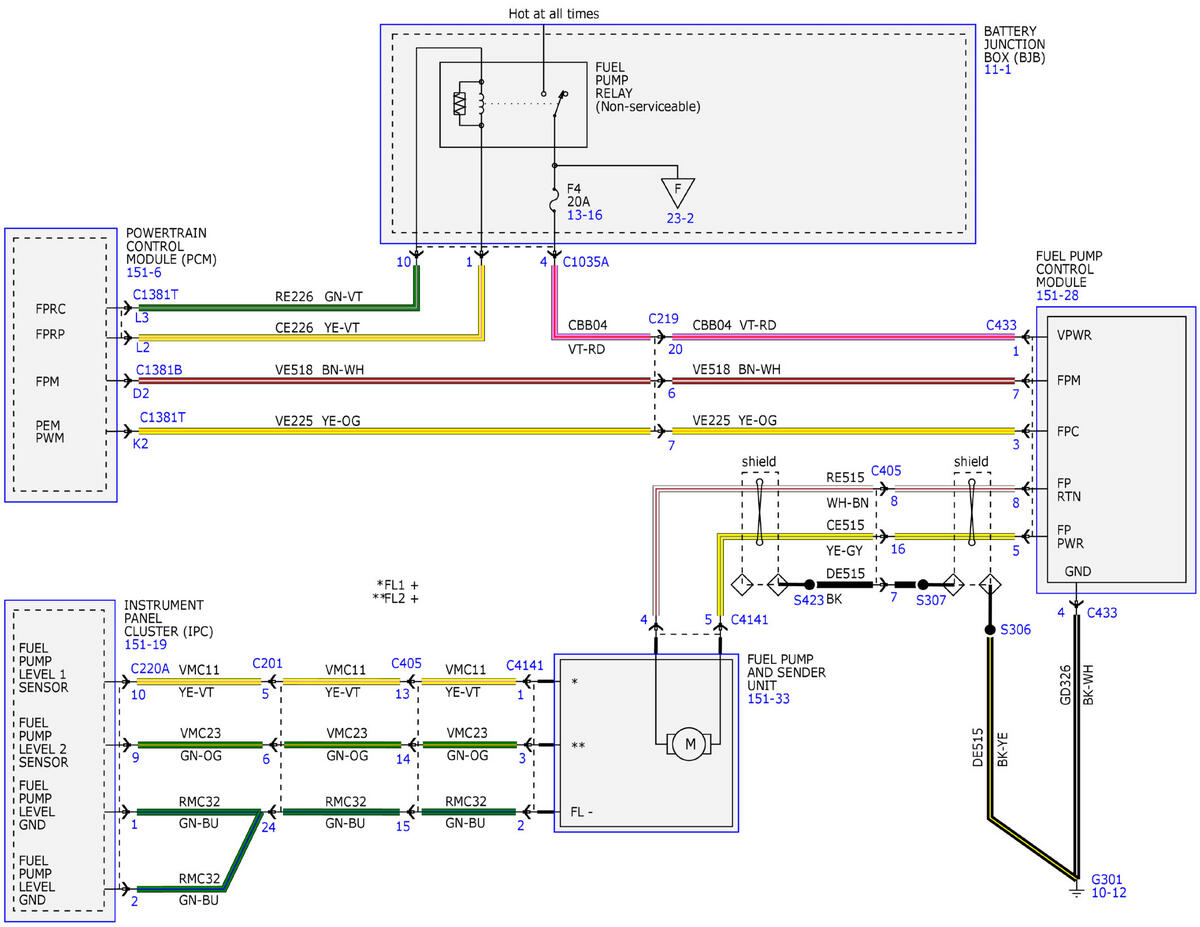

Fig 2: Electronic Engine Controls - 2.5L (2 Of 12)

Courtesy of FORD MOTOR COMPANY

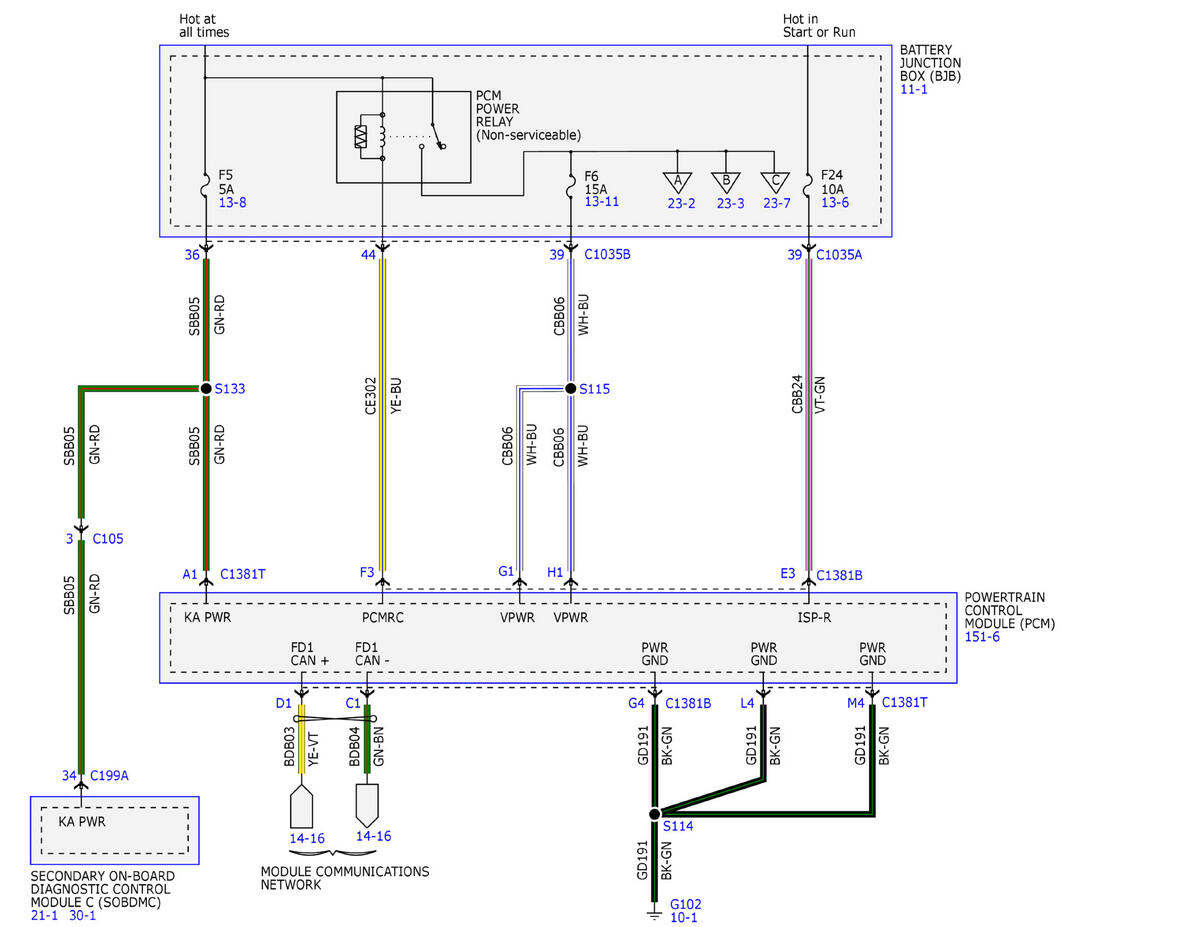

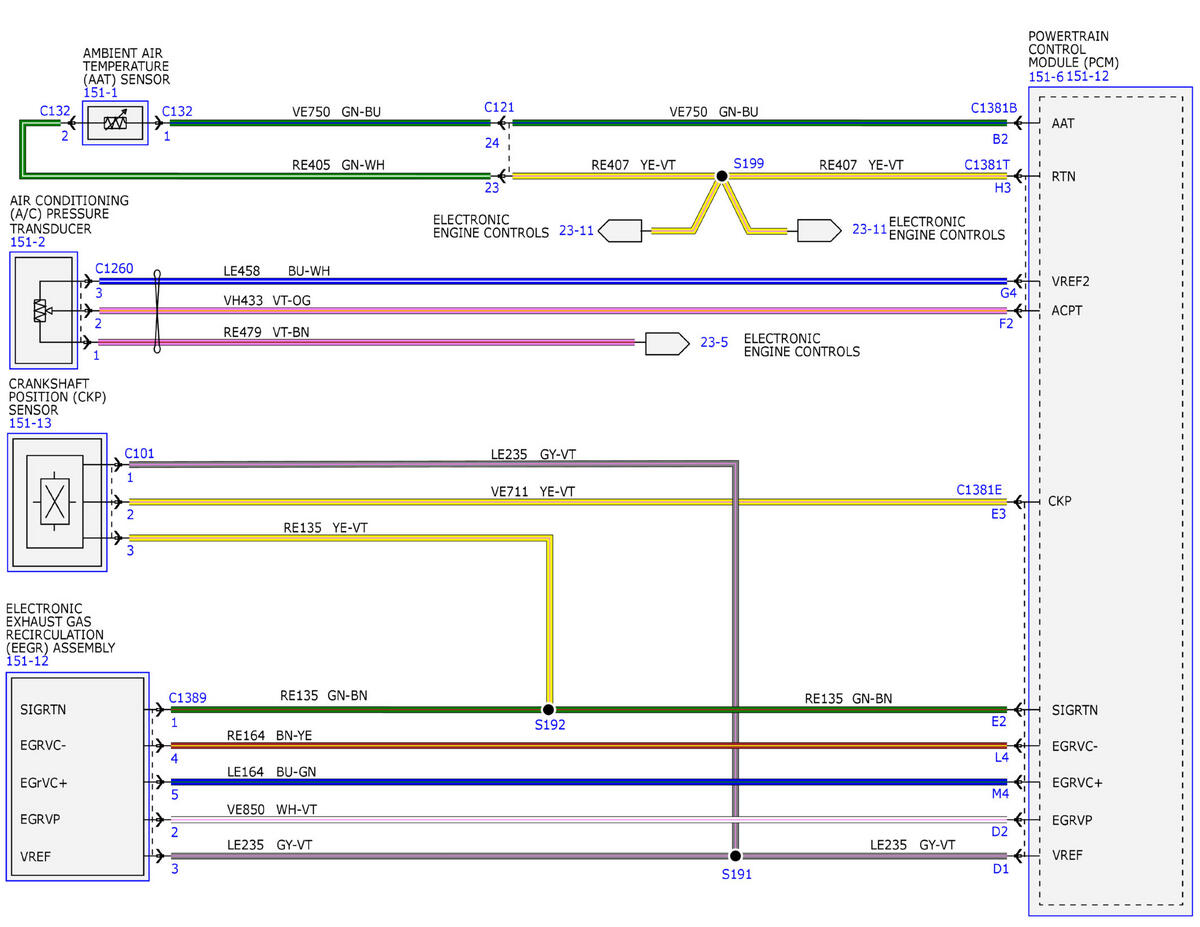

Fig 3: Electronic Engine Controls - 2.5L (3 Of 12)

Courtesy of FORD MOTOR COMPANY

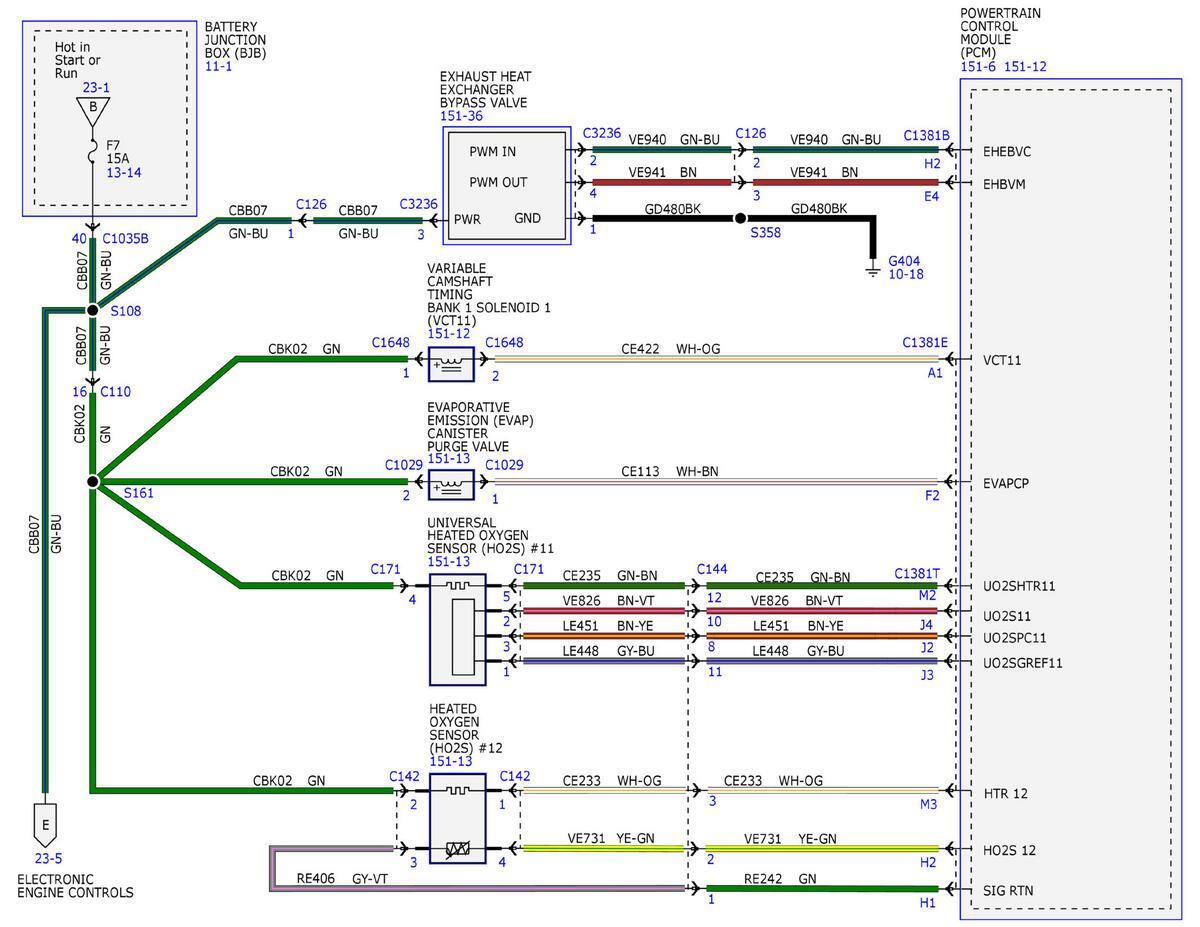

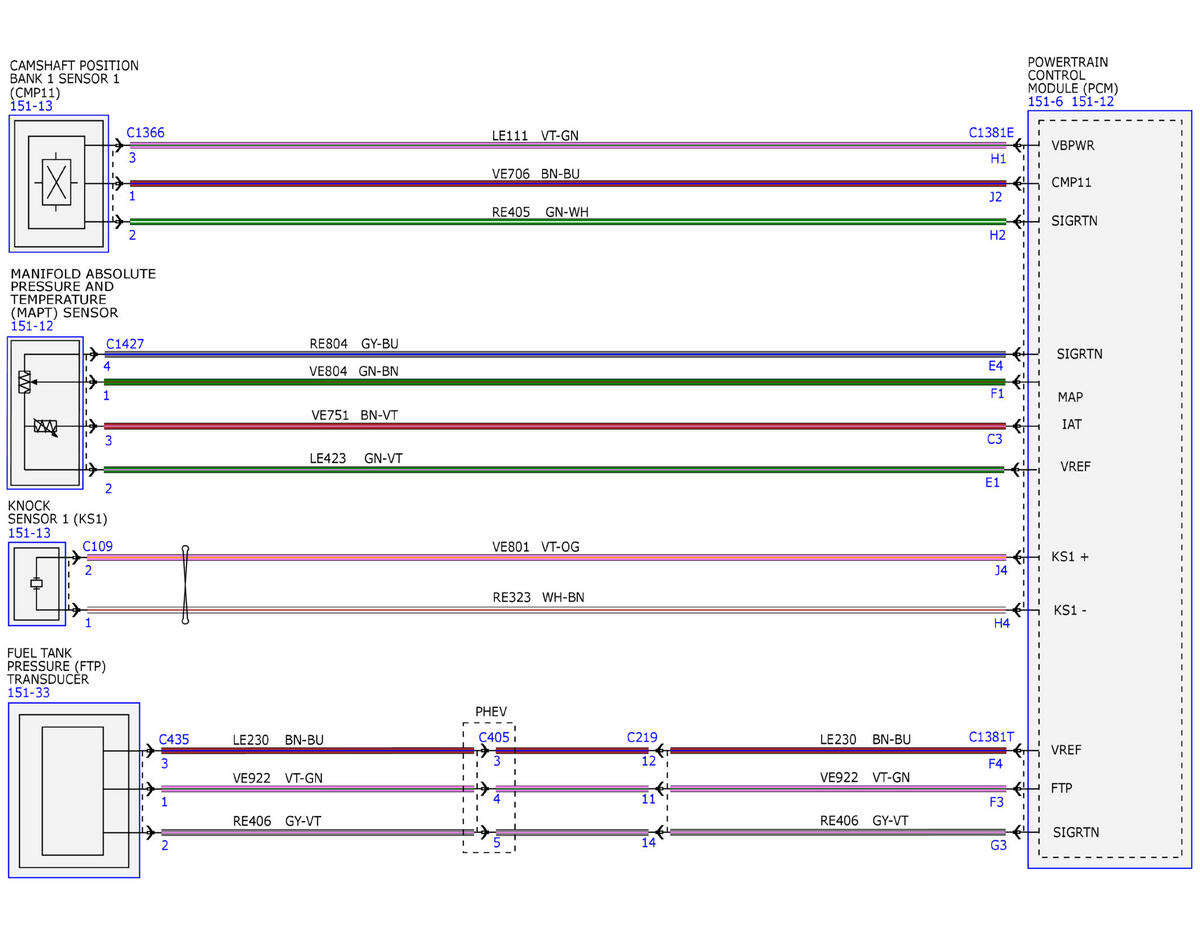

Fig 4: Electronic Engine Controls - 2.5L (4 Of 12)

Courtesy of FORD MOTOR COMPANY

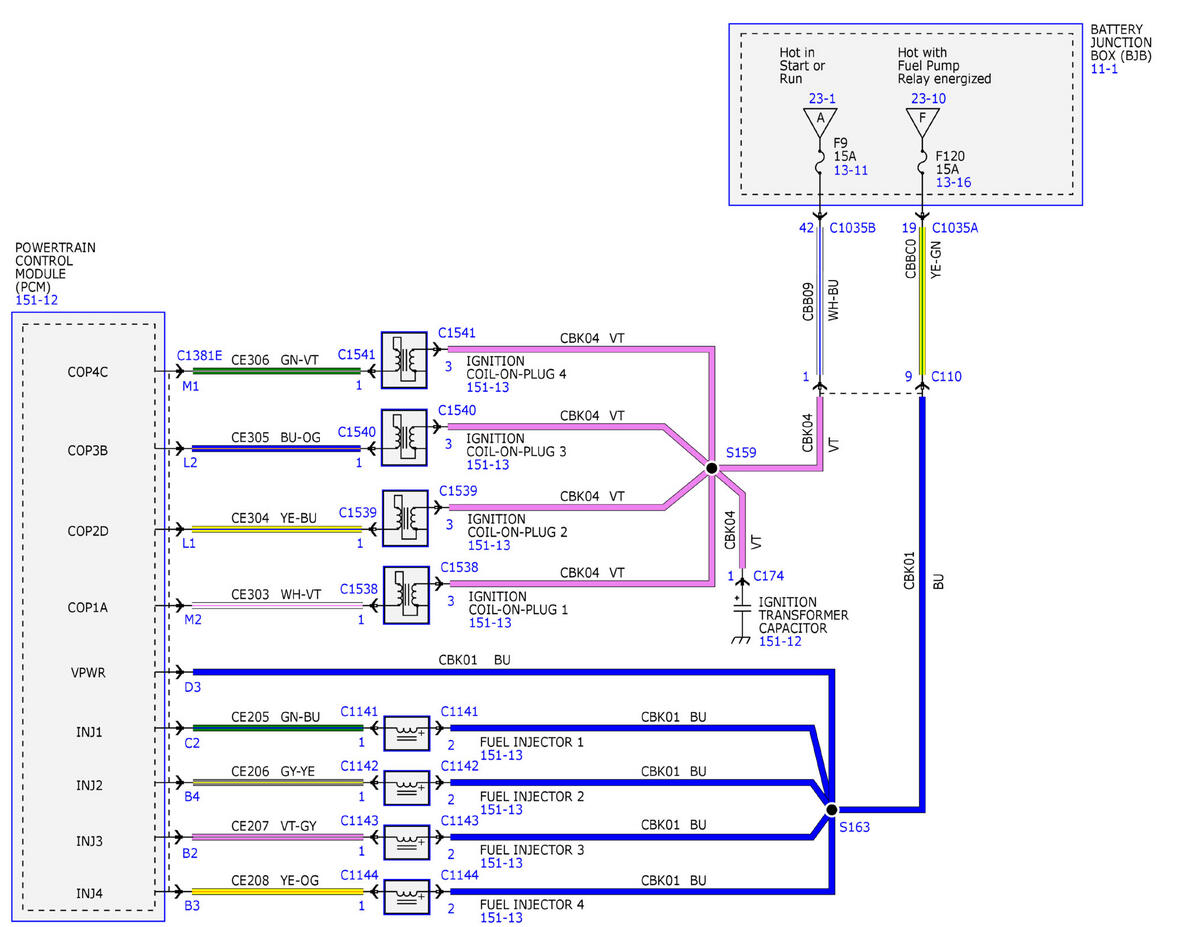

Fig 5: Electronic Engine Controls - 2.5L (5 Of 12)

Courtesy of FORD MOTOR COMPANY

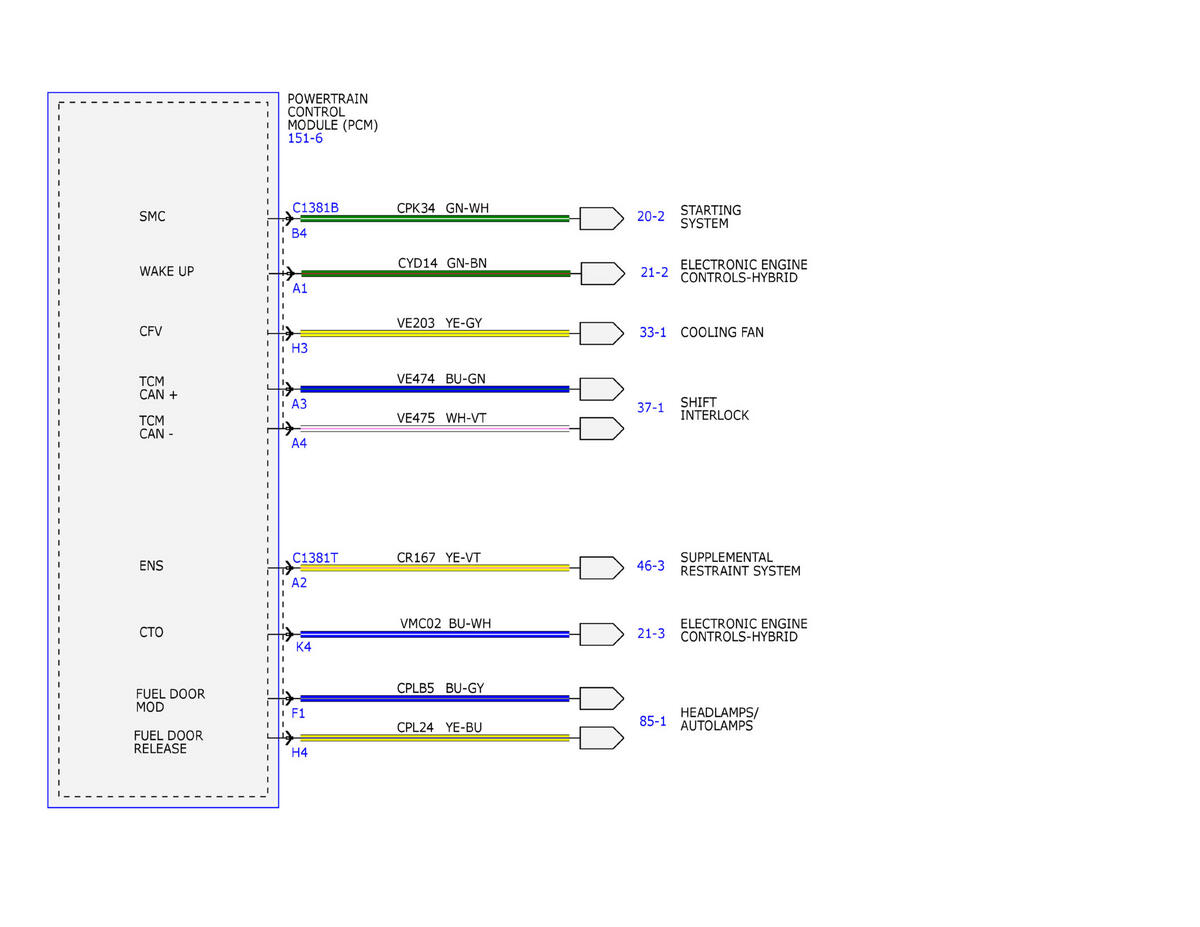

Fig 6: Electronic Engine Controls - 2.5L (6 Of 12)

Courtesy of FORD MOTOR COMPANY

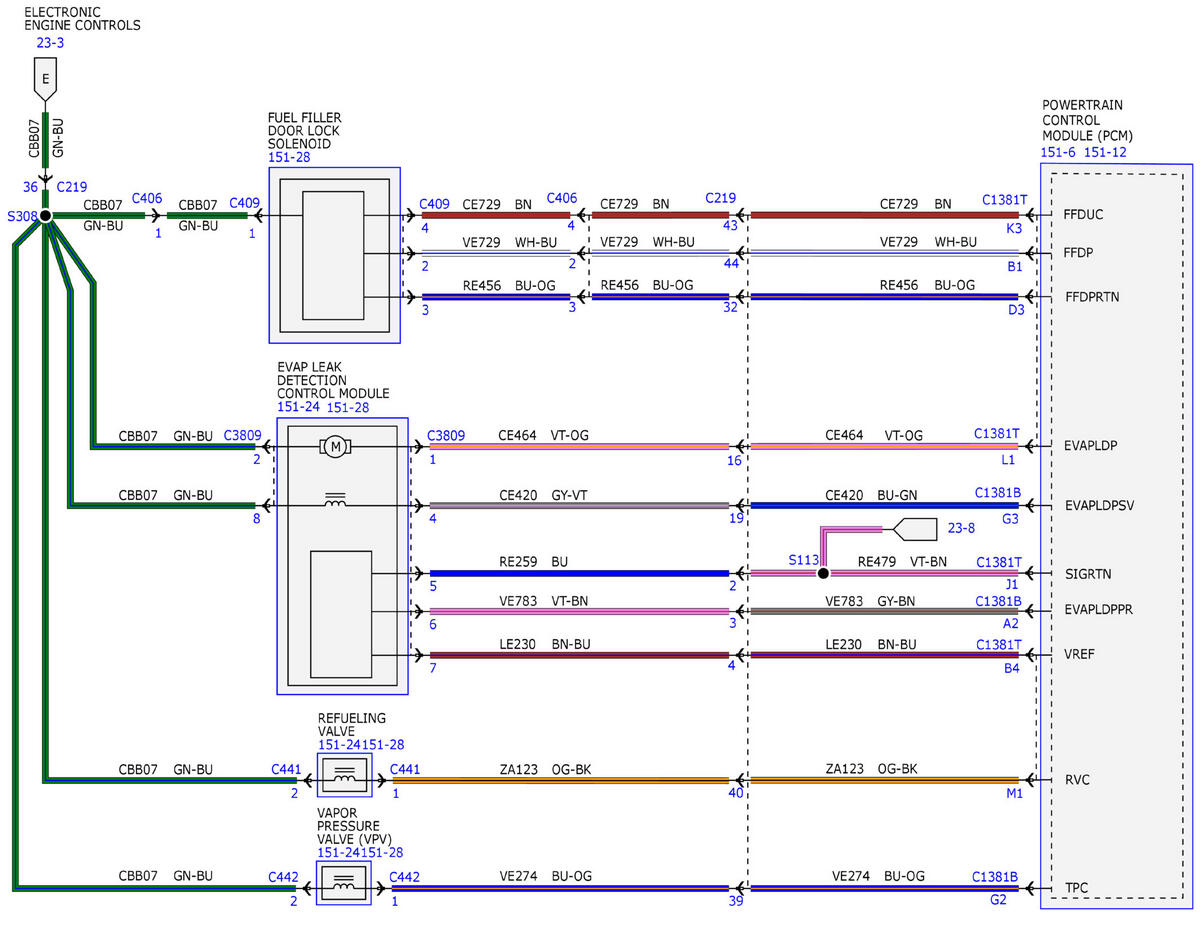

Fig 7: Electronic Engine Controls - 2.5L (7 Of 12)

Courtesy of FORD MOTOR COMPANY

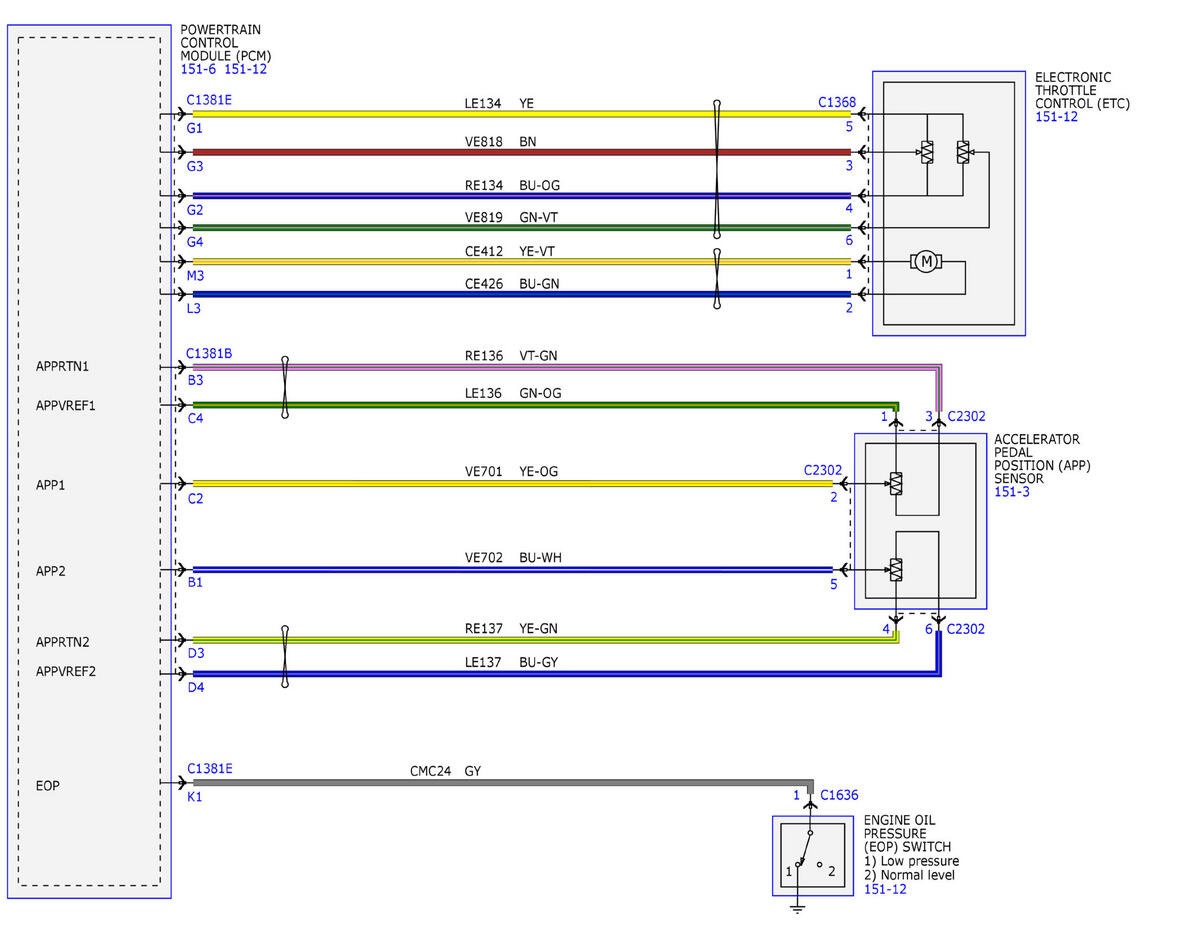

Fig 8: Electronic Engine Controls - 2.5L (8 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 2.5L (9 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 2.5L (10 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 2.5L (11 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 2.5L (12 Of 12)

Courtesy of FORD MOTOR COMPANY
