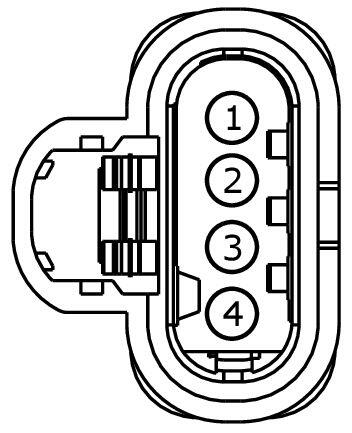

Connector End View C3236 - Exhaust Heat EXCHANGER Bypass Valve
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3236 | EXHAUST HEAT EXCHANGER BYPASS VALVE | 14300 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6W8T-14474-PA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD480 (BK) | 20 | GROUND - FRAME MIDDLE LEFT | 6W8T-14474-PA | ||||
| 2 | VE940 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # EXHAUST HEAT EXCHANGER BYPASS VALVE CONTROL 11 | 6W8T-14474-PA | ||||
| 3 | CBB07 (GN-BU) | 20 | FUSE - 7 OR CIRCUIT BREAKER | 6W8T-14474-PA | ||||
| 4 | VE941 (BN) | 20 | VALVE - EXHAUST HEAT EXCHANGER BYPASS VALVE MONITOR 11 | 6W8T-14474-PA | ||||

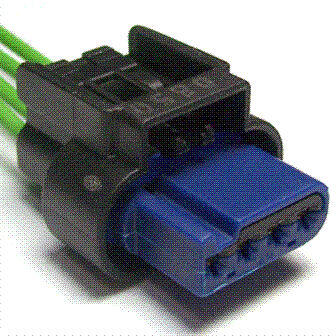

Available Pigtail Kits
Pigtail Kit Part Number
: WPT-1773
Service Part Number:
CU2Z-14S411-AYB
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
Motor - Active Grill Shutter Motor - Fuel Filler Door Motor - Intercooler Pump Sensor - Manifold Pressure/Intake Temperature Sensor - Particulate Filter Delta Pressure
