Connector End View C126 - Inline

Inline: Description Color Harness Base Part # Service Pigtail
C126 INLINE BK 1430014290 Not Available

MALE

Harness

14300

FEMALE

Harness

14290

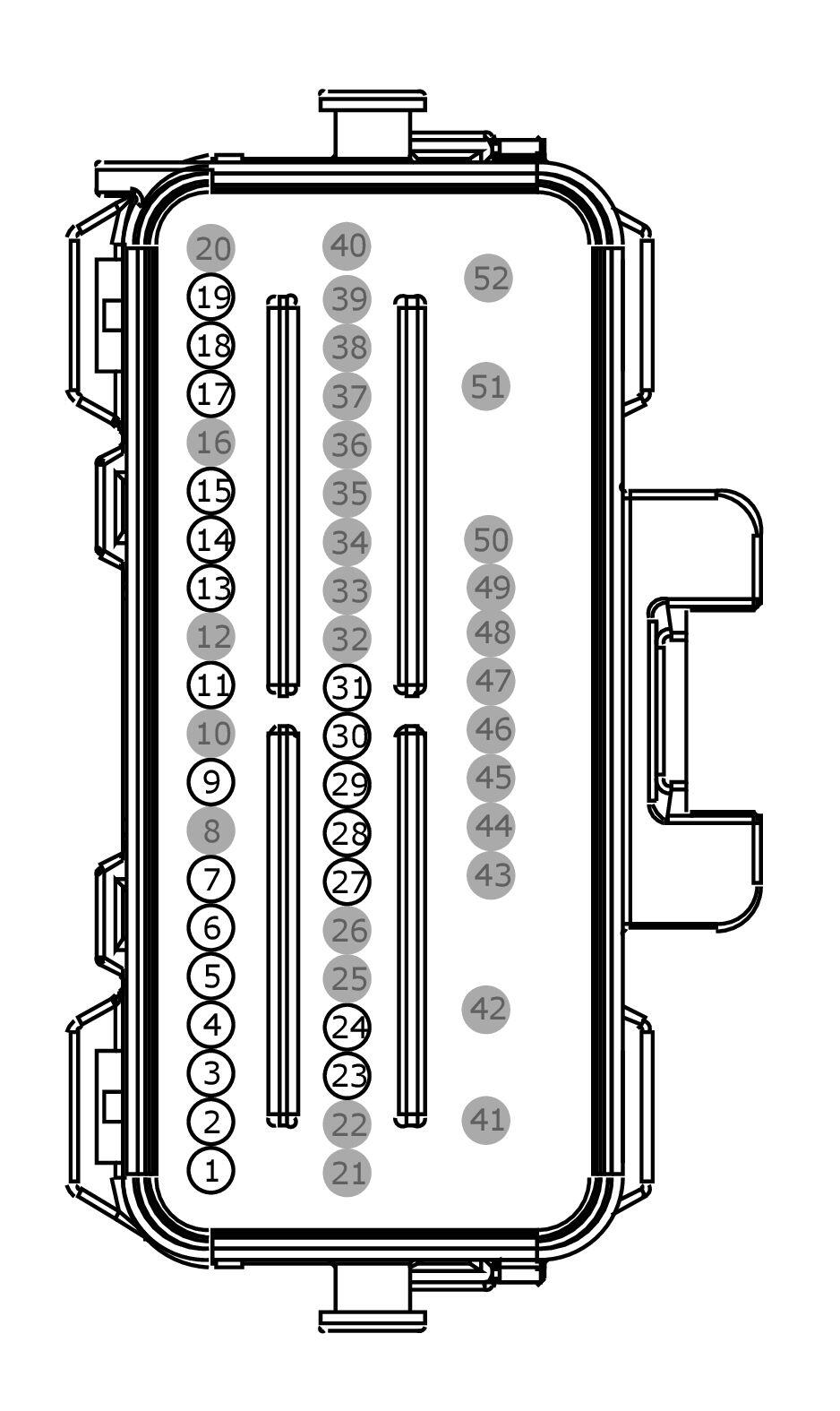

GFDWR230539Courtesy of FORD MOTOR COMPANY

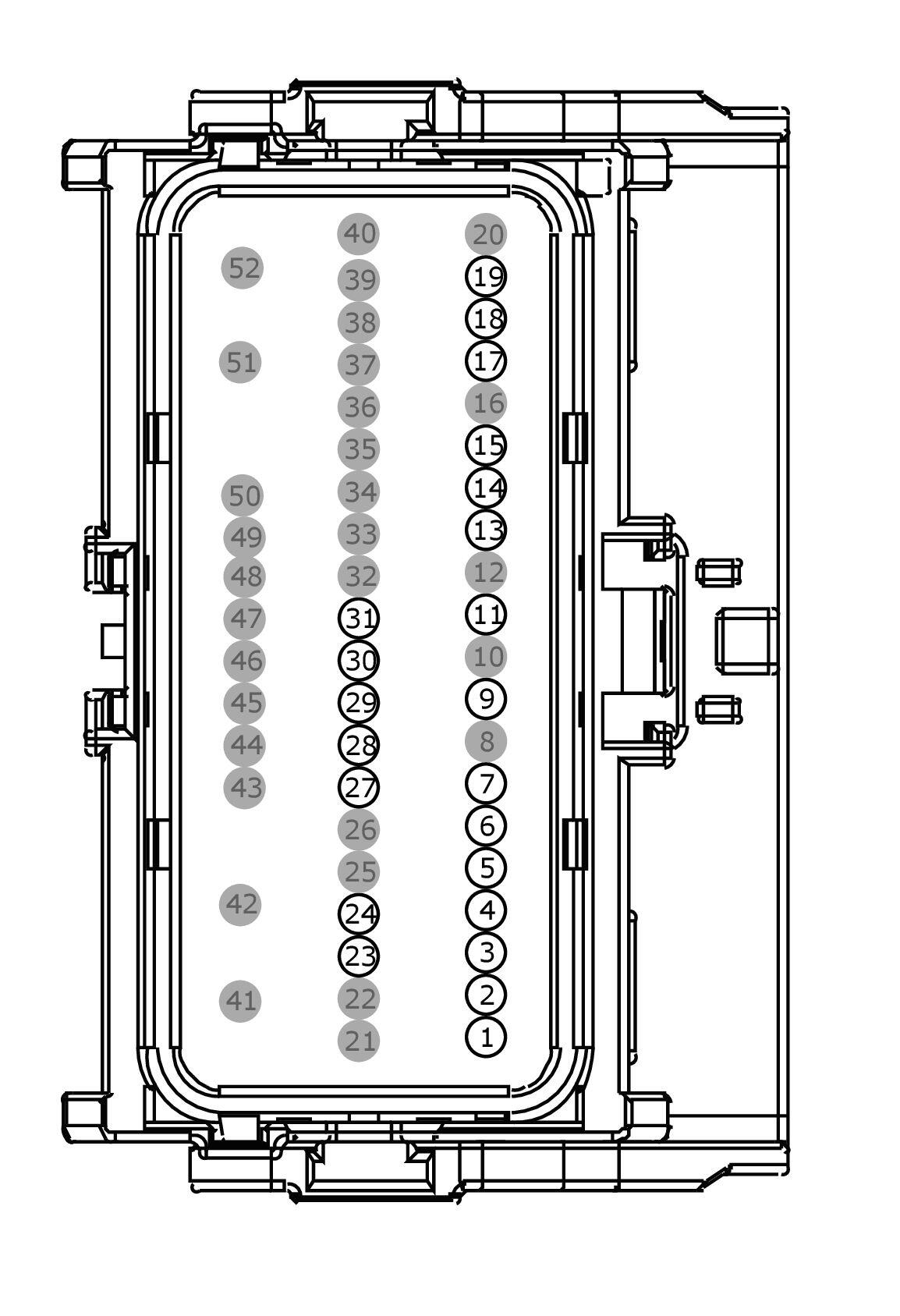

GFDWR230540Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9CU5T-14474-EB Not Available
9U5T-14421-BA EU2Z-14421-BA 0.64
CU5T-14474-EB DU2Z-14474-CAFC 0.64
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 CBB07 (GN-BU) 18 9U5T-14421-BA
2 VE940 (GN-BU) 20 9U5T-14421-BA
3 VE941 (BN) 20 9U5T-14421-BA
4 CR167 (YE-VT) 18 9U5T-14421-BA
5 CYD14 (GN-BN) 22 9U5T-14421-BA
6 SBBE6 (YE-RD) 20 9U5T-14421-BA
7 VE794 (YE) 20 9U5T-14421-BA
8 * * N/A
9 VE793 (GN) 20 9U5T-14421-BA
10 * * N/A
11 CBBG9 (VT-GY) 18 9U5T-14421-BA
12 * * N/A
13 VYB30 (YE-GN) 18 9U5T-14421-BA
14 CYT14 (VT-OG) 18 9U5T-14421-BA
15 VDN04 (VT-WH) 18 9U5T-14421-BA
16 * * N/A
17 SBB46 (BN-RD) 20 9U5T-14421-BA
18 CYC03 (BN-GN) 20 9U5T-14421-BA
19 VYC11 (BU-WH) 22 9U5T-14421-BA
20 * * N/A
21 * * N/A
22 * * N/A
23 VYB61 (BU-OG) 22 9U5T-14421-BA
24 VYB62 (GY-BU) 22 9U5T-14421-BA
25 * * N/A
26 * * N/A
27 BDB66 (GY-OG) 22 9U5T-14421-BA
28 BDB65 (GN-WH) 22 9U5T-14421-BA
29 BDB66 (GY-OG) 22 9U5T-14421-BA
30 BDB65 (GN-WH) 22 9U5T-14421-BA
31 RE407 (YE-VT) 20 9U5T-14421-BA
32 * * N/A
33 * * N/A
34 * * N/A
35 * * N/A
36 * * N/A
37 * * N/A
38 * * N/A
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 * * N/A
46 * * N/A
47 * * N/A
48 * * N/A
49 * * N/A
50 * * N/A
51 * * N/A
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 CBB07 (GN-BU) 18 CU5T-14474-EB
2 VE940 (GN-BU) 20 CU5T-14474-EB
3 VE941 (BN) 20 CU5T-14474-EB
4 CR167 (YE-VT) 18 CU5T-14474-EB
5 CYD14 (GN-BN) 22 CU5T-14474-EB
6 SBBE6 (YE-RD) 20 CU5T-14474-EB
7 VE794 (YE) 20 CU5T-14474-EB
8 * * N/A
9 VE793 (GN) 20 CU5T-14474-EB
10 * * N/A
11 CBBG9 (VT-GY) 18 CU5T-14474-EB
12 * * N/A
13 VYB30 (YE-GN) 18 CU5T-14474-EB
14 CYT14 (VT-OG) 18 CU5T-14474-EB
15 VDN04 (VT-WH) 18 CU5T-14474-EB
16 * * N/A
17 SBB46 (BN-RD) 20 CU5T-14474-EB
18 CYC03 (BN-GN) 20 9CU5T-14474-EB
19 VYC11 (BU-WH) 22 CU5T-14474-EB
20 * * N/A
21 * * N/A
22 * * N/A
23 VYB61 (BU-OG) 22 CU5T-14474-EB
24 VYB62 (GY-BU) 22 CU5T-14474-EB
25 * * N/A
26 * * N/A
27 BDB66 (GY-OG) 22 CU5T-14474-EB
28 BDB65 (GN-WH) 22 CU5T-14474-EB
29 BDB66 (GY-OG) 22 CU5T-14474-EB
30 BDB65 (GN-WH) 22 CU5T-14474-EB
31 RE407 (YE-VT) 20 CU5T-14474-EB
32 * * N/A
33 * * N/A
34 * * N/A
35 * * N/A
36 * * N/A
37 * * N/A
38 * * N/A
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 * * N/A
46 * * N/A
47 * * N/A
48 * * N/A
49 * * N/A
50 * * N/A
51 * * N/A
