Parking Aid

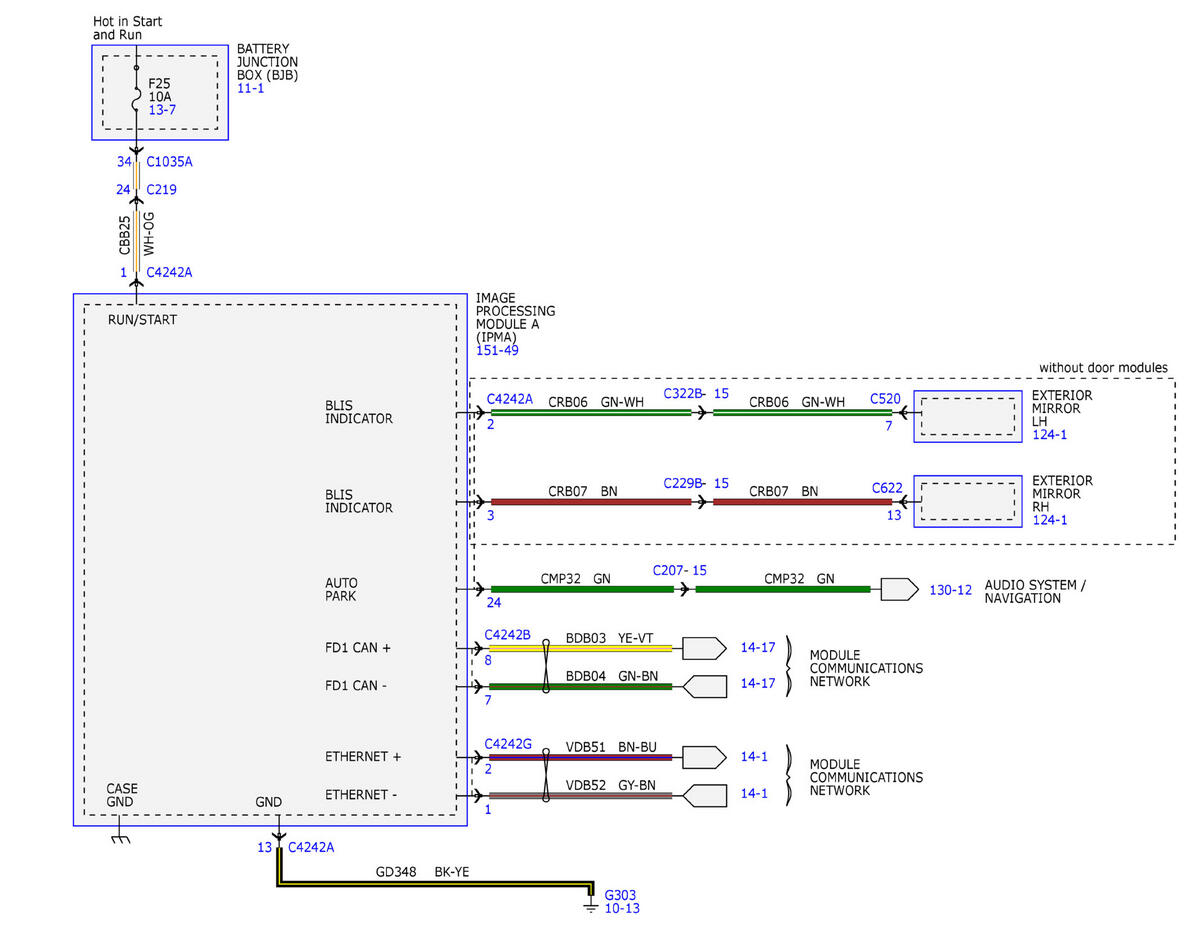

Fig 1: Parking Aid (1 Of 8)
GFDWR231378Courtesy of FORD MOTOR COMPANY

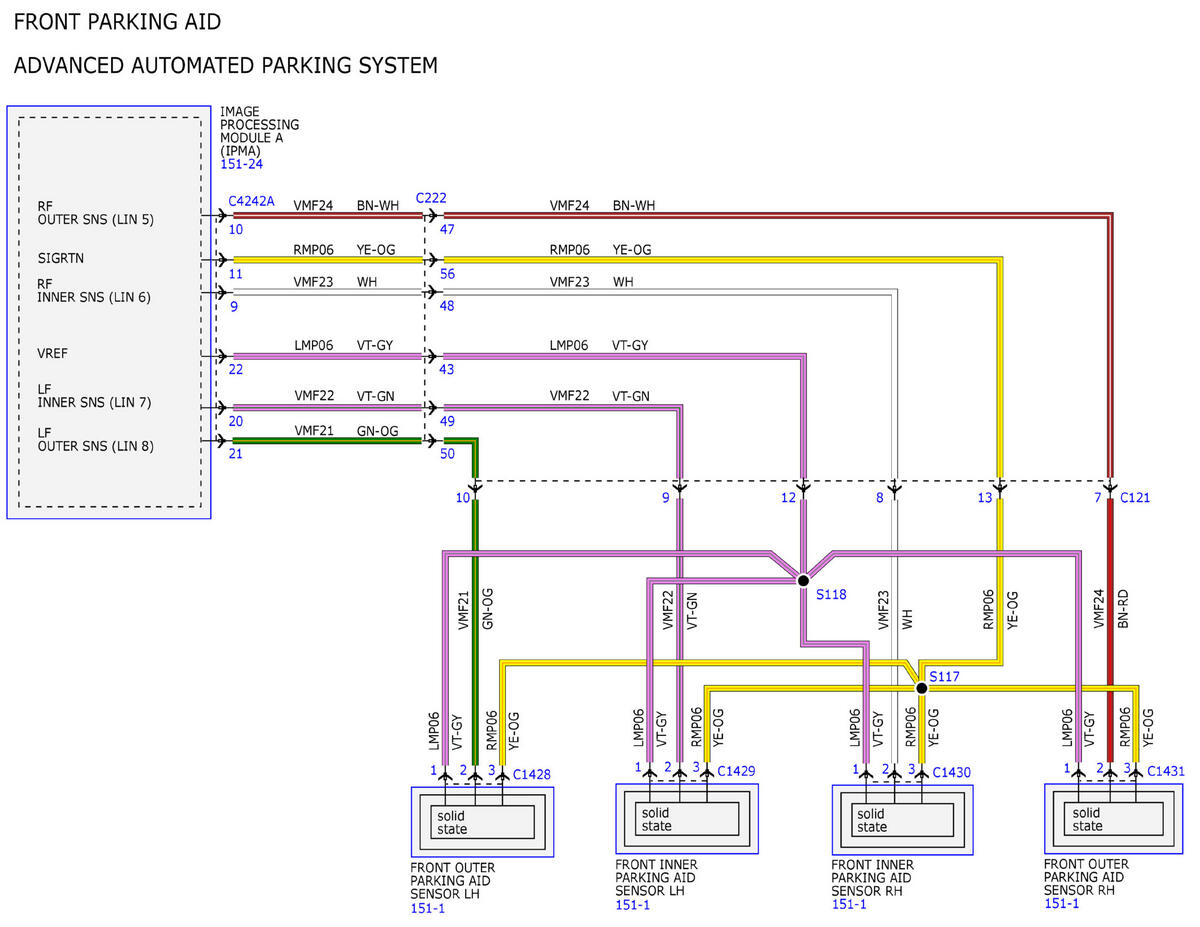

Fig 2: Parking Aid (2 Of 8)
GFDWR231379Courtesy of FORD MOTOR COMPANY

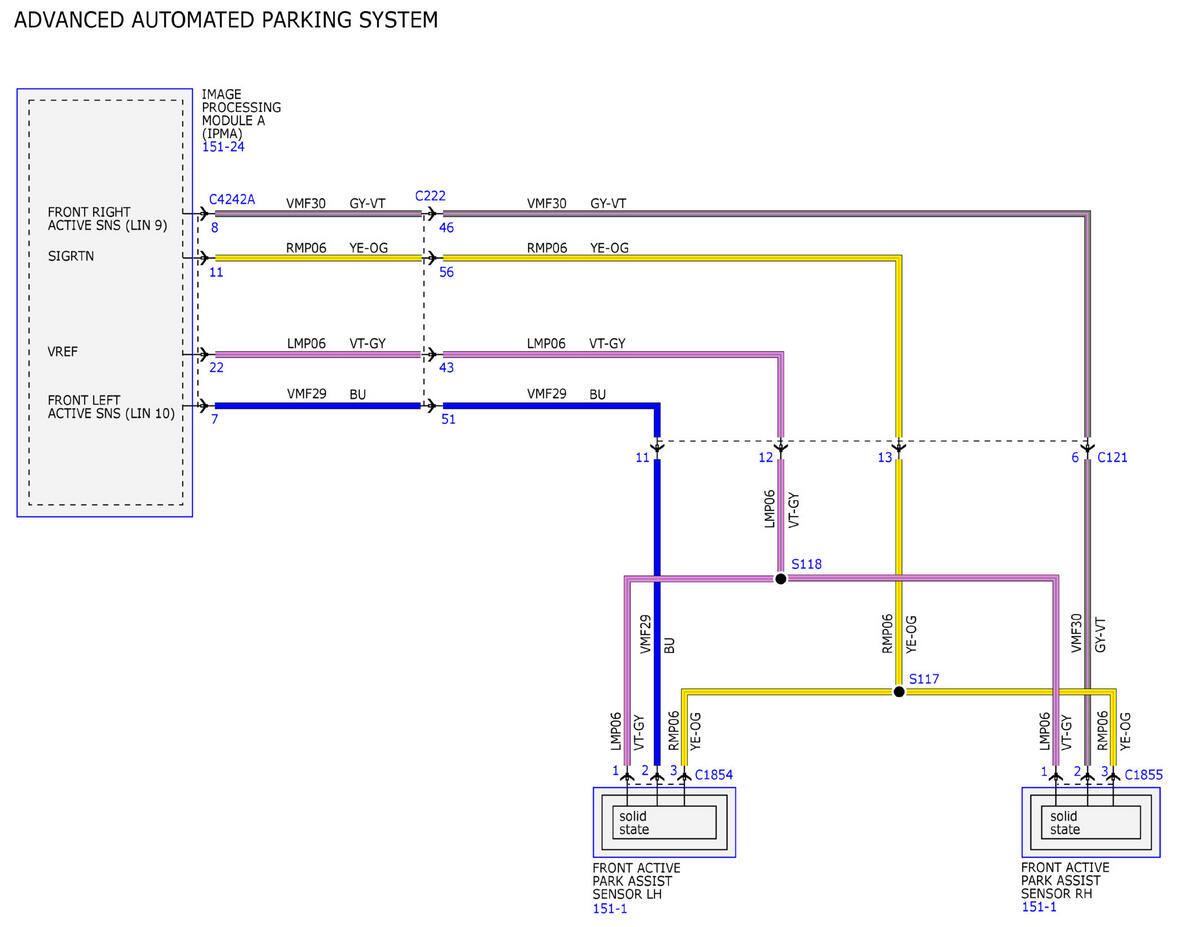

Fig 3: Parking Aid (3 Of 8)
GFDWR231380Courtesy of FORD MOTOR COMPANY

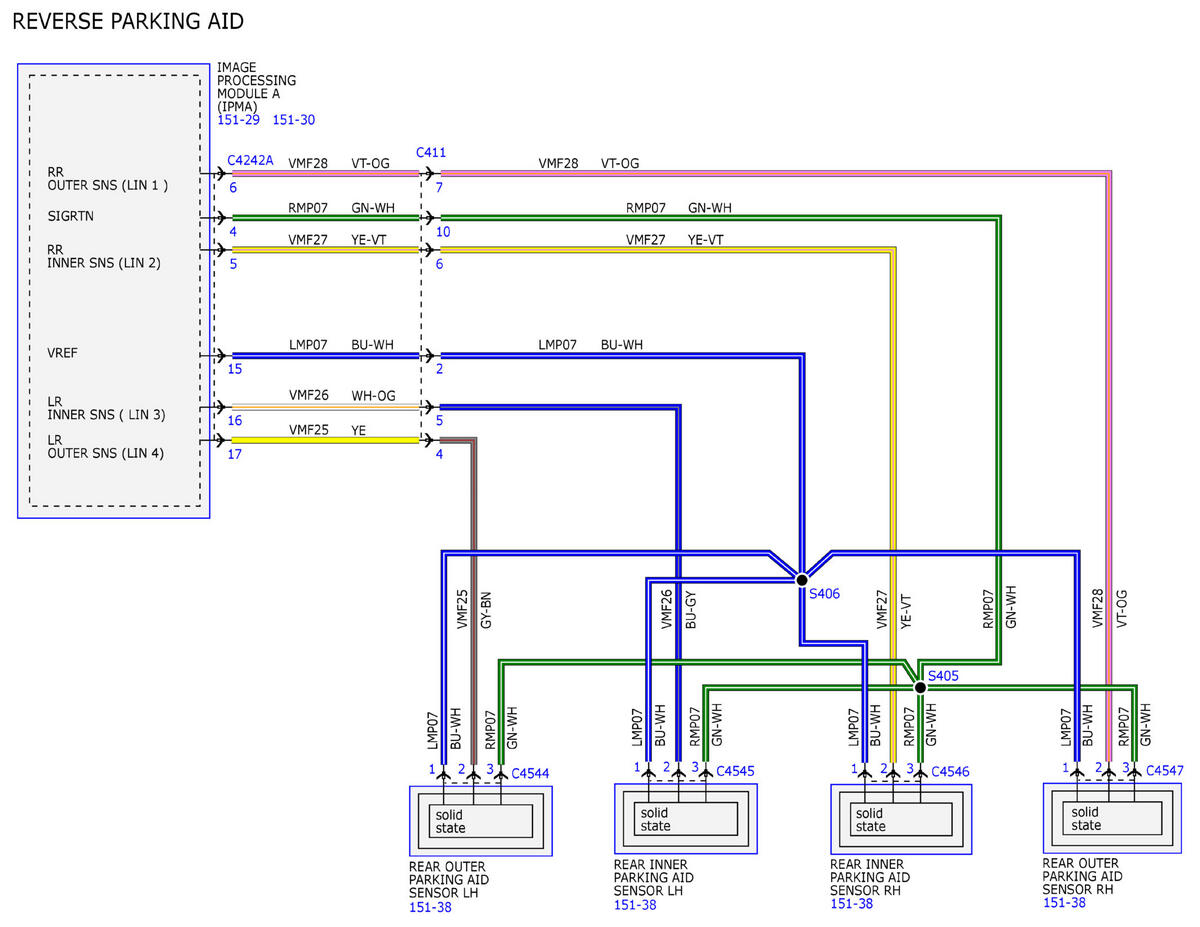

Fig 4: Parking Aid (4 Of 8)
GFDWR231381Courtesy of FORD MOTOR COMPANY

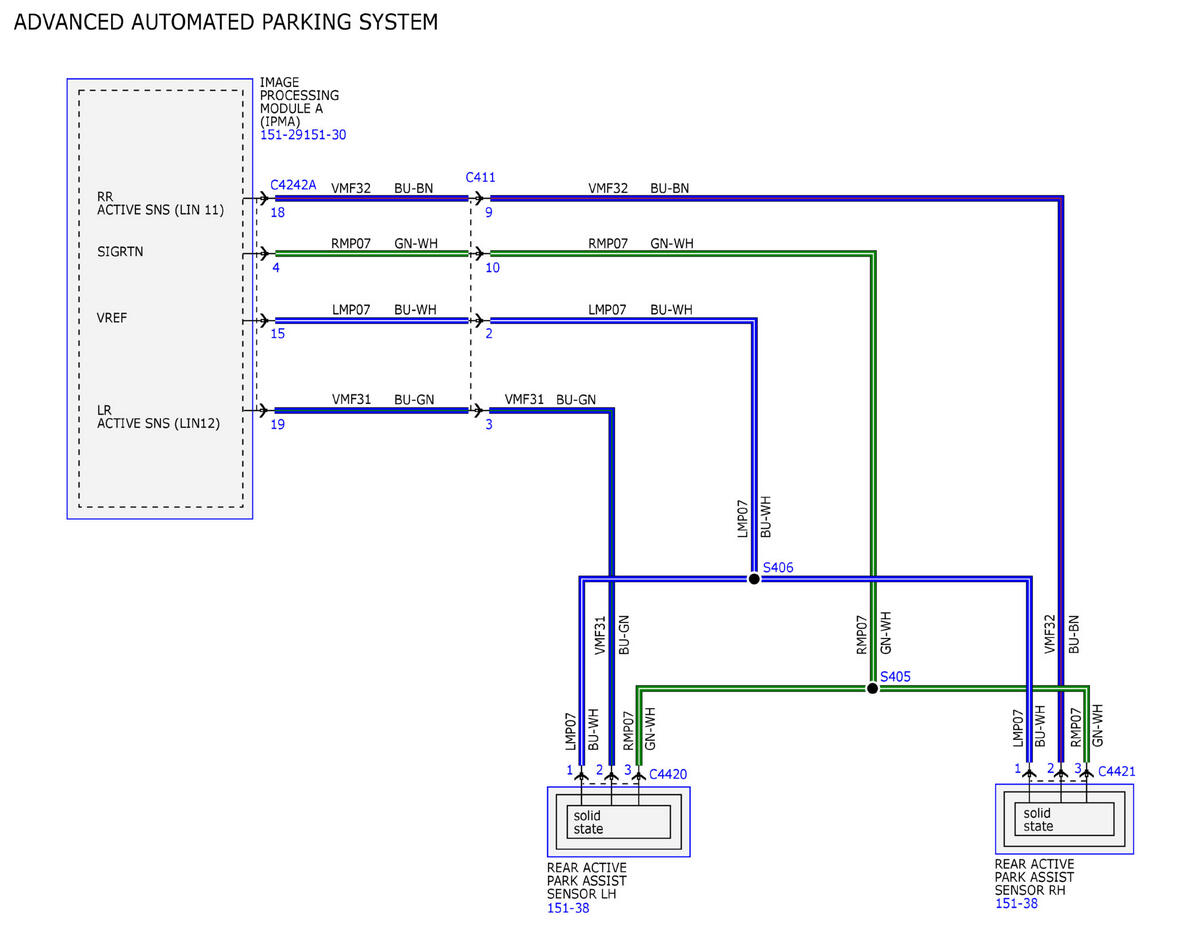

Fig 5: Parking Aid (5 Of 8)
GFDWR231382Courtesy of FORD MOTOR COMPANY

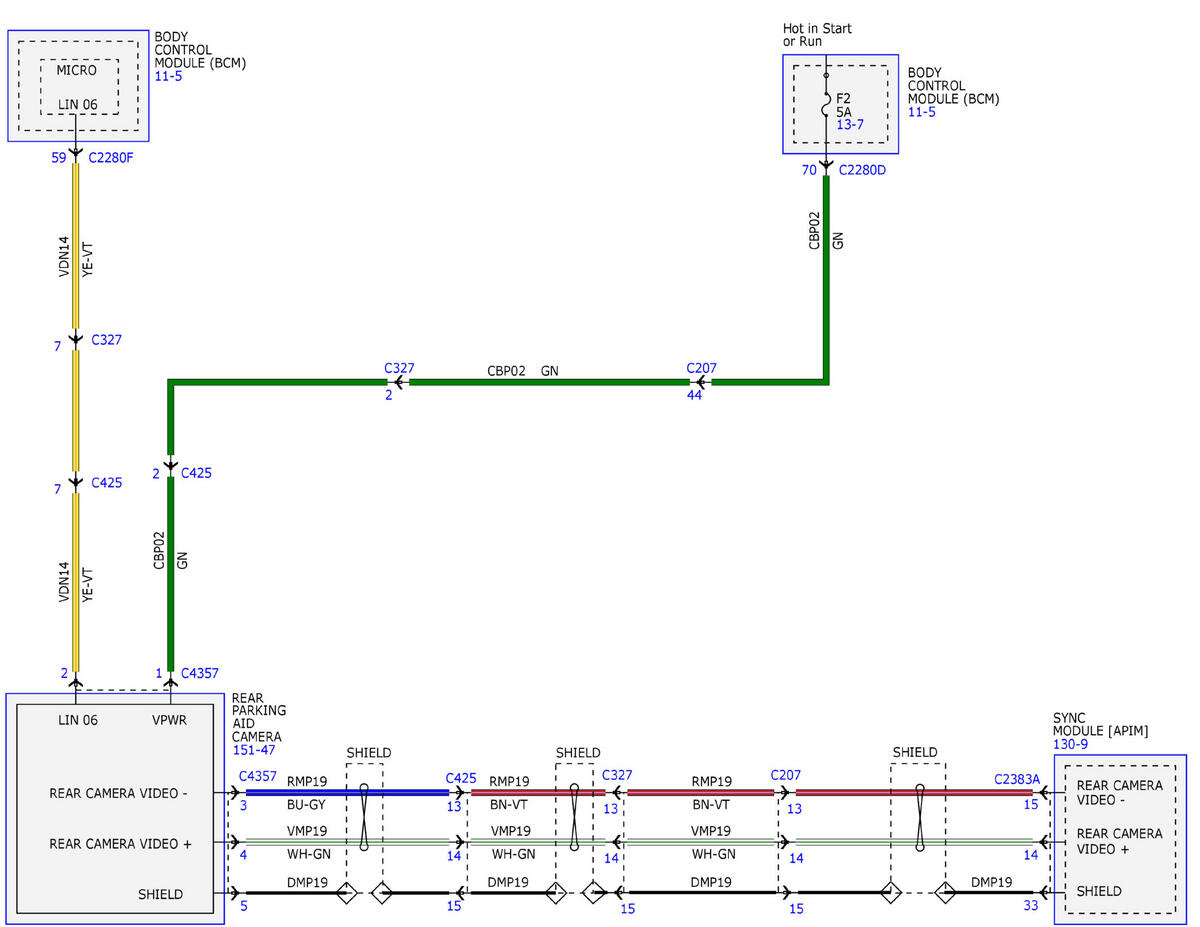

Fig 6: Parking Aid (6 Of 8)
GFDWR231383Courtesy of FORD MOTOR COMPANY

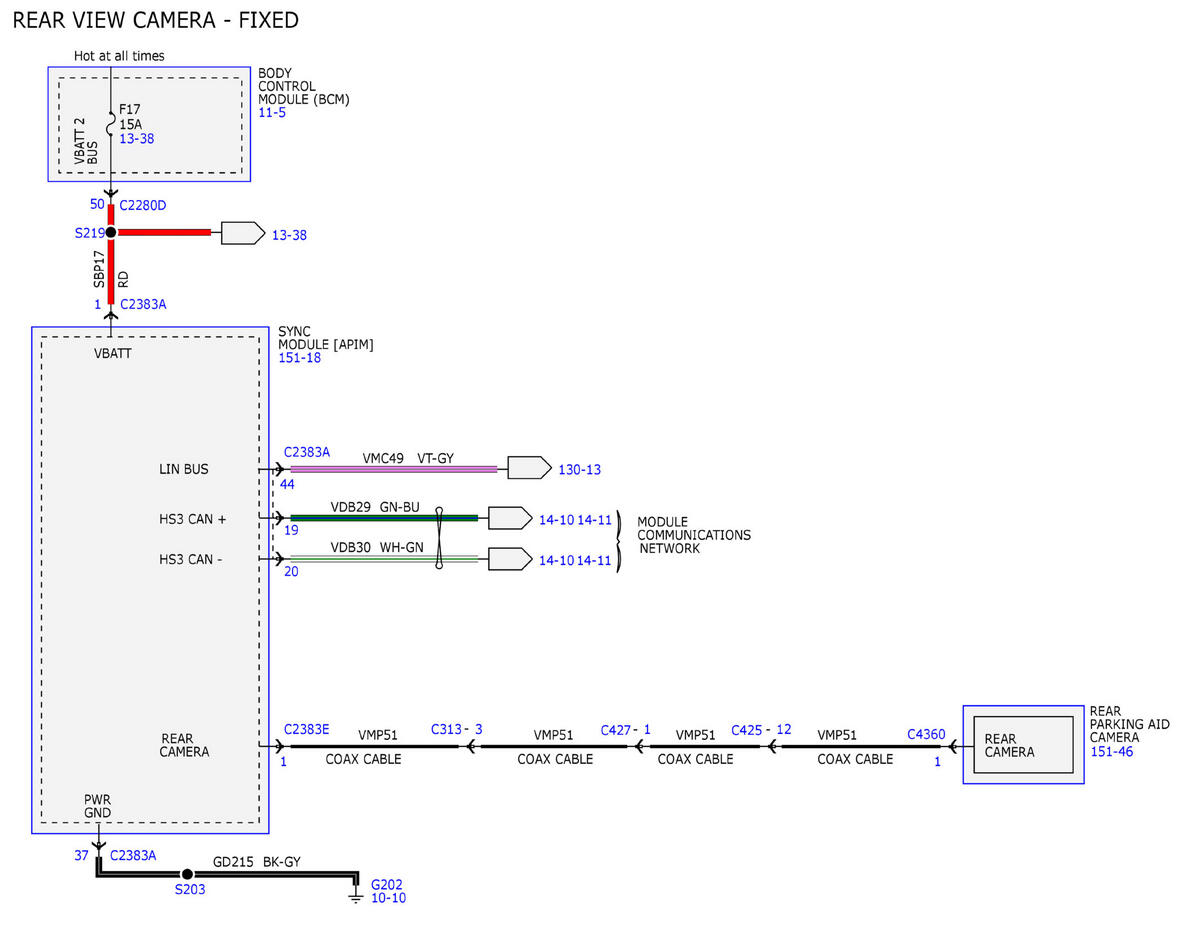

Fig 7: Parking Aid (7 Of 8)
GFDWR231384Courtesy of FORD MOTOR COMPANY

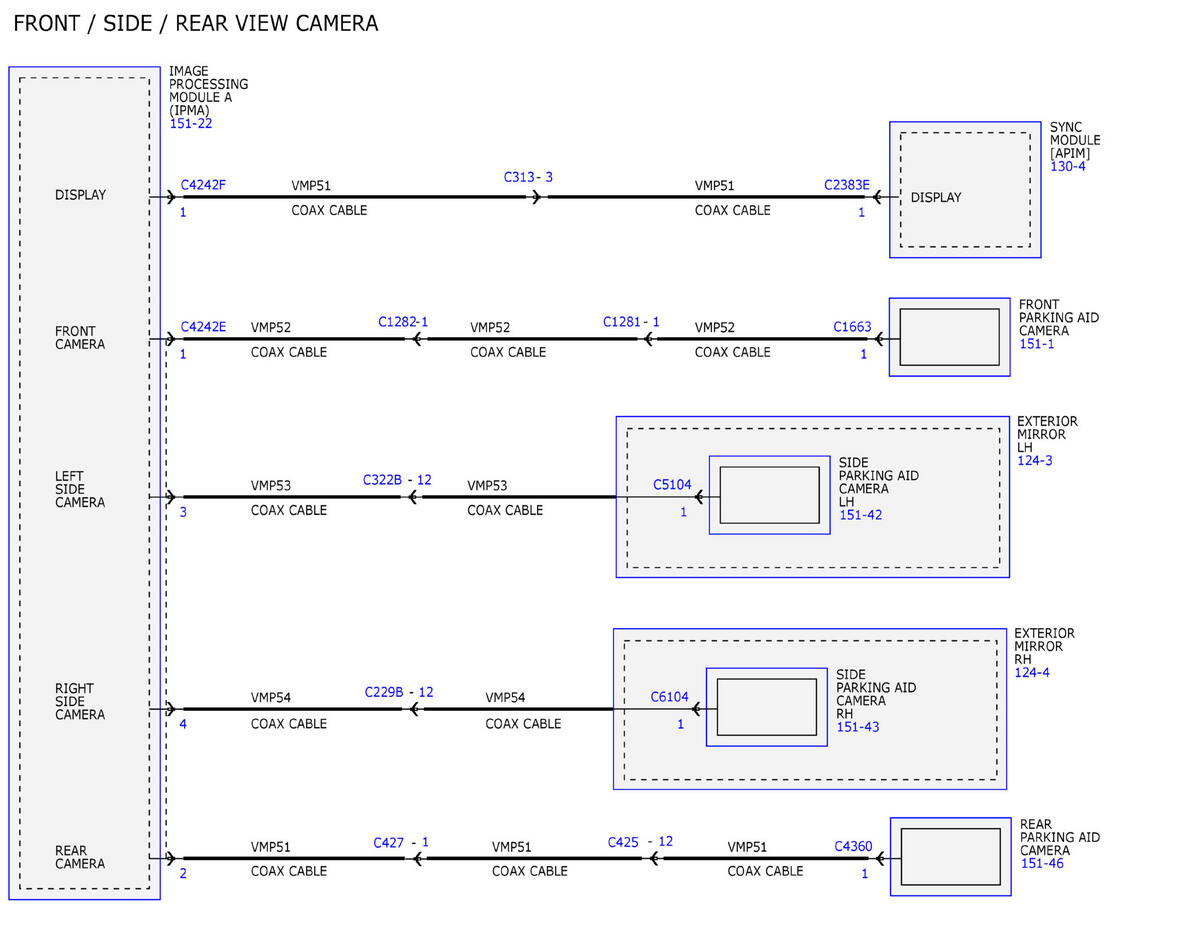

Fig 8: Parking Aid (8 Of 8)
GFDWR231385Courtesy of FORD MOTOR COMPANY
