Instrument Cluster

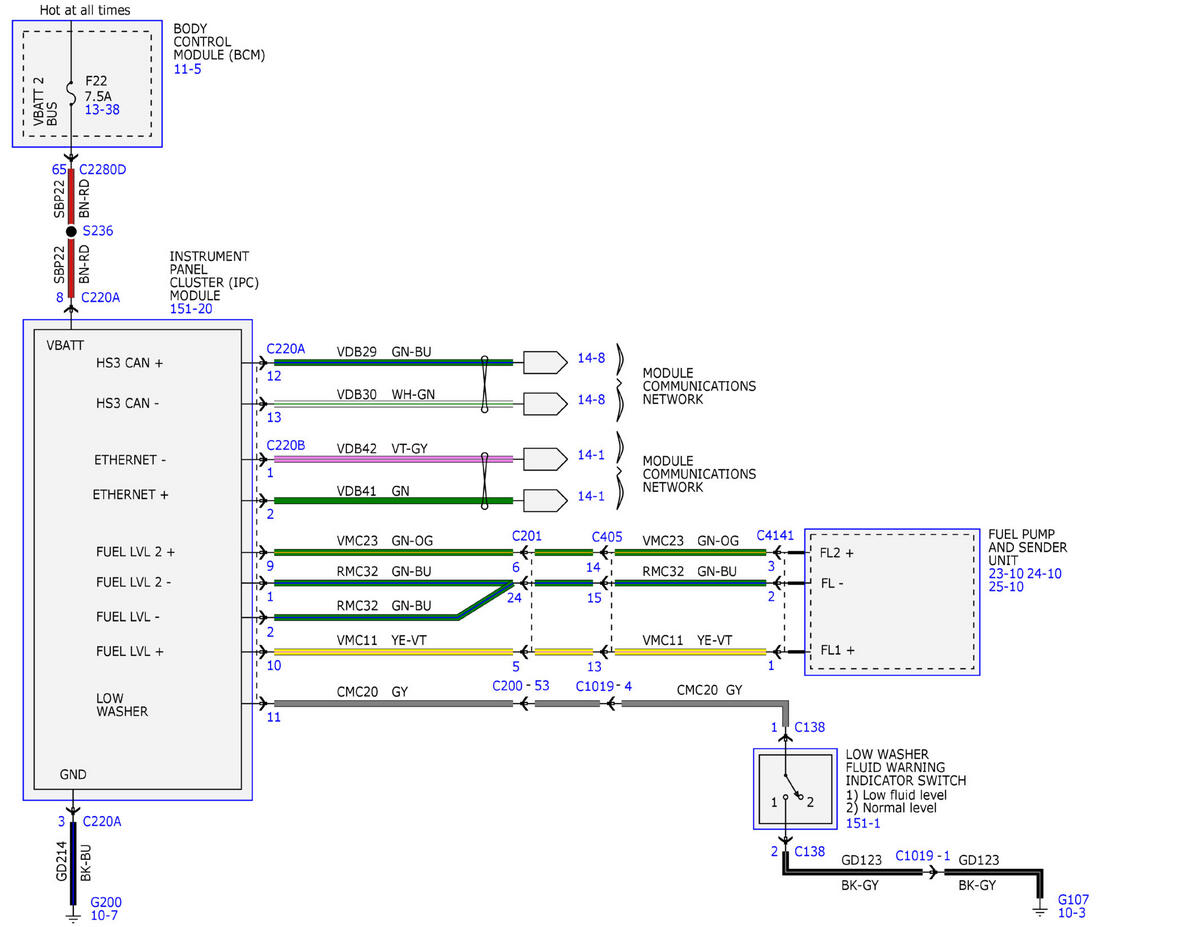

Fig 1: Instrument Cluster (1 Of 3)
GFDWR231336Courtesy of FORD MOTOR COMPANY

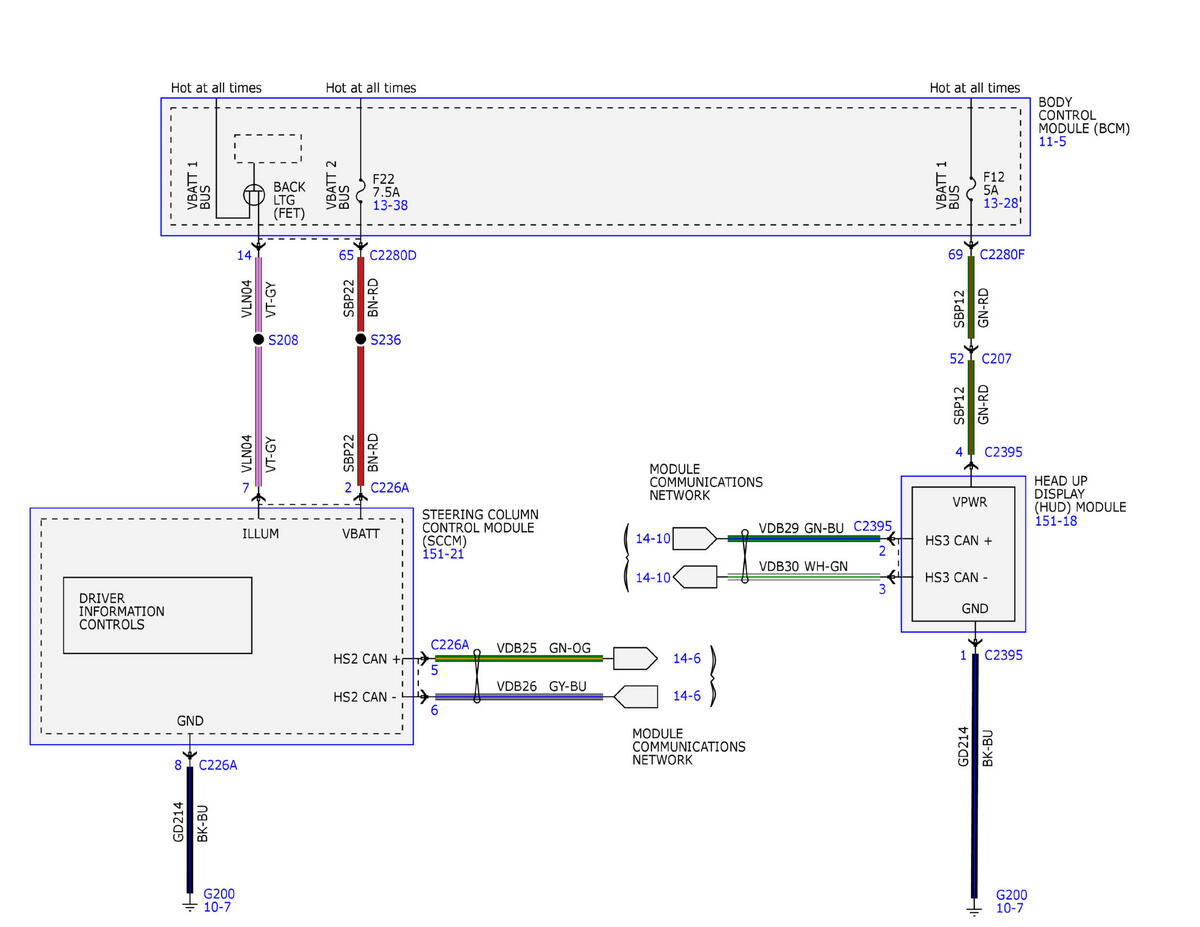

Fig 2: Instrument Cluster (2 Of 3)
GFDWR231337Courtesy of FORD MOTOR COMPANY

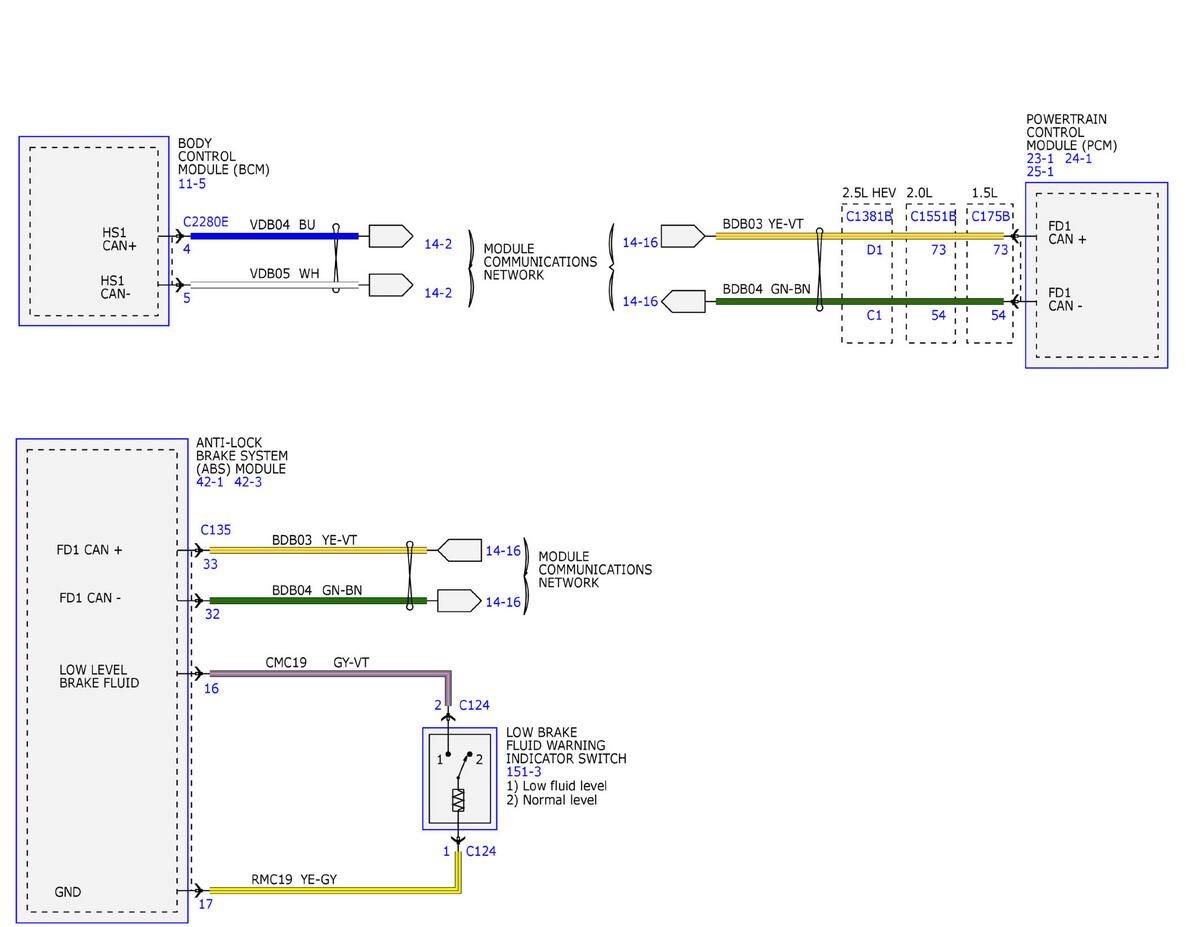

Fig 3: Instrument Cluster (3 Of 3)
GFDWR231338Courtesy of FORD MOTOR COMPANY
