Front Parking Aid Camera - Vehicles With: 360 Degree Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front bumper cover. Refer to: FRONT BUMPER COVER .

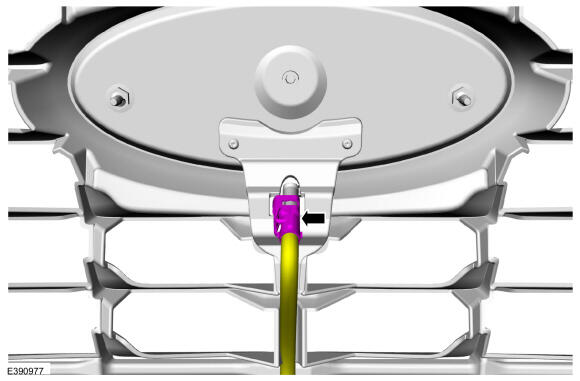

2. Disconnect the front parking aid camera electrical connector.

   Courtesy of FORD MOTOR COMPANY

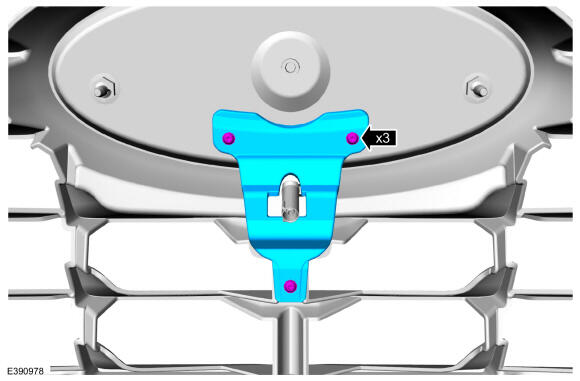

3. Remove the screws and the bracket.

   Courtesy of FORD MOTOR COMPANY

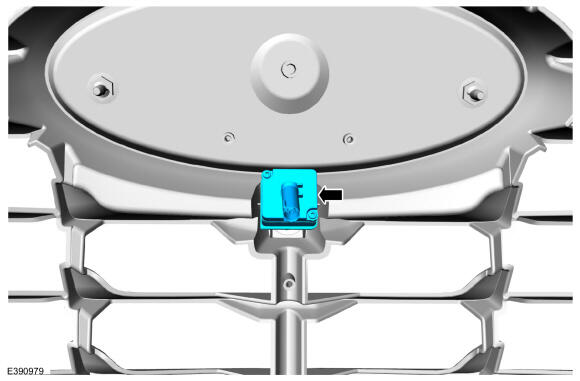

4. Remove the front parking aid camera.

Courtesy of FORD MOTOR COMPANY
