Transmission Controls - 8F35

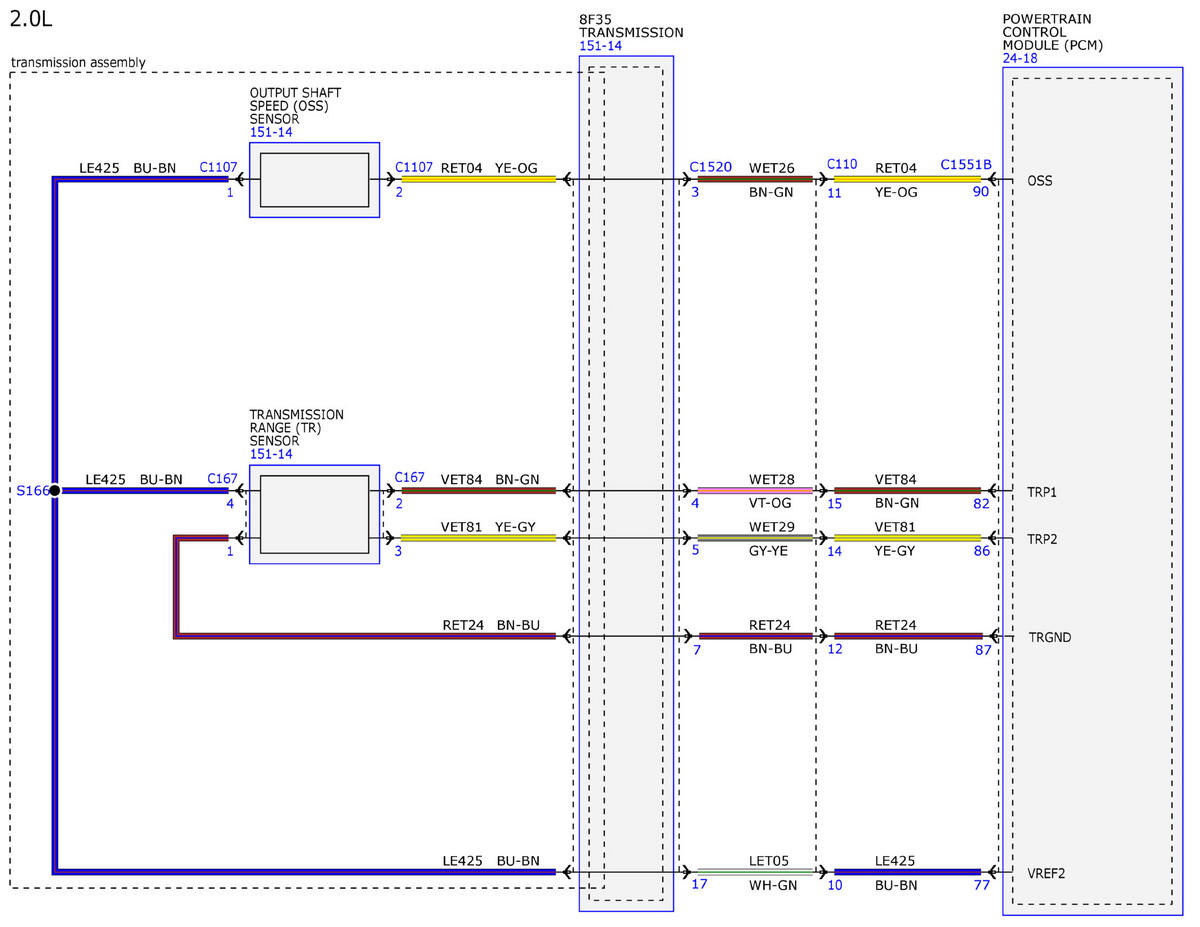

Fig 1: Transmission Controls - 8F35 (1 Of 10)
GFDWR231501Courtesy of FORD MOTOR COMPANY

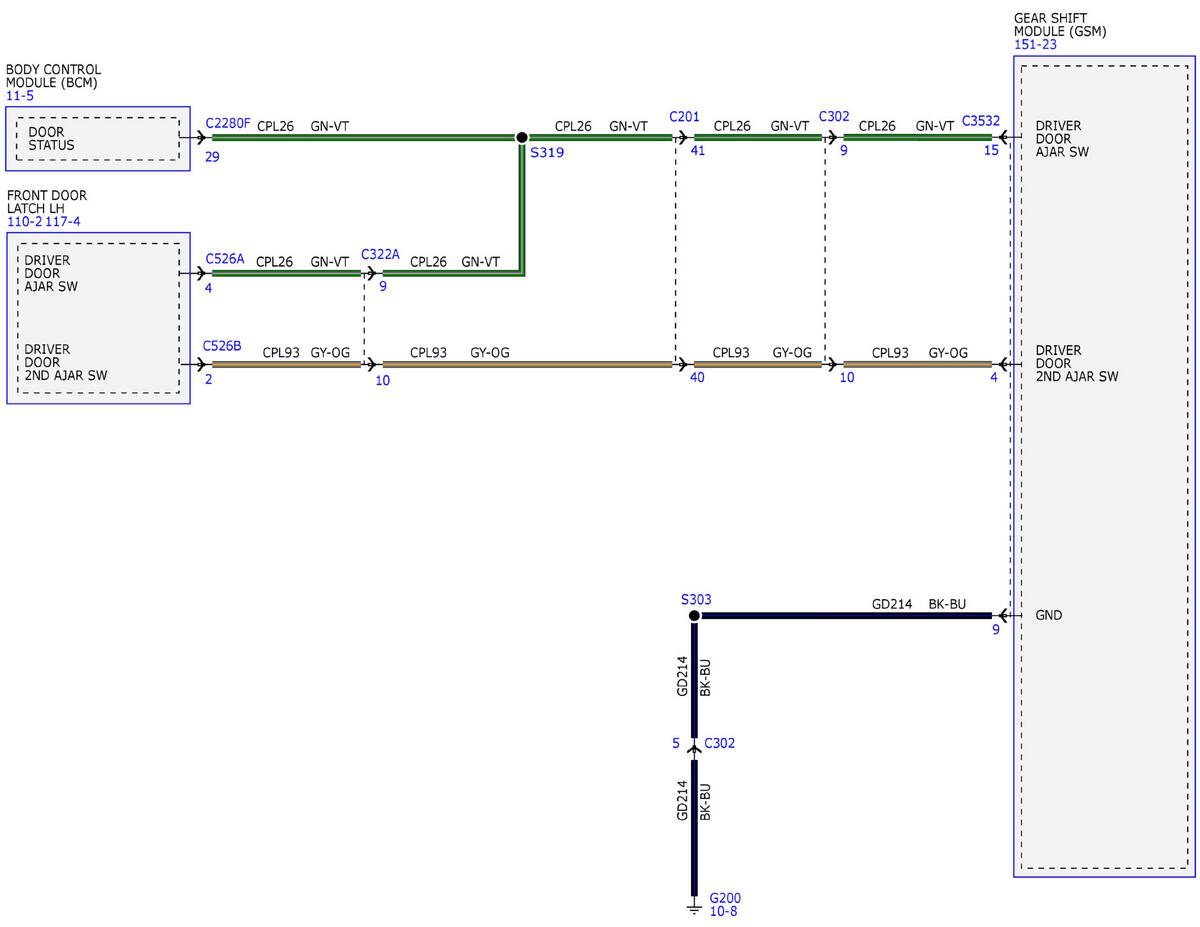

Fig 2: Transmission Controls - 8F35 (2 Of 10)
GFDWR231502Courtesy of FORD MOTOR COMPANY

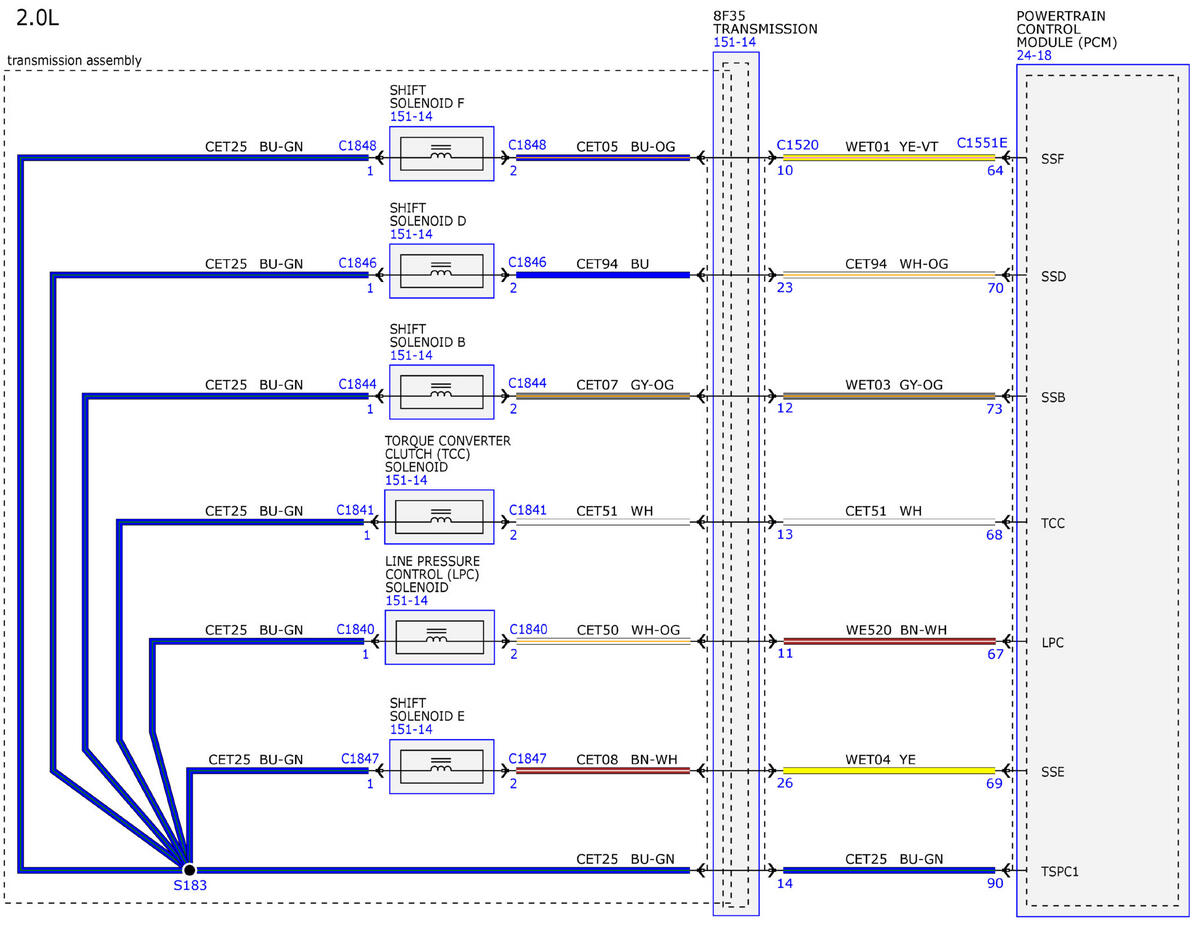

Fig 3: Transmission Controls - 8F35 (3 Of 10)
GFDWR231503Courtesy of FORD MOTOR COMPANY
Fig 4: Transmission Controls - 8F35 (4 Of 10)
GFDWR231504Courtesy of FORD MOTOR COMPANY

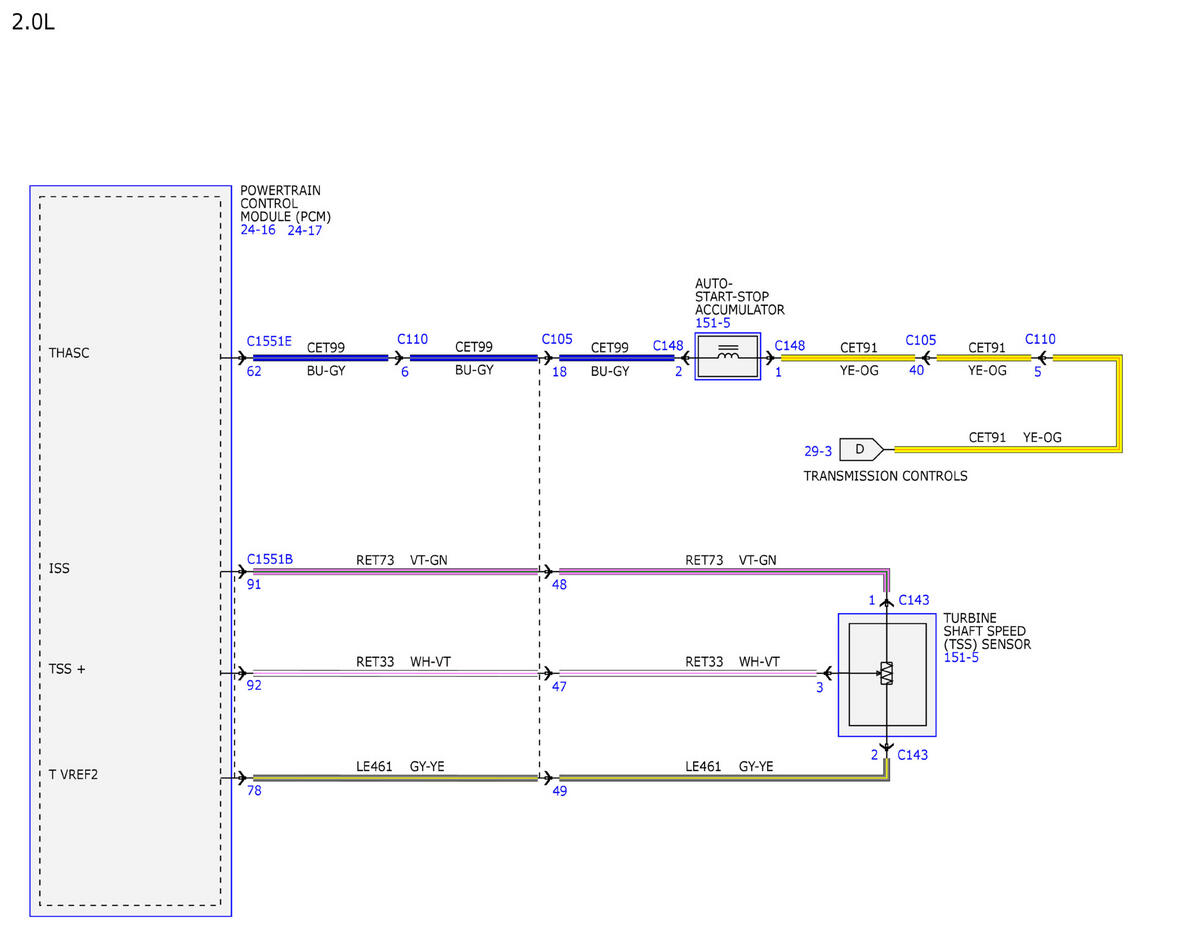

Fig 5: Transmission Controls - 8F35 (5 Of 10)
GFDWR231505Courtesy of FORD MOTOR COMPANY

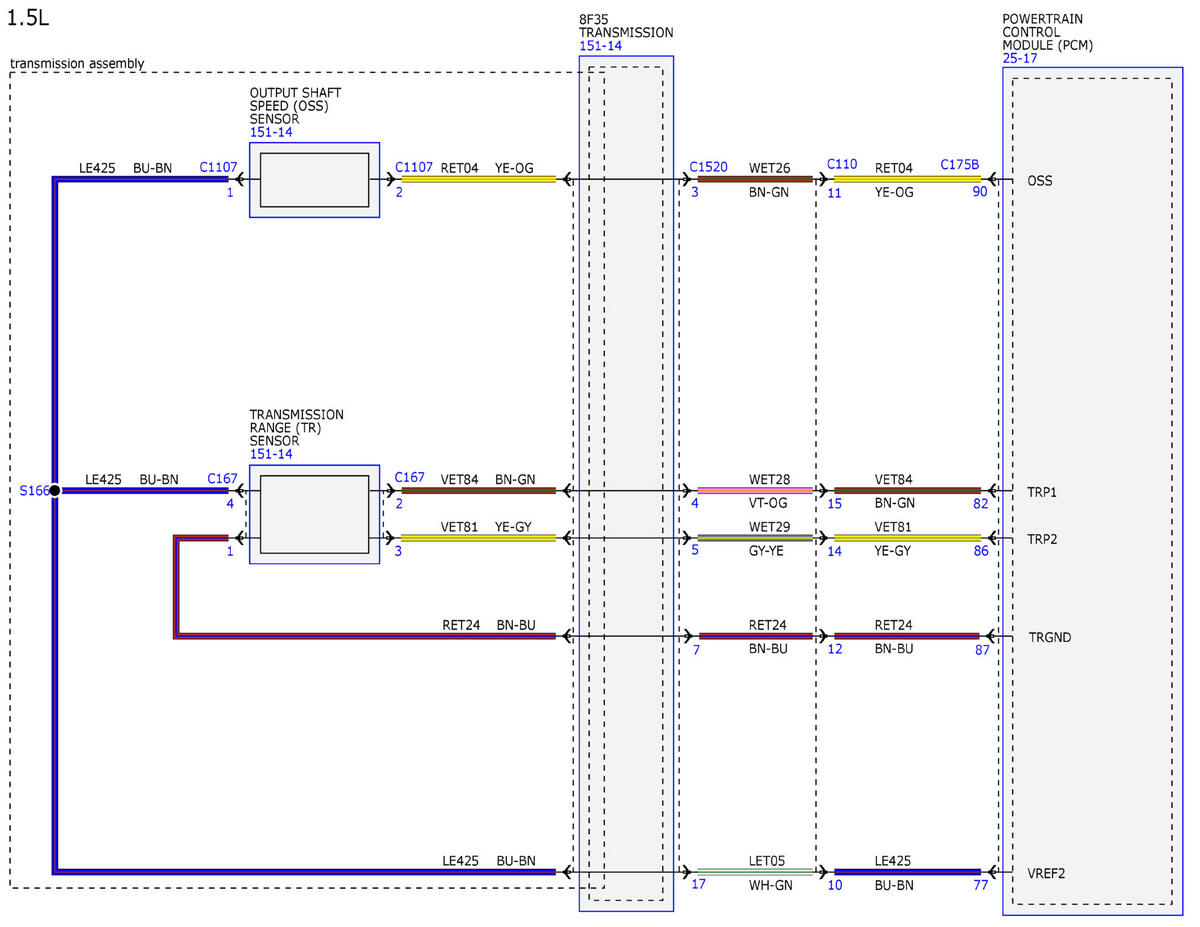

Fig 6: Transmission Controls - 8F35 (6 Of 10)
GFDWR231506Courtesy of FORD MOTOR COMPANY

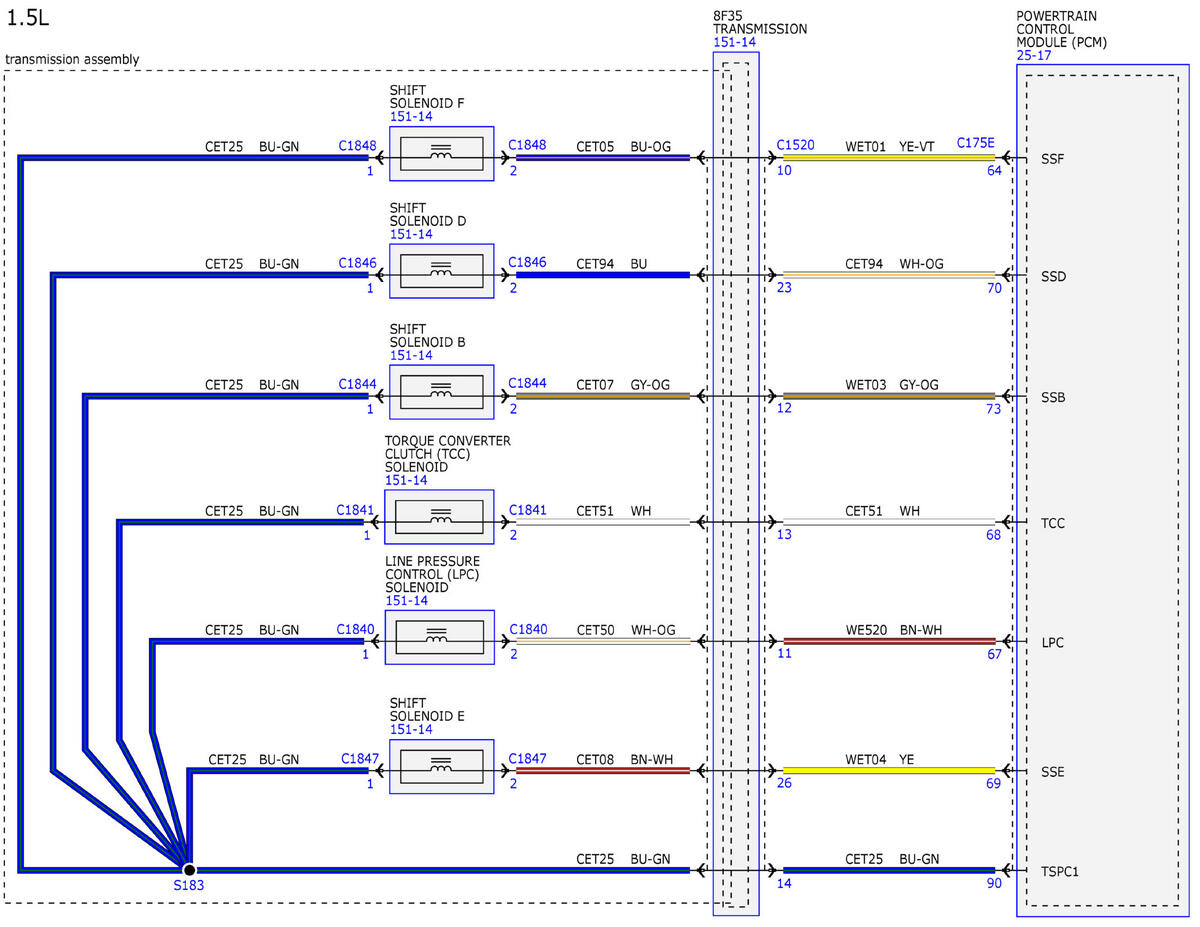

Fig 7: Transmission Controls - 8F35 (7 Of 10)
GFDWR231507Courtesy of FORD MOTOR COMPANY

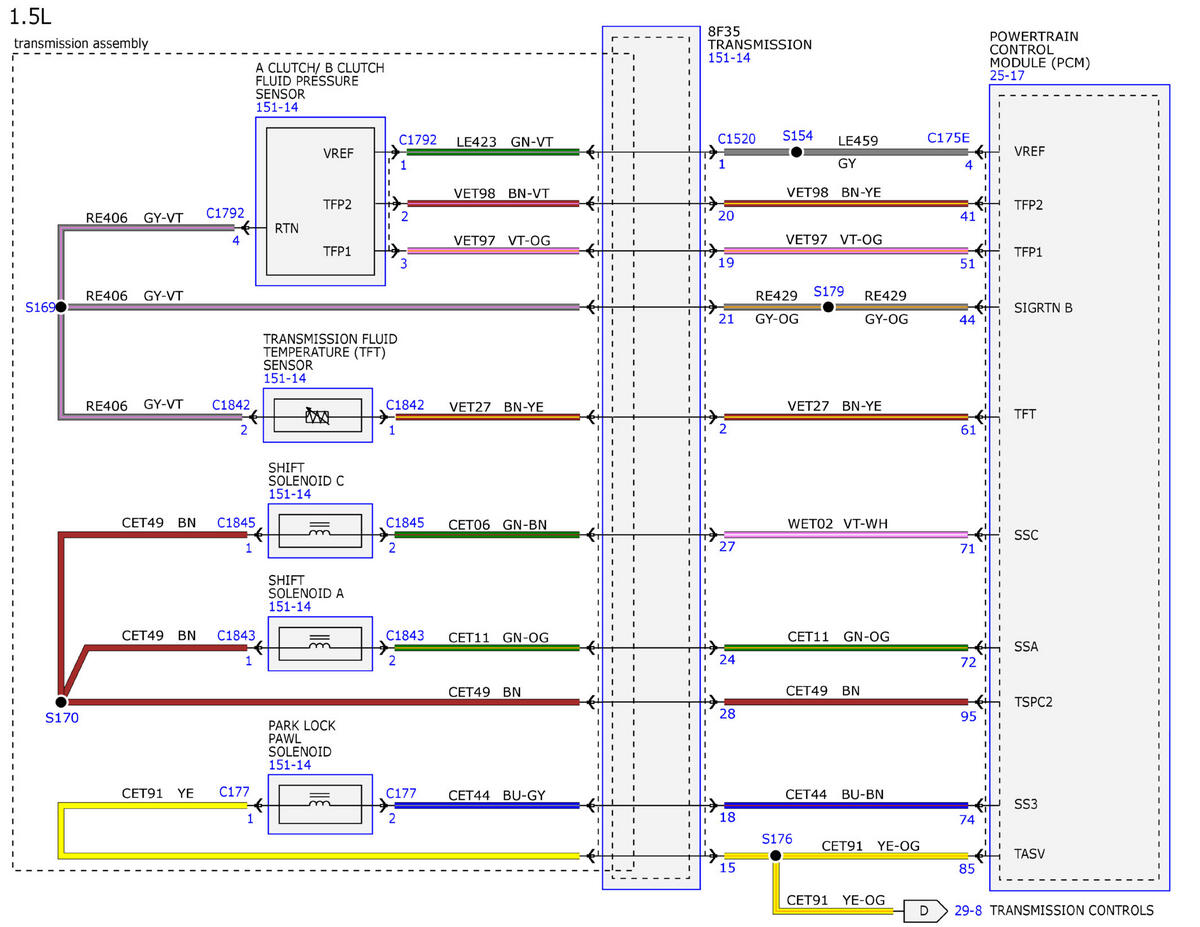

Fig 8: Transmission Controls - 8F35 (8 Of 10)
GFDWR231508Courtesy of FORD MOTOR COMPANY

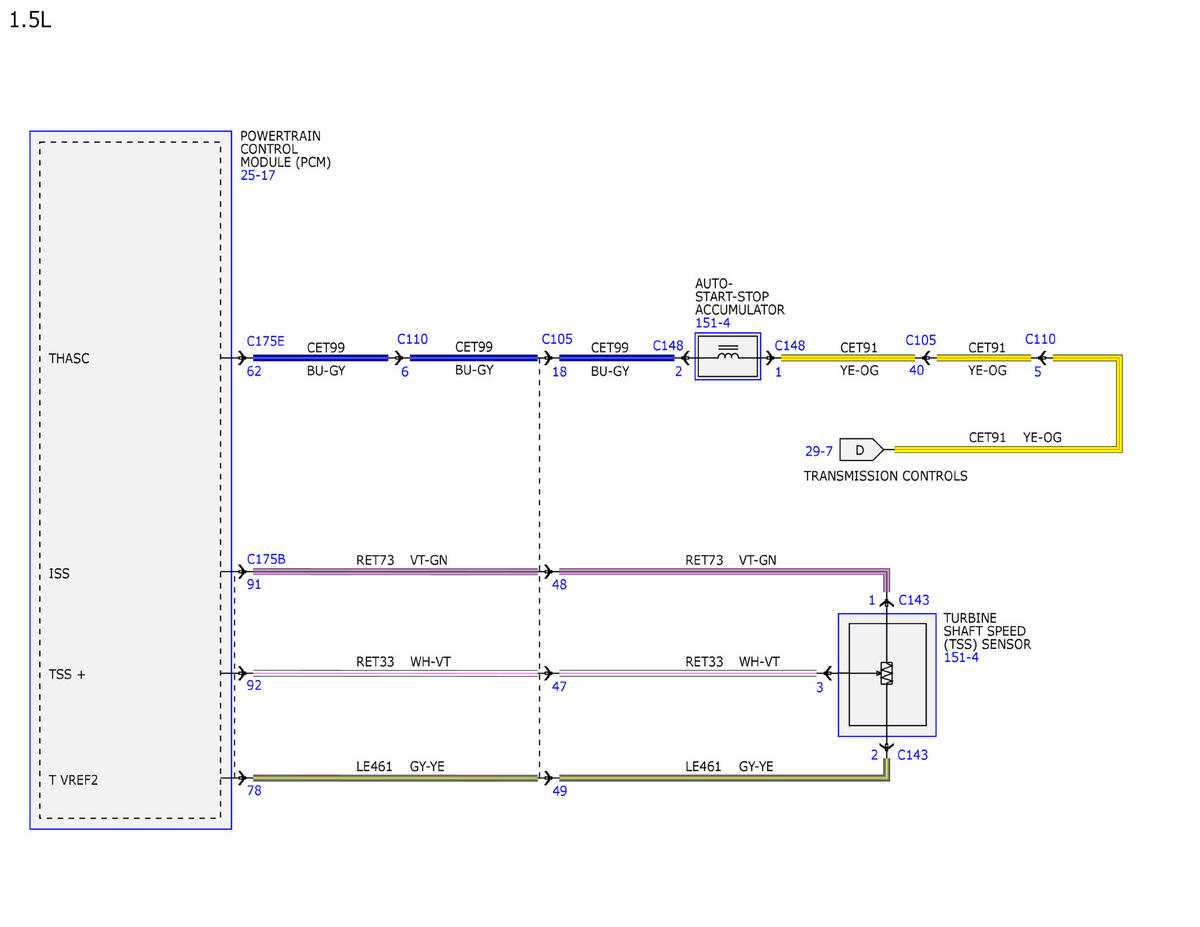

Fig 9: Transmission Controls - 8F35 (9 Of 10)
GFDWR231509Courtesy of FORD MOTOR COMPANY

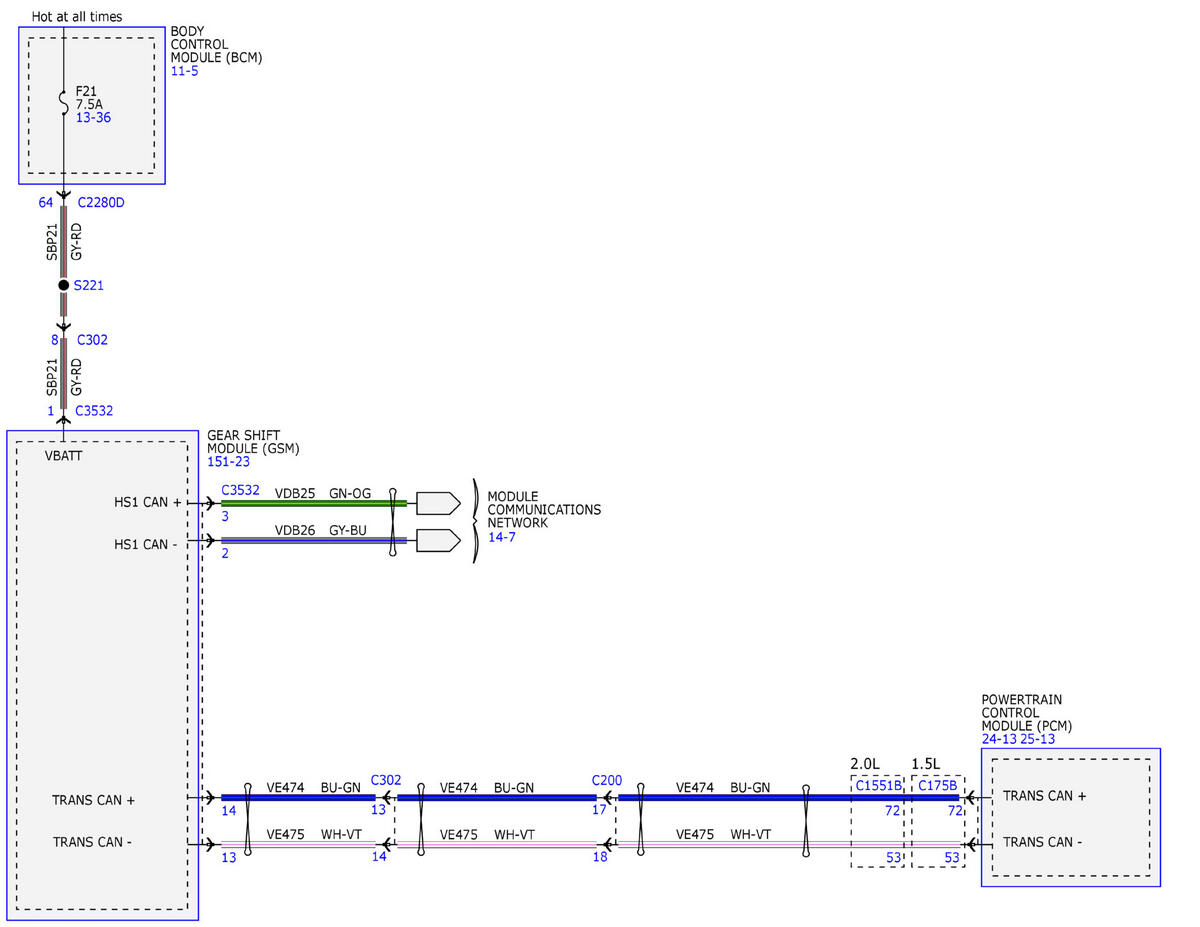

Fig 10: Transmission Controls - 8F35 (10 Of 10)
GFDWR231510Courtesy of FORD MOTOR COMPANY
