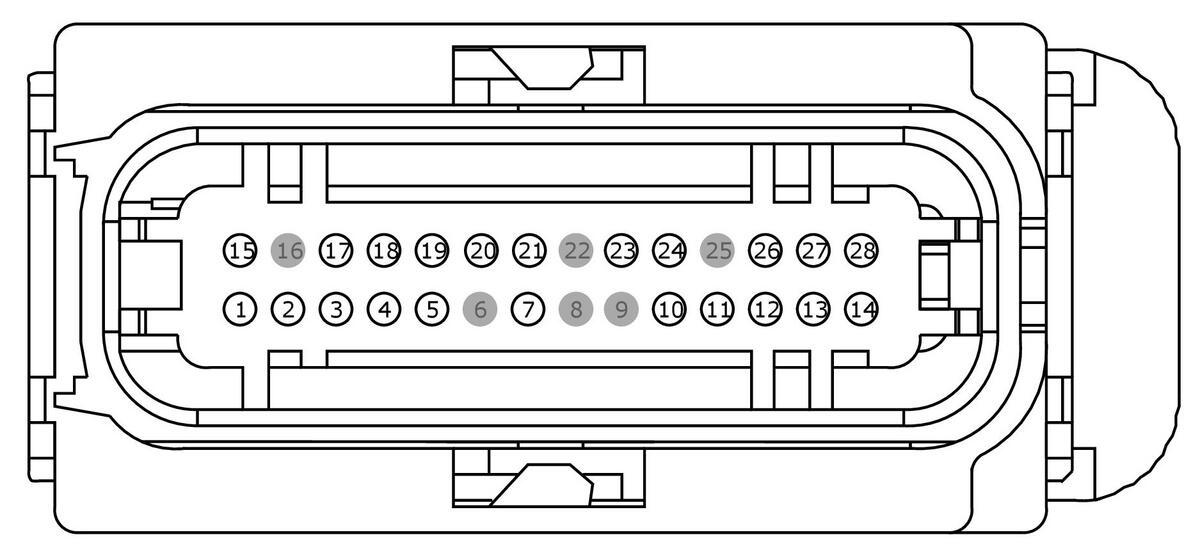

| 1 |
LE459 (GY) |
20 |
ECU - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (E-VREF3) |
6W8T-14474-BA |
| 2 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
6W8T-14474-BA |
| 2 |
VET27 (BN-GN) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
6W8T-14474-BA |
| 3 |
WET26 (BN-GN) |
20 |
SENSOR - OUTPUT SHAFT SPEED (OSS) |
6W8T-14474-BA |
| 4 |
WET28 (VT-OG) |
20 |
SENSOR - TRANSMISSION RANGE PARK 1 |
6W8T-14474-BA |
| 5 |
WET29 (GY-YE) |
20 |
SENSOR - TRANSMISSION RANGE PARK 2 |
6W8T-14474-BA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
RET24 (BN-BU) |
20 |
ECU - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |
6W8T-14474-BA |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
WET01 (YE-VT) |
20 |
ECU - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 |
6W8T-14474-BA |
| 11 |
WE520 (BN-WH) |
20 |
ECU - POWERTRAIN # LINE PRESSURE CONTROL |
6W8T-14474-BA |
| 11 |
WE520 (WH-RD) |
20 |
ECU - POWERTRAIN # LINE PRESSURE CONTROL |
6W8T-14474-BA |
| 12 |
WET03 (GY-OG) |
20 |
ECU - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 |
6W8T-14474-BA |
| 13 |
CET51 (WH) |
20 |
ECU - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC) |
6W8T-14474-BA |
| 14 |
CET25 (BU-GN) |
20 |
ECU - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
6W8T-14474-BA |
| 15 |
CET91 (YE-OG) |
20 |
ECU - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE |
6W8T-14474-BA |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
LET05 (WH-GN) |
20 |
ECU - TRANSMISSION # VOLTAGE REFERENCE A (VREF-A) |
6W8T-14474-BA |
| 18 |
CET44 (BU-BN) |
20 |
ECU - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 3 (SS3) |
6W8T-14474-BA |
| 19 |
VET97 (VT-OG) |
20 |
SENSOR - TRANSMISSION FLUID PRESSURE 1 |
6W8T-14474-BA |
| 20 |
VET98 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID PRESSURE 2 |
6W8T-14474-BA |
| 21 |
RE429 (GY-OG) |
20 |
ECU - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) |
6W8T-14474-BA |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
CET94 (WH-OG) |
20 |
ECU - POWERTRAIN # ONE-WAY CLUTCH CONTROL HYDRAULIC |
6W8T-14474-BA |
| 24 |
CET11 (GN-OG) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 7 (PC7) [EPC] [VFS] |
6W8T-14474-BA |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
WET04 (YE) |
20 |
ECU - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 |
6W8T-14474-BA |
| 27 |
WET02 (VT-WH) |
20 |
ECU - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 |
6W8T-14474-BA |
| 28 |
CET49 (BN) |
20 |
ECU - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) |
6W8T-14474-BA |
