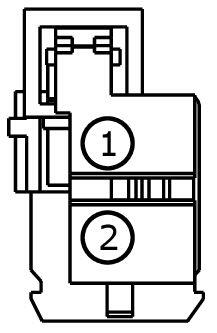

Connector End View C177 - Park Lock Pawl Solenoid
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C177 | PARK LOCK PAWL SOLENOID | BU | 7G276 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1670144-1 | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CET91 (YE) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE | 1670144-1 | ||||
| 2 | CET44 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # PARK LOCK PAWL SOLENOID CONTROL | 1670144-1 | ||||
Available Pigtail Kits
