Glove Compartment: Removal

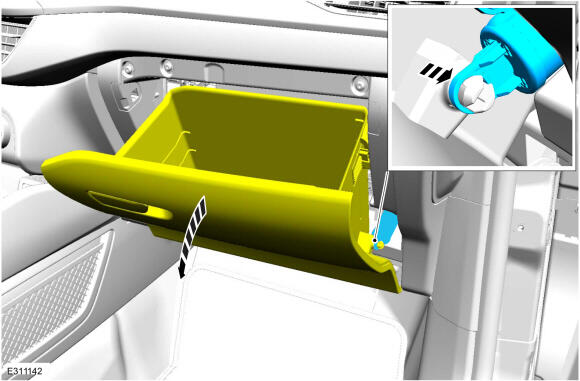

  1. Open the glove compartment and remove the check strap.
    GFD830314Courtesy of FORD MOTOR COMPANY

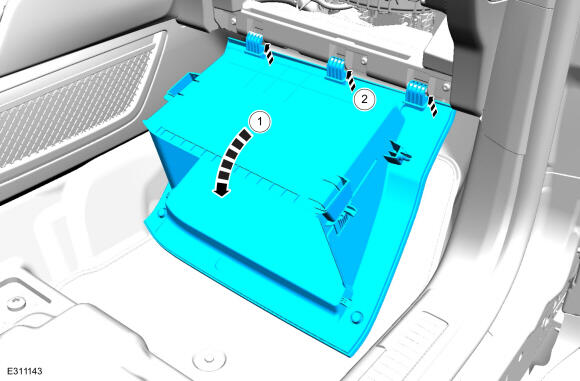

    1. Fully lower the glove compartment.
    2. Lift glove compartment off hinge piviot.
    GFD830315Courtesy of FORD MOTOR COMPANY

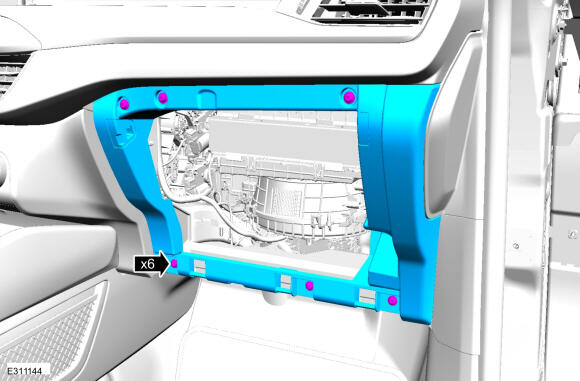

  3. Remove the bolts and the glove compartment close out.

    Torque

    : 2.5 Nm

GFD830316Courtesy of FORD MOTOR COMPANY
