Auxiliary Power Point: Removal

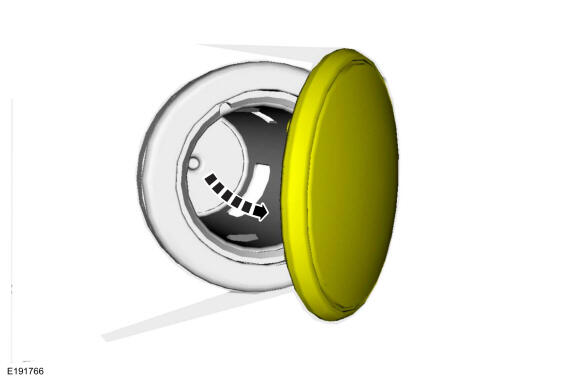

  1. Open the power point cover.
    GFD831392Courtesy of FORD MOTOR COMPANY

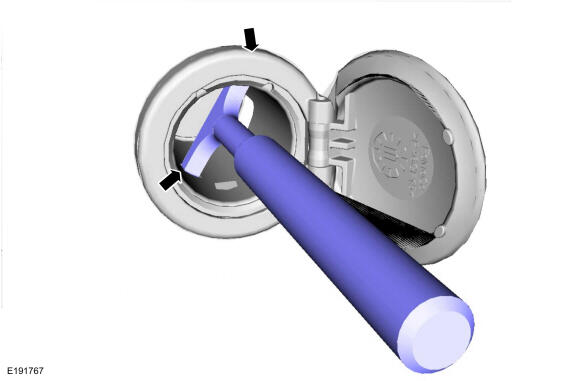

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket. Remove Suggested Tool: 501-194 Remover, Power Point.
    GFD831393Courtesy of FORD MOTOR COMPANY

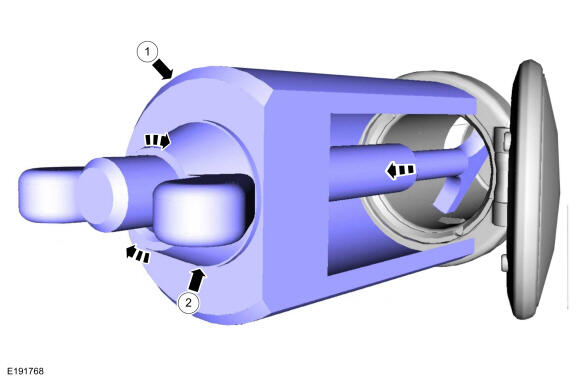

    1. Install the receiver cup.
    2. Install and tighten the wing nut. Remove Suggested Tool: 501-194 Remover, Power Point.
    GFD831394Courtesy of FORD MOTOR COMPANY

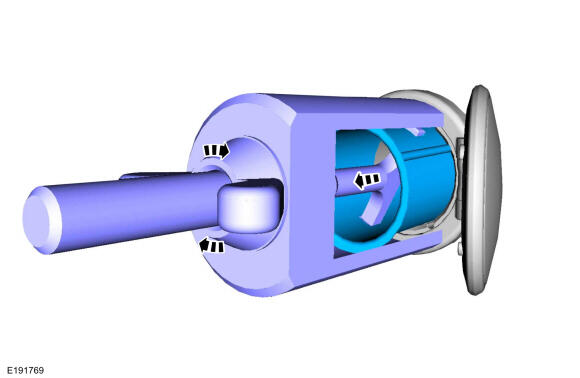

  4. Tighten the wing nut to pull the power point socket out of the retainer. Remove Suggested Tool: 501-194 Remover, Power Point.
    GFD831395Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD831396Courtesy of FORD MOTOR COMPANY
