Transmission Fluid Level Check
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Funnel |
|---|
Materials
| Name | Specification |
|---|---|
| Automatic Transmission Fluid | WSS-M2C949-A, |
Check
- Connect the diagnostic scan tool to the vehicle. Monitor the TFTPID.
- With the engine running in PARK on a level surface make sure the transmission is at normal operating temperature 85-93deg. C (185-200deg. F). If necessary, drive the vehicle until the transmission is at normal operating temperature 85-93deg.C (185-200deg.F).
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the air cleaner. Refer to: Air Cleaner
.

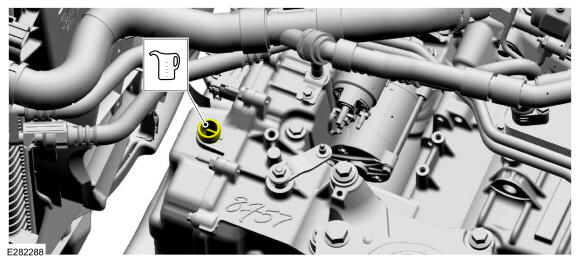

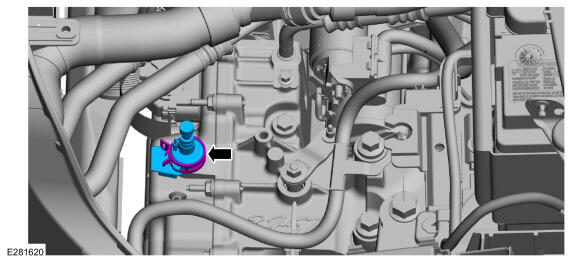

- Remove the transmission vent.
- Install the air cleaner. Refer to: Air Cleaner
.
- Remove the retainers and the underbody shield.

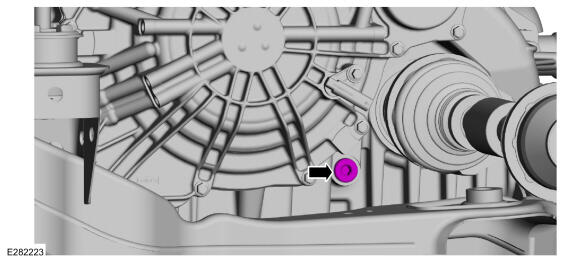

- With the engine running in PARK, remove the oil leveling plug.
- Add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is running down the transmission case. Use the General Equipment: Funnel
Material: Automatic Transmission Fluid (WSS-M2C949-A,)
- See Video Below multimedia:A supplement to the article is available.NOTE: Transmission fluid level correct.

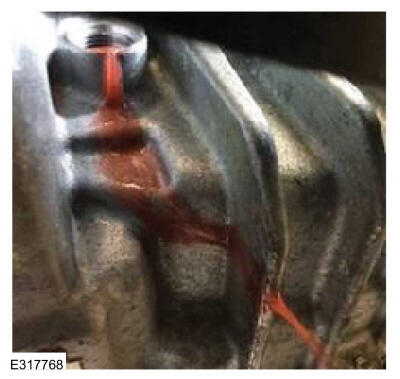

Transmission fluid level correct.
-
NOTE: Transmission fluid overfilled.

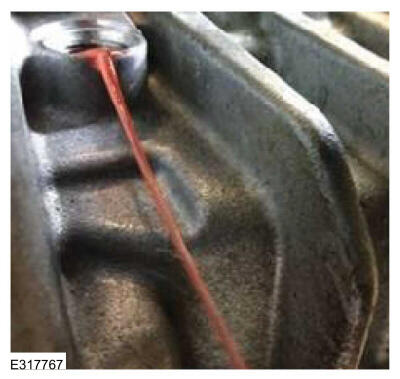

Transmission fluid overfilled.
-
NOTE: Transmission fluid level low.

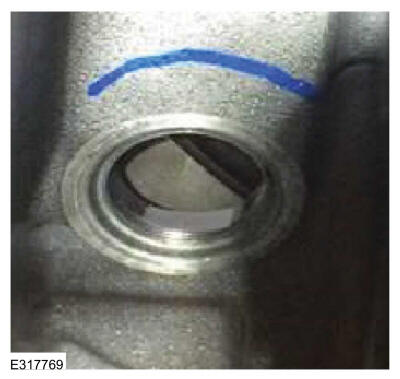

Transmission fluid level low.
- Install the oil leveling plug.
Torque: 40 Nm
- Add 1L (2 pt) of clean transmission fluid.
Material: Automatic Transmission Fluid (WSS-M2C949-A,)
- Remove the air cleaner. Refer to: Air Cleaner
- Install the transmission vent.
- Install the air cleaner. Refer to: Air Cleaner
- Install the underbody shield and the retainers.
