Wastegate Vacuum Sensor: Installation

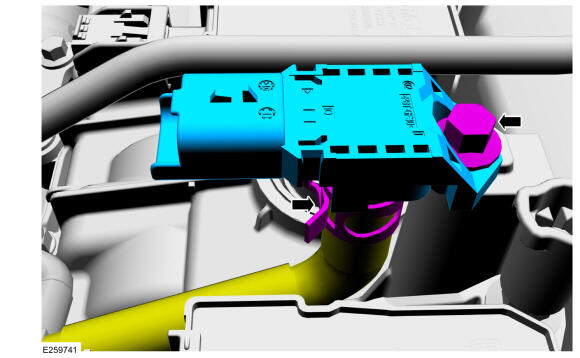

- Connect the wastegate vacuum sensor hose. Install the wastegate vacuum sensor, then install and tighten the wastegate vacuum sensor retainer.Use the General Equipment: Hose Clamp Remover/Installer
Torque
: 7 Nm

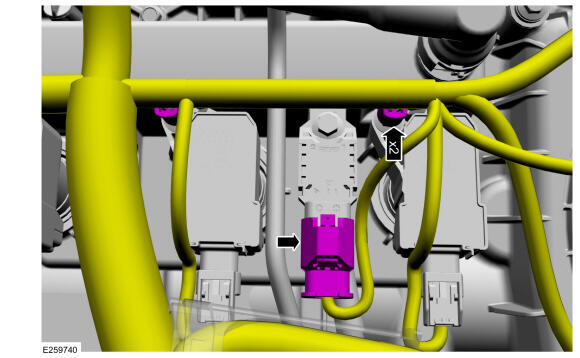

- Attach the wire harness retainers. Connect the wastegate vacuum sensor electrical connector.
- If equipped, install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque
:Tighten the nut to: : 4.8 NmTighten the bolt to: : 11 Nm
