Wastegate Control Valve Solenoid: Installation

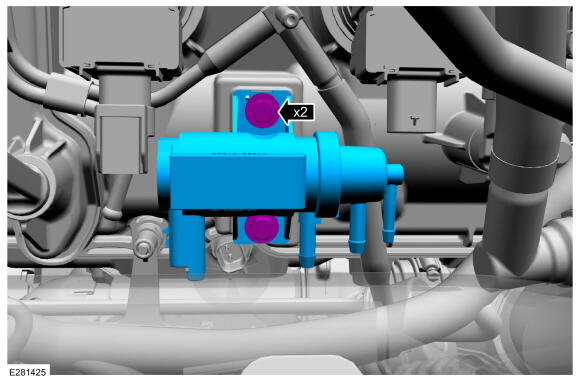

- Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retainers.
Torque
: 7 Nm

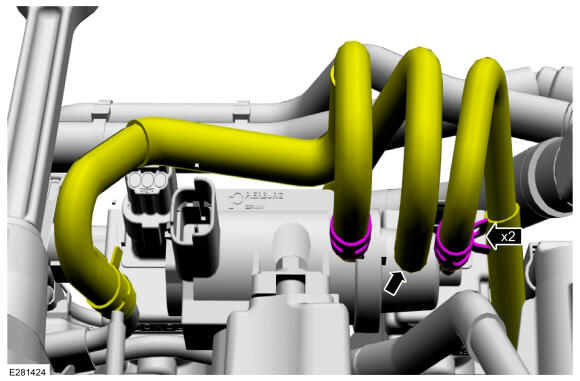

- Connect the wastegate control valve solenoid hoses.Use the General Equipment: Hose Clamp Remover/Installer

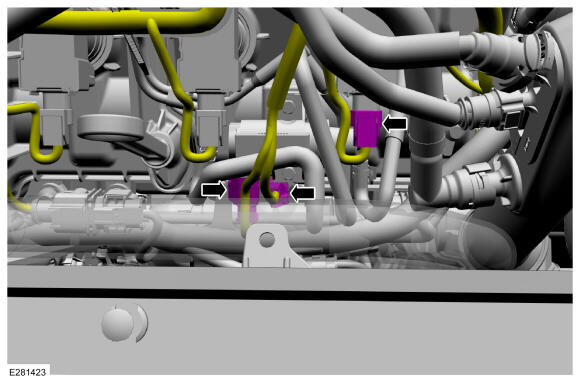

- Connect the wastegate control valve solenoid, the ignition coil and the cylinder head temperature sensor electrical connectors.

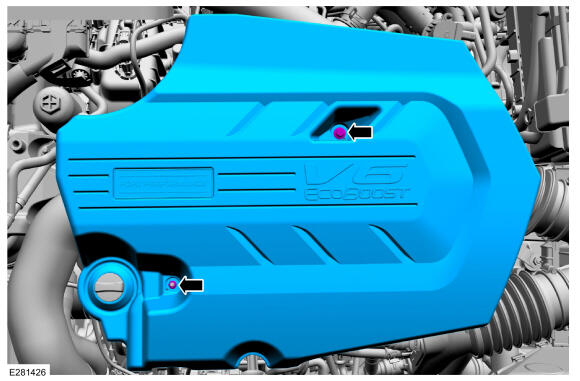

- If equipped, install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque
:Tighten the nut to: : 4.8 NmTighten the bolt to: : 11 Nm
