Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Hose Clamp(s)
Punch
Copper Hammer
  1. Remove the front subframe. Refer to: Front Subframe .

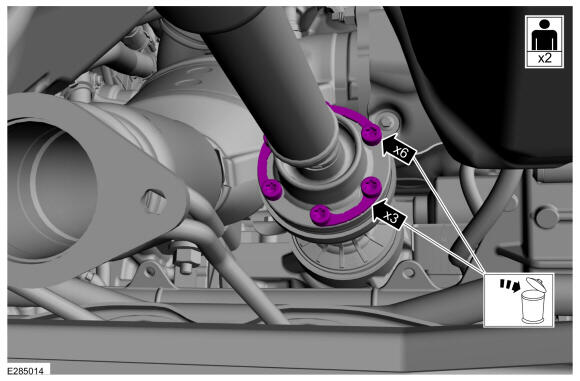

  2. NOTE: The installation step requires the aid of another technician.

    Remove and discard the driveshaft to PTU bolts and retaining straps.

    Torque: 35 Nm

    GFD811190Courtesy of FORD MOTOR COMPANY

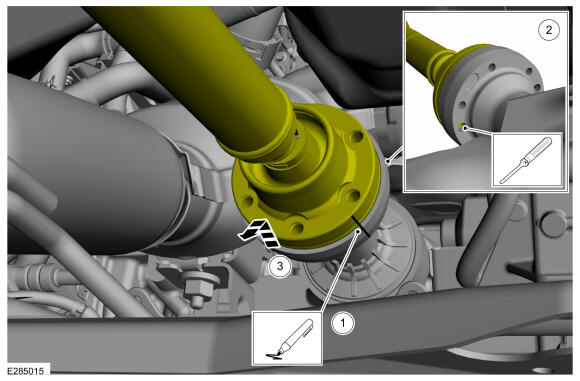

  3. Separate the driveshaft from the PTU flange.

    1. NOTE: Make sure that the component aligns with the installation mark.

      Index-mark the driveshaft and PTU flange.

    2. NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.

      Using general equipment, separate the driveshaft from the PTU flange. Use the General Equipment: Punch Use the General Equipment: Copper Hammer

    3. Remove the driveshaft from the PTU flange.

    GFD811191Courtesy of FORD MOTOR COMPANY
  4. Remove the catalytic converter. Refer to: Catalytic Converter .
  5. Disconnect the auxillary pump connector and retainers.
    GFD814274Courtesy of FORD MOTOR COMPANY
  6. Disconnect the PTU motor connectors.
    GFD814310Courtesy of FORD MOTOR COMPANY
  7. If equipped, disconnect the PTU temperature sensor and retainers.
    GFD814311Courtesy of FORD MOTOR COMPANY

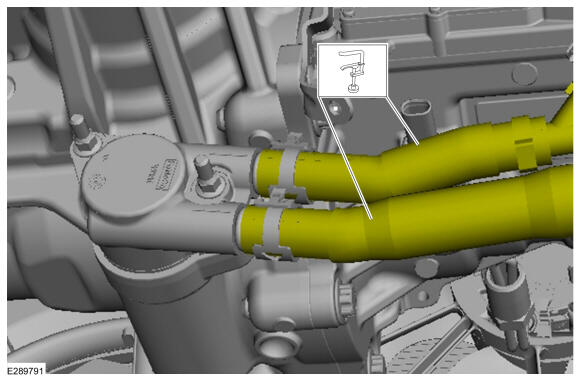

  8. Clamp the hoses. Use the General Equipment: Hose Clamp(s)
    GFD814277Courtesy of FORD MOTOR COMPANY
  9. NOTE: Be prepared to collect escaping fluid.

    Release the hose clamps and position aside the PTU cooling system hoses.

    GFD814278Courtesy of FORD MOTOR COMPANY
  10. Remove the pump mounting nuts and position aside coolant pump along with hoses.
    GFD814312Courtesy of FORD MOTOR COMPANY

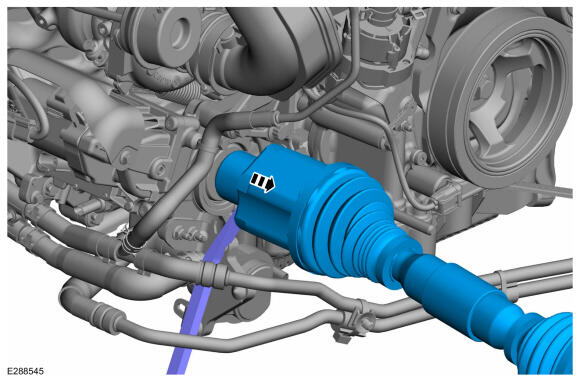

  11. Separate the halfshaft from the intermediate shaft. Position aside and support the halfshaft.
    GFD811270Courtesy of FORD MOTOR COMPANY

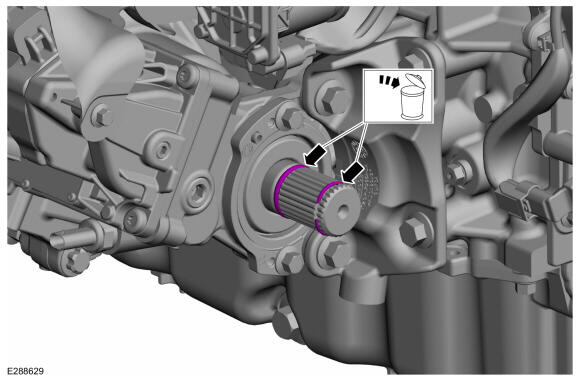

  12. Remove and discard the circlip and O-Ring seal from the intermediate shaft.
    GFD811264Courtesy of FORD MOTOR COMPANY
  13. Remove the intermediate shaft. Refer to: Intermediate Shaft .
  14. Disconnect and position aside the PTU vent hose.
    GFD814313Courtesy of FORD MOTOR COMPANY
  15. Remove the vent hose retainer.
    GFD814314Courtesy of FORD MOTOR COMPANY
  16. Remove the PTU support bracket bolts and the PTU support bracket.
    GFD814315Courtesy of FORD MOTOR COMPANY
  17. Remove the PTU bolts.
    GFD814316Courtesy of FORD MOTOR COMPANY
  18. NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.

    Remove the PTU bolts and the PTU.

    GFD814317Courtesy of FORD MOTOR COMPANY

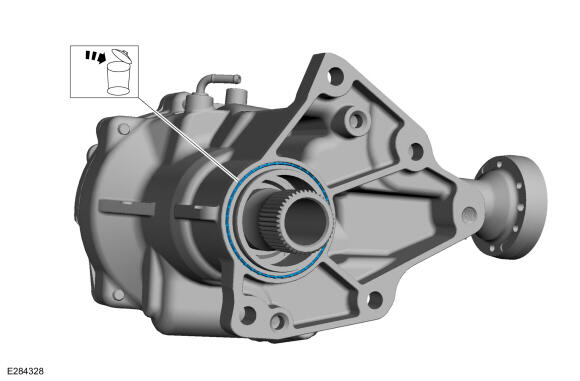

  19. Remove and discard the PTU to transmission compression seal.
    GFD814318Courtesy of FORD MOTOR COMPANY
  20. NOTE: This step is only necessary when installing a new component.

    Remove the PTU heat shield bolts and PTU heat shield.

    Torque: 10 Nm

    GFD814319Courtesy of FORD MOTOR COMPANY
  21. NOTE: This step is only necessary when installing a new component.

    If equipped remove the PTU temperature sensor harness bracket.

    GFD814270Courtesy of FORD MOTOR COMPANY
  22. NOTE: This step is only necessary when installing a new component.
    NOTE: Be prepared to collect escaping fluid.

    If equipped remove the PTU oil temperature sensor.

GFD814320Courtesy of FORD MOTOR COMPANY
