Wastegate Control Actuator: Installation

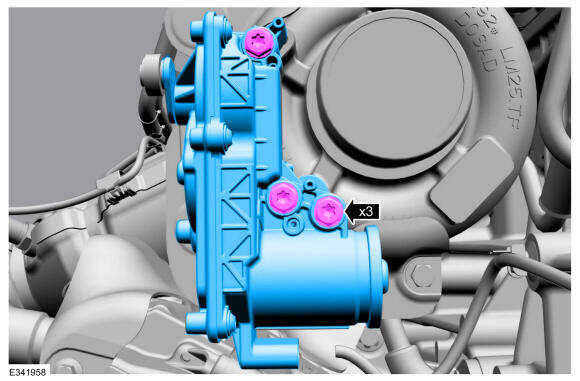

Install the wastegate control actuator, then install and tighten the new bolts.
Torque

: 7 Nm

Courtesy of FORD MOTOR COMPANY

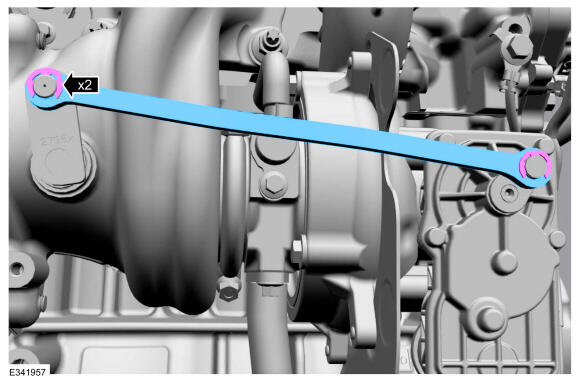

Install the new wastegate control actuator linkage, then install the new e-clips.

Courtesy of FORD MOTOR COMPANY

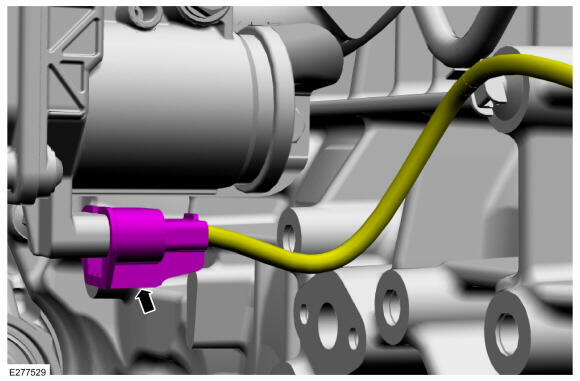

Connect the wastegate control actuator electrical connector.

Courtesy of FORD MOTOR COMPANY
1. If the studs came out with the nuts, remove the nuts from the studs.
2. If the studs came out with the nuts, install and tighten the studs.
  Torque

  : 18 Nm

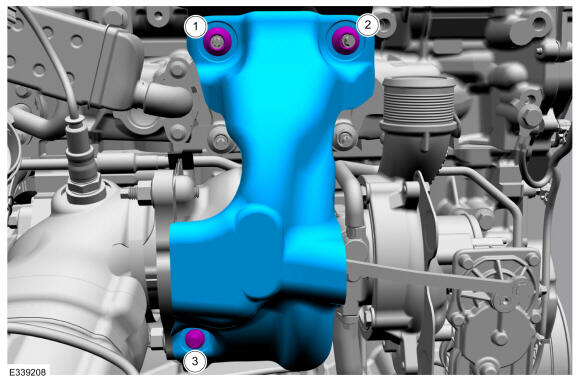

3. Install the heat shield, then install and tighten the nuts and bolt.
  Torque

  :Stage 1: Tighten 1 and 2 to : 19 NmStage 2: Tighten 1 and 2 to : 53 NmStage 3: Re-tighten 1 and 2 to : 53 NmStage 4: Tighten 3 to : 11 Nm
Courtesy of FORD MOTOR COMPANY

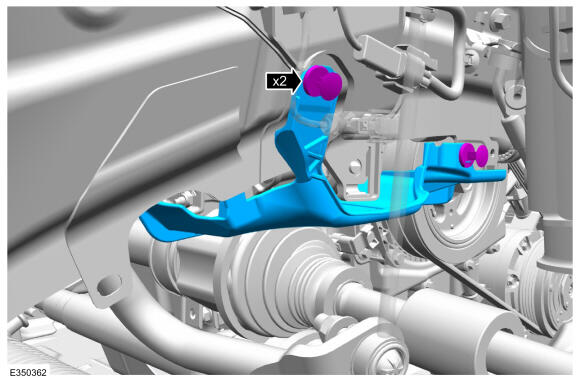

Install the shield, then install the retainers.

Courtesy of FORD MOTOR COMPANY

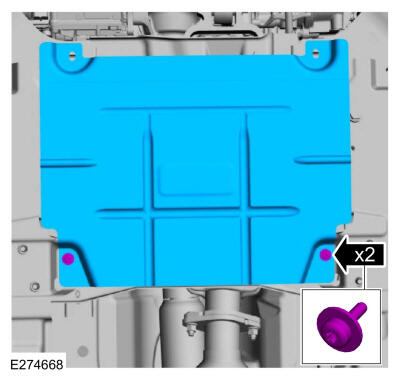

Install the underbody shield, then install the retainers.

Courtesy of FORD MOTOR COMPANY

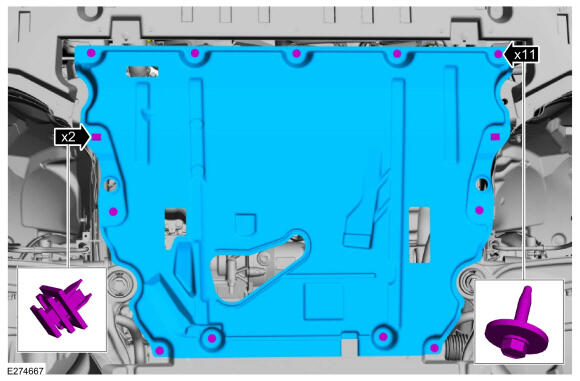

Install the underbody shield, then install the retainers.

Courtesy of FORD MOTOR COMPANY
Install the right front tire. Refer to: Wheel and Tire .
Install the cowl panel. Refer to: Cowl Panel .
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
NOTE: Substantial opening and closing torque is applied by this system. To prevent injury, be careful to keep fingers away from wastegate mechanism when actuated. Failure to follow these instructions may result in personal injury.

With the KOEO, using a diagnostic scan tool, clear the PCM DTC's and reset the KAM.
