Section 139 (Charging System - General Information)
>>
Description And Operation
>>
Charging System
Charging System
WARNING:
This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Component Location

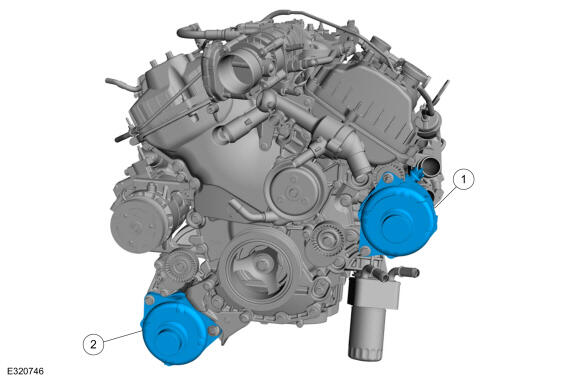

3.5L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Primary generator
2
Secondary generator

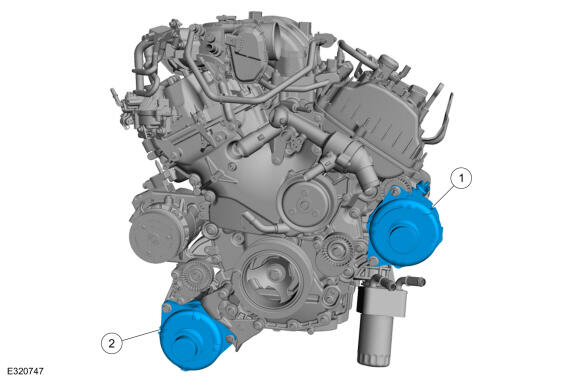

3.5L Duratec
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Primary generator
2
Secondary generator
