Network Message Chart
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

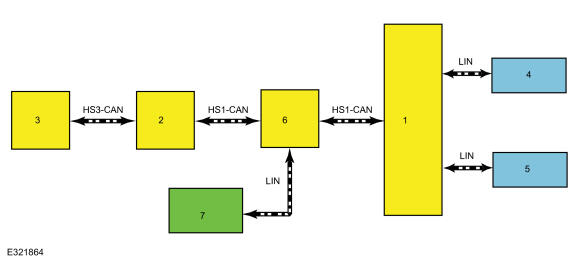

| Item | Description |
|---|---|
| 1 | PCM |
| 2 | GWM |
| 3 | IPC |
| 4 | Primary generator |
| 5 | Secondary generator |
| 6 | BCM |
| 7 | Battery Current Sensor |
Module Network Input Messages -- Body Control Module (BCM)
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Alternator fault | PCM | The PCM has detected a fault in the generator or generator circuits. |
Module Network Input Messages -- Instrument Panel Cluster (IPC)
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Power system status | BCM | Reports any generator/charging system faults. Used for charging system fault indicator. |
| Load Shed Request | BCM | Used to indicate what level of load shed is commanded. |
Module Network Input Messages -- Powertrain Control Module (PCM)
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Load Shed Request | BCM | Used to indicate what level of load shed is commanded. |
