Battery - Vehicles With: Single Battery: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery .
  2. Refer to: FRONT SEAT .

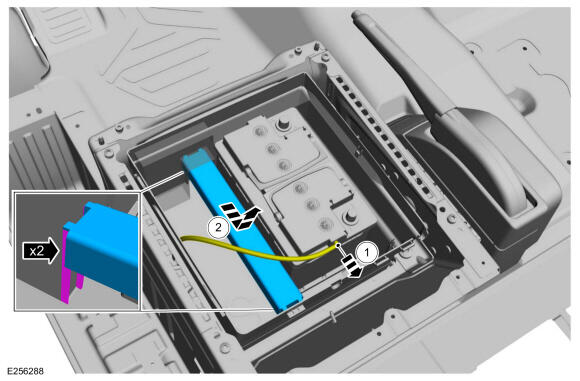

    1. Disconnect the battery vent hose from the battery.
    2. Remove the battery spacer.
    GFD840436Courtesy of FORD MOTOR COMPANY

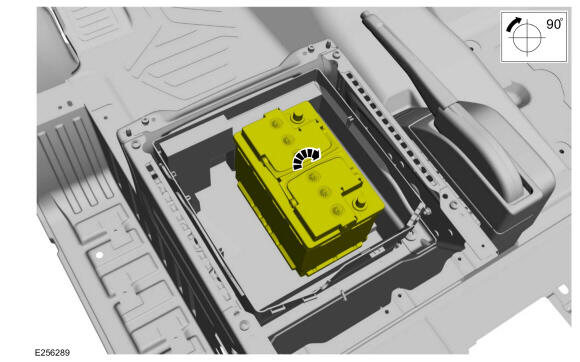

  4. Position the battery.
    GFD840437Courtesy of FORD MOTOR COMPANY

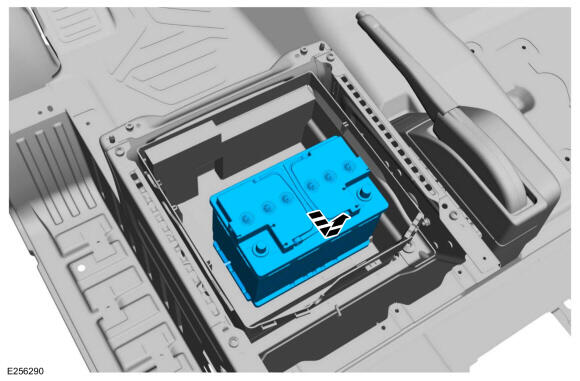

  5. Remove the battery.
GFD840438Courtesy of FORD MOTOR COMPANY
