Transmission Controls - 10R80

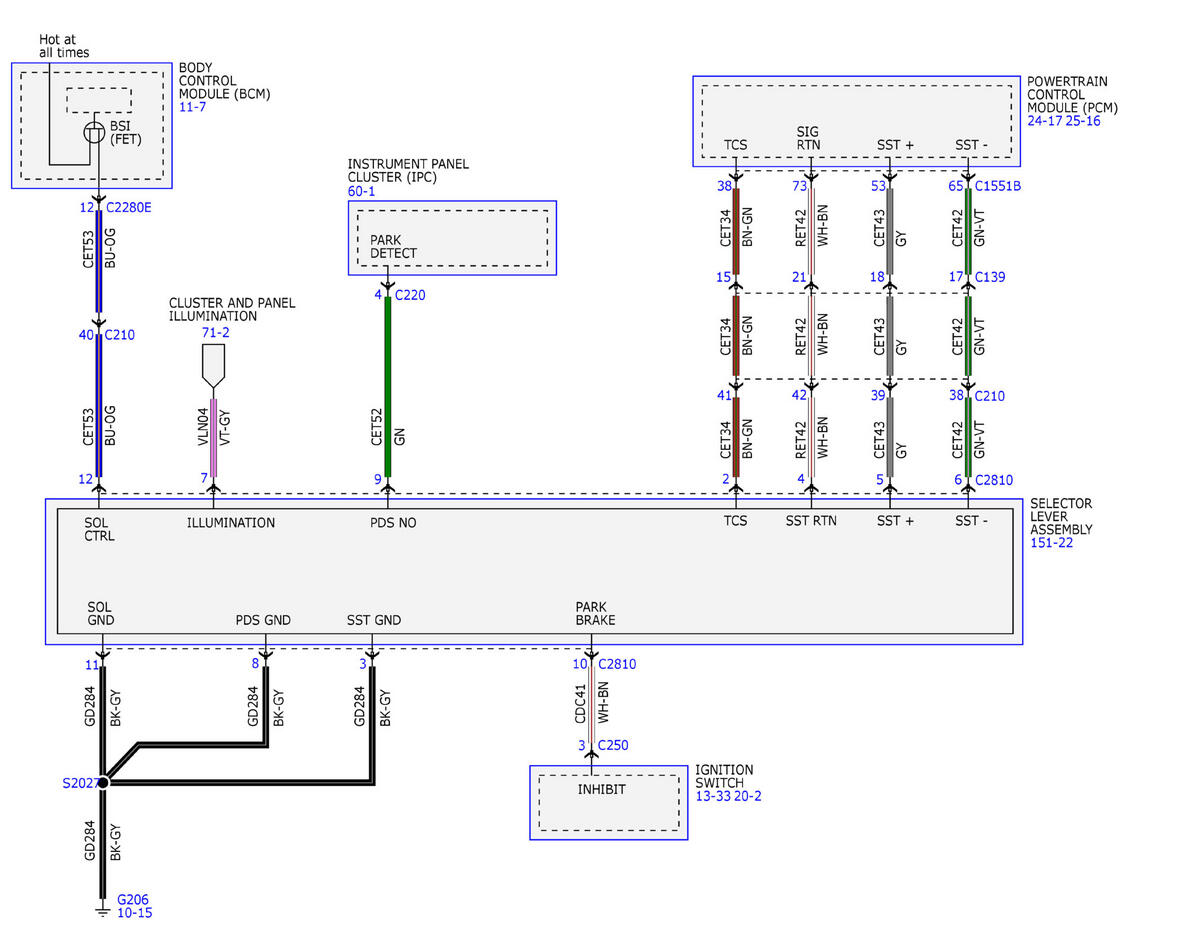

Fig 1: No Caption
GFDWR239344Courtesy of FORD MOTOR COMPANY

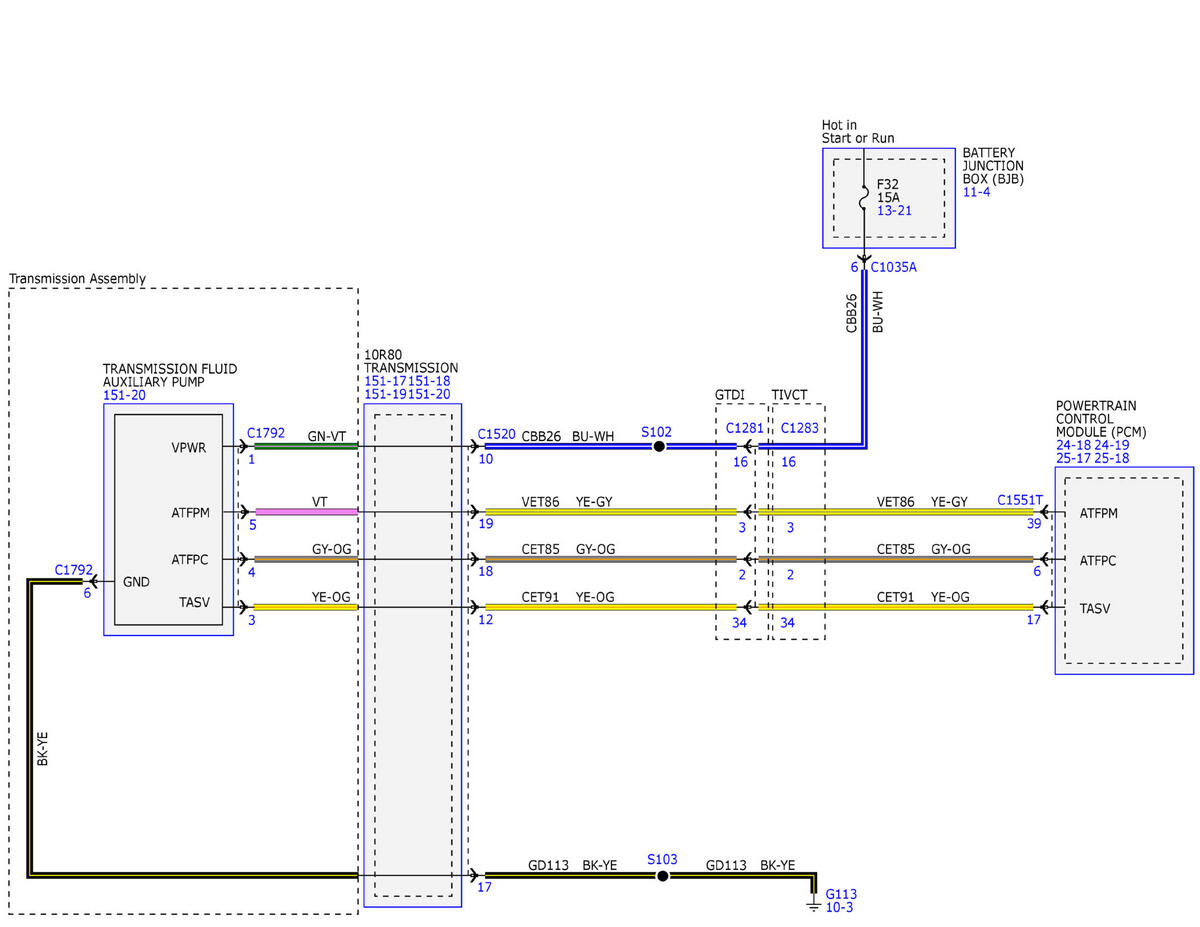

Fig 2: No Caption
GFDWR239345Courtesy of FORD MOTOR COMPANY

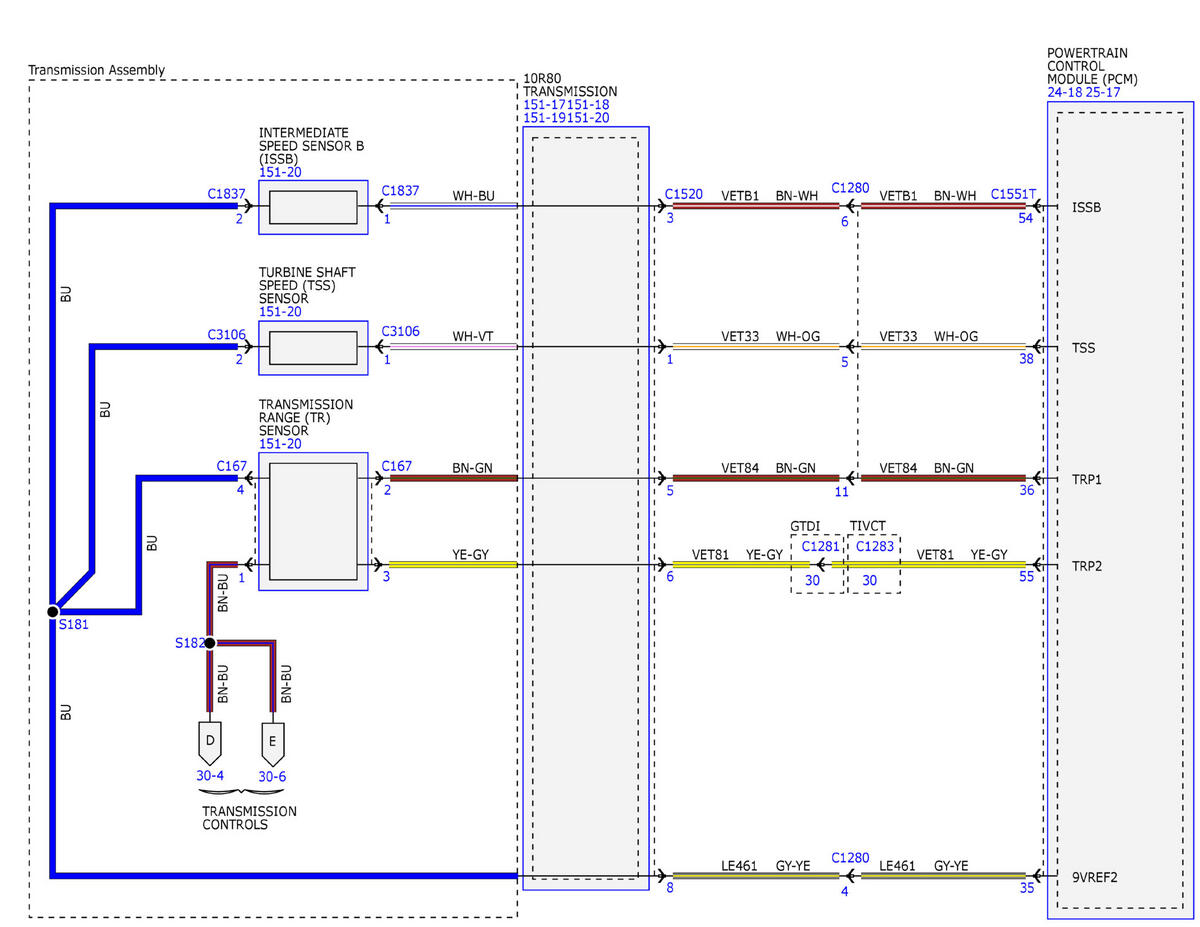

Fig 3: No Caption
GFDWR239346Courtesy of FORD MOTOR COMPANY

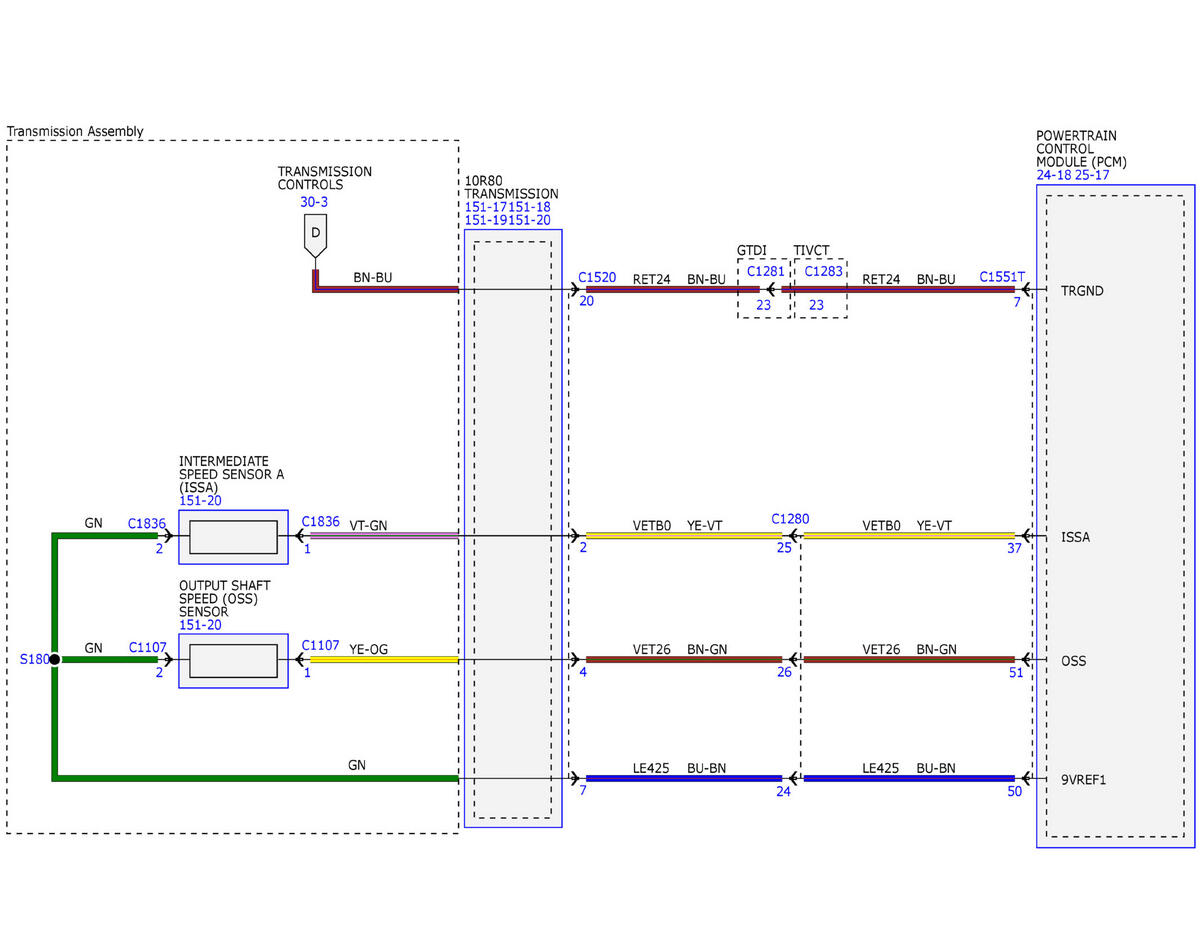

Fig 4: No Caption
GFDWR239347Courtesy of FORD MOTOR COMPANY

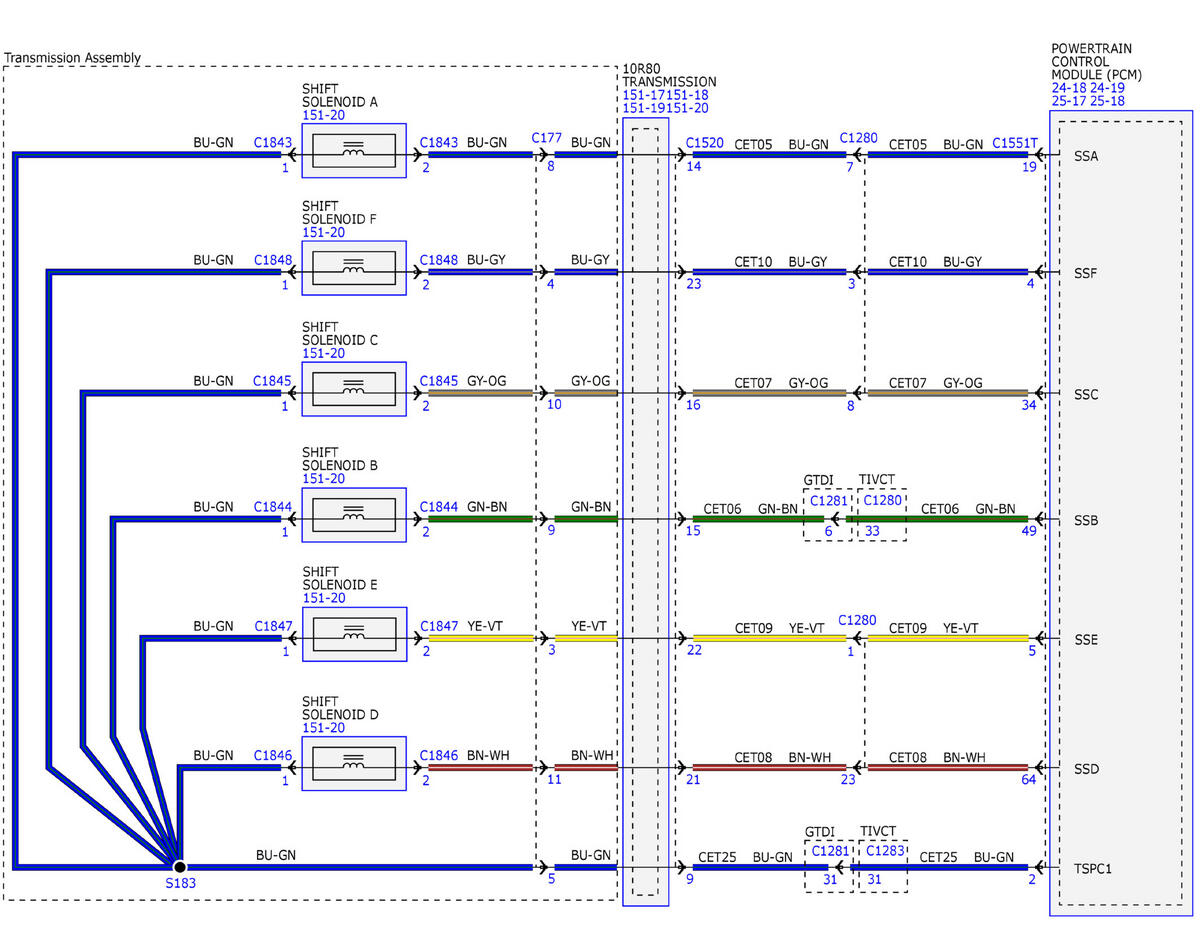

Fig 5: No Caption
GFDWR239348Courtesy of FORD MOTOR COMPANY

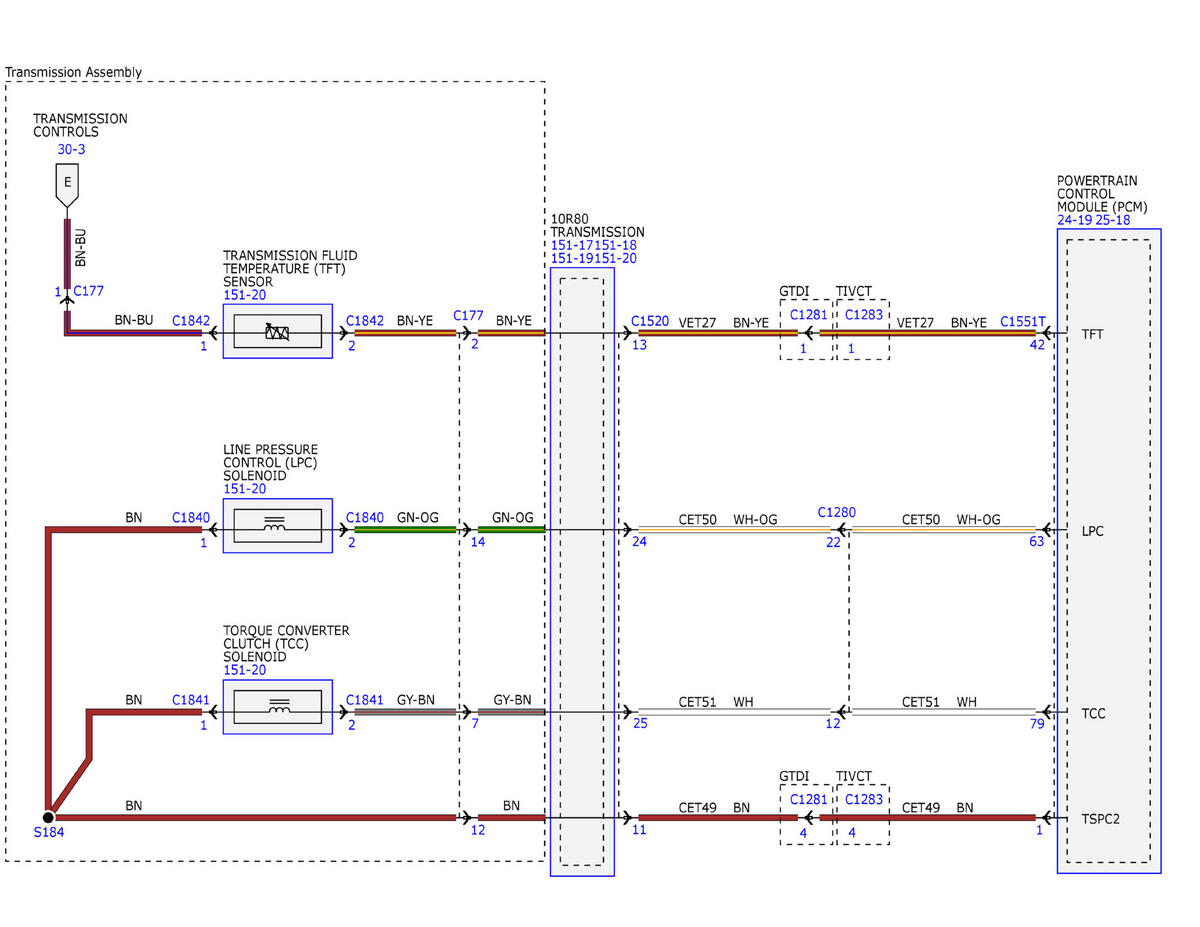

Fig 6: No Caption
GFDWR239349Courtesy of FORD MOTOR COMPANY

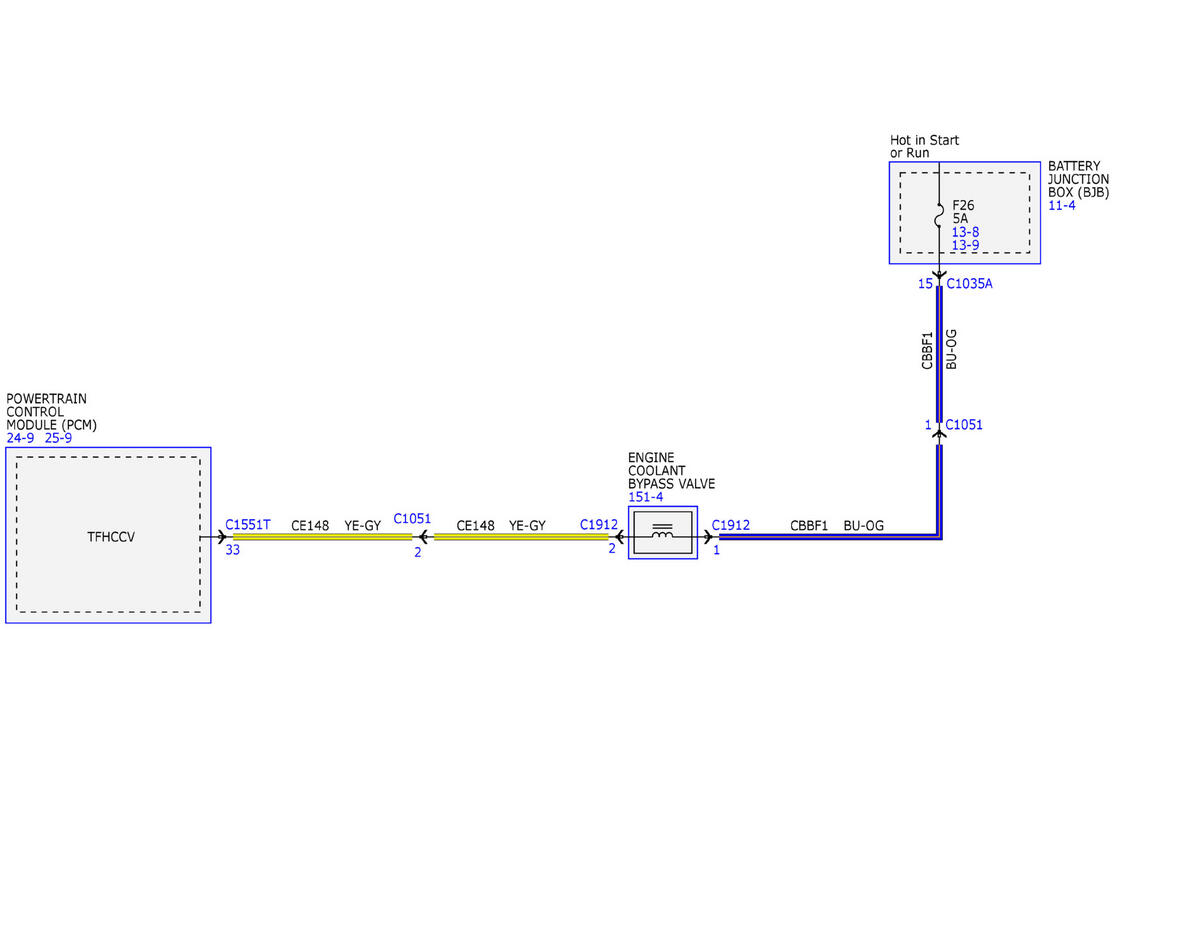

Fig 7: No Caption
GFDWR239350Courtesy of FORD MOTOR COMPANY
