Instrument Cluster

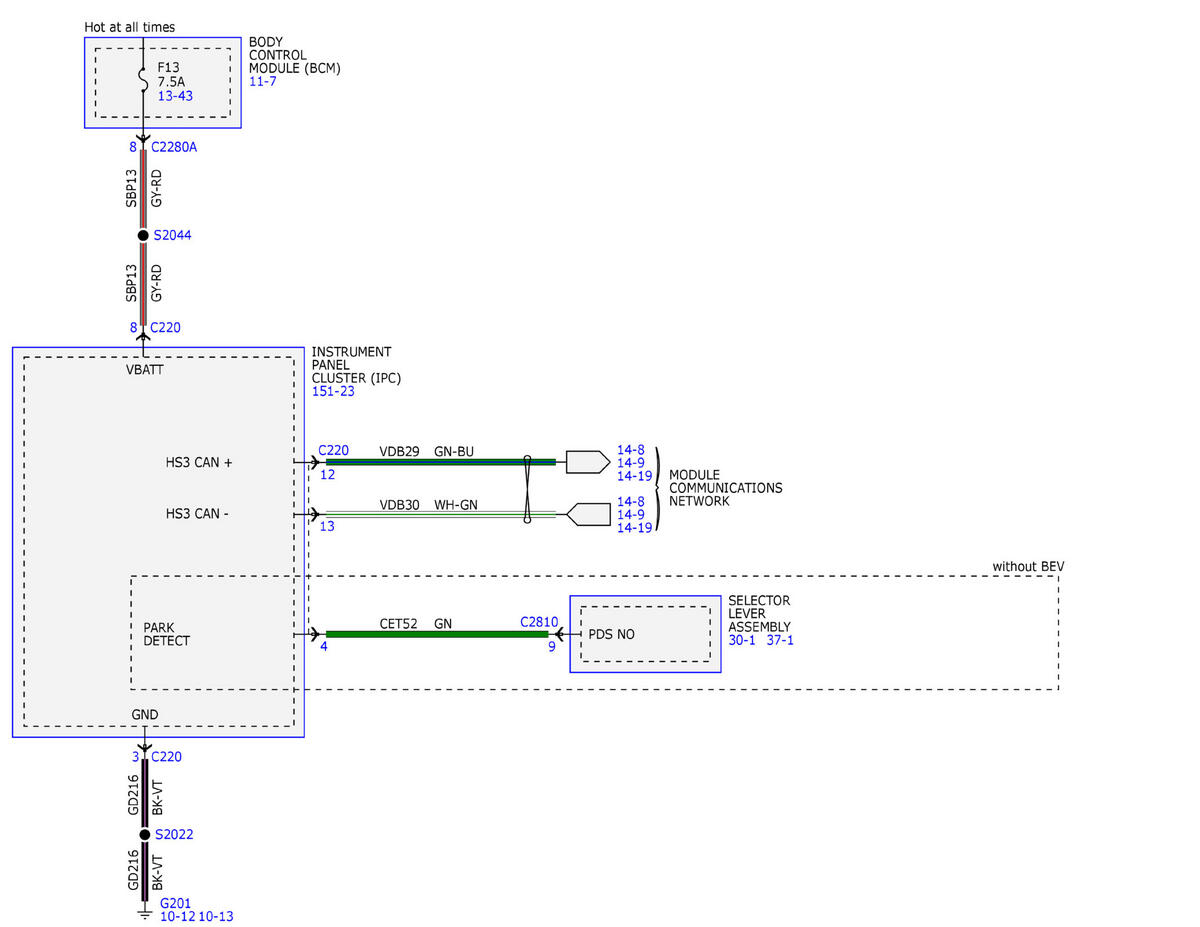

Fig 1: No Caption
GFDWR239120Courtesy of FORD MOTOR COMPANY

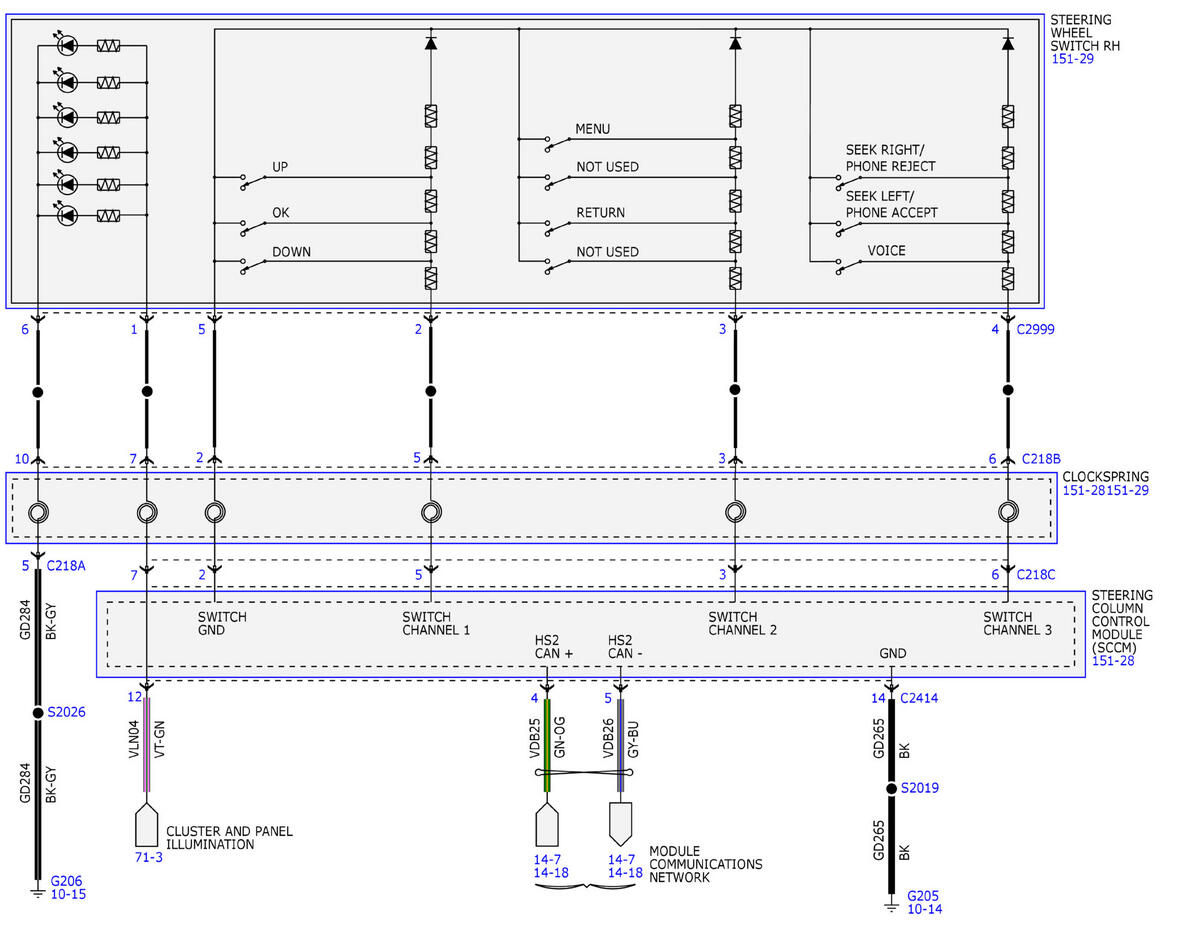

Fig 2: No Caption
GFDWR239121Courtesy of FORD MOTOR COMPANY

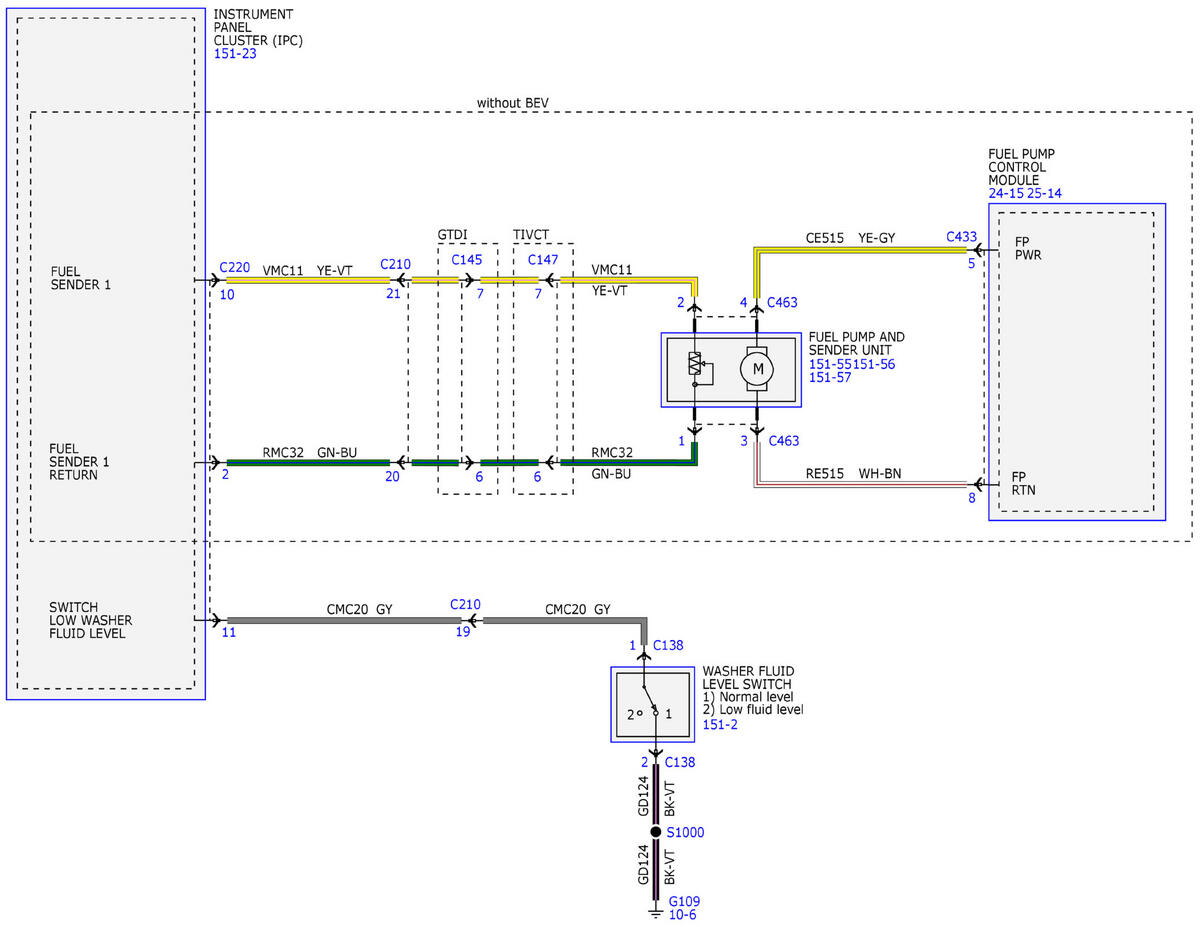

Fig 3: No Caption
GFDWR239122Courtesy of FORD MOTOR COMPANY

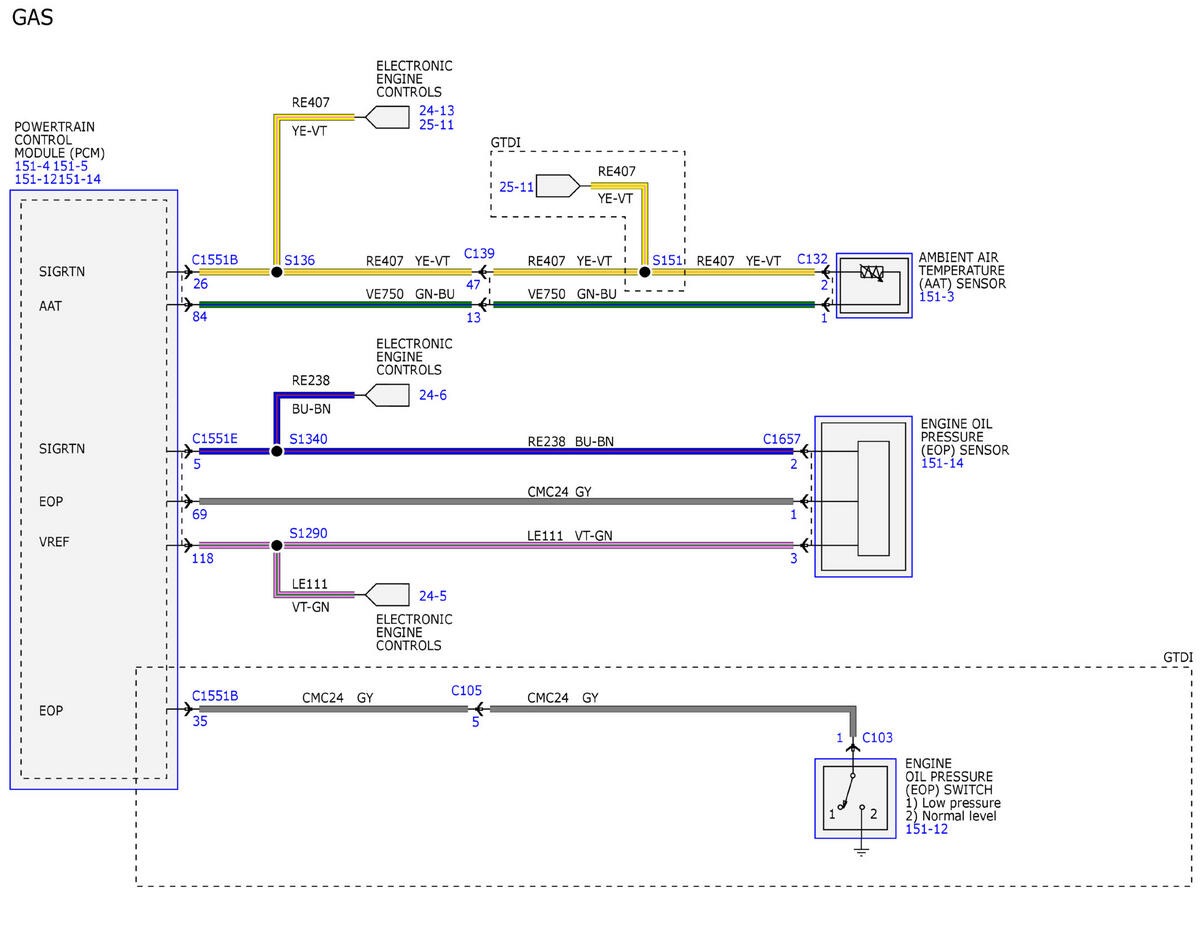

Fig 4: No Caption
GFDWR239123Courtesy of FORD MOTOR COMPANY

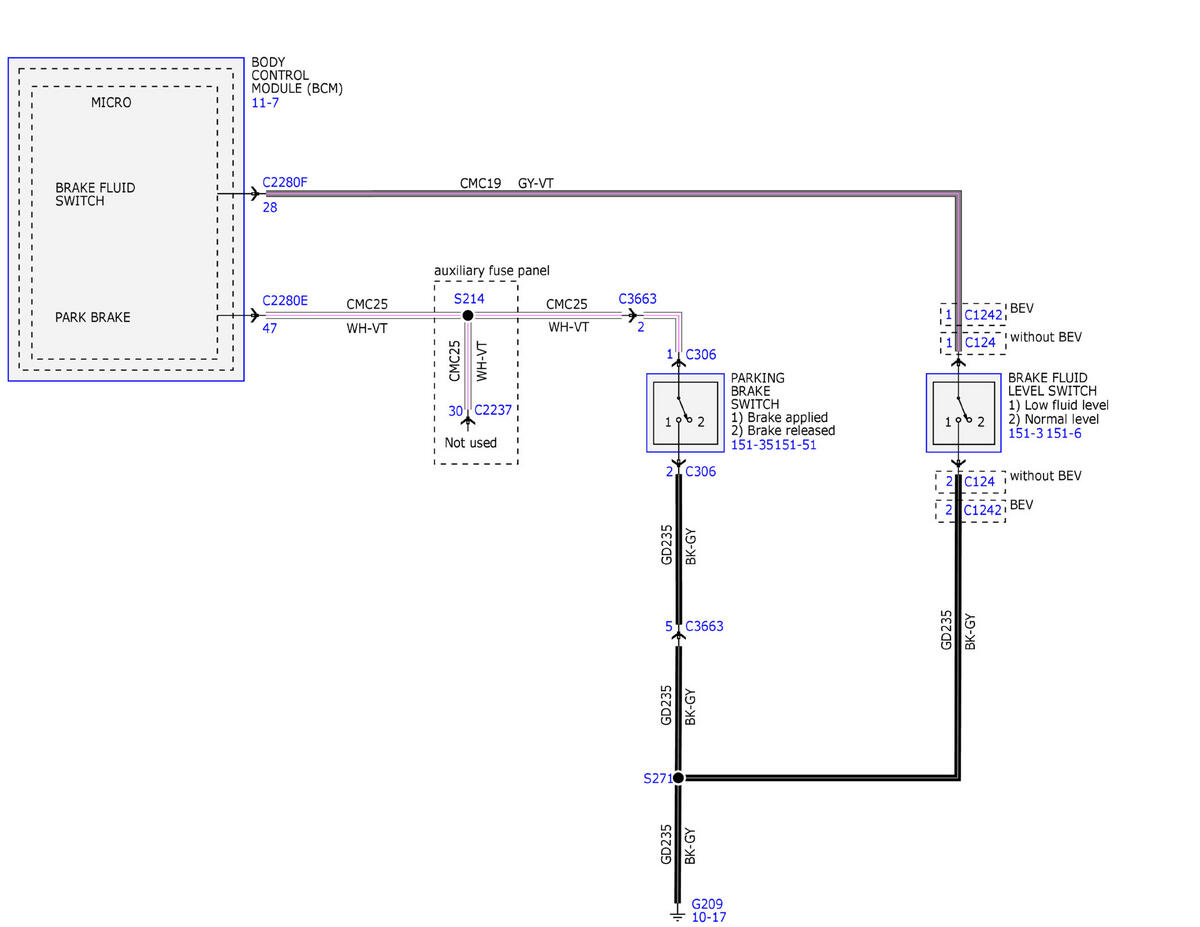

Fig 5: No Caption
GFDWR239124Courtesy of FORD MOTOR COMPANY

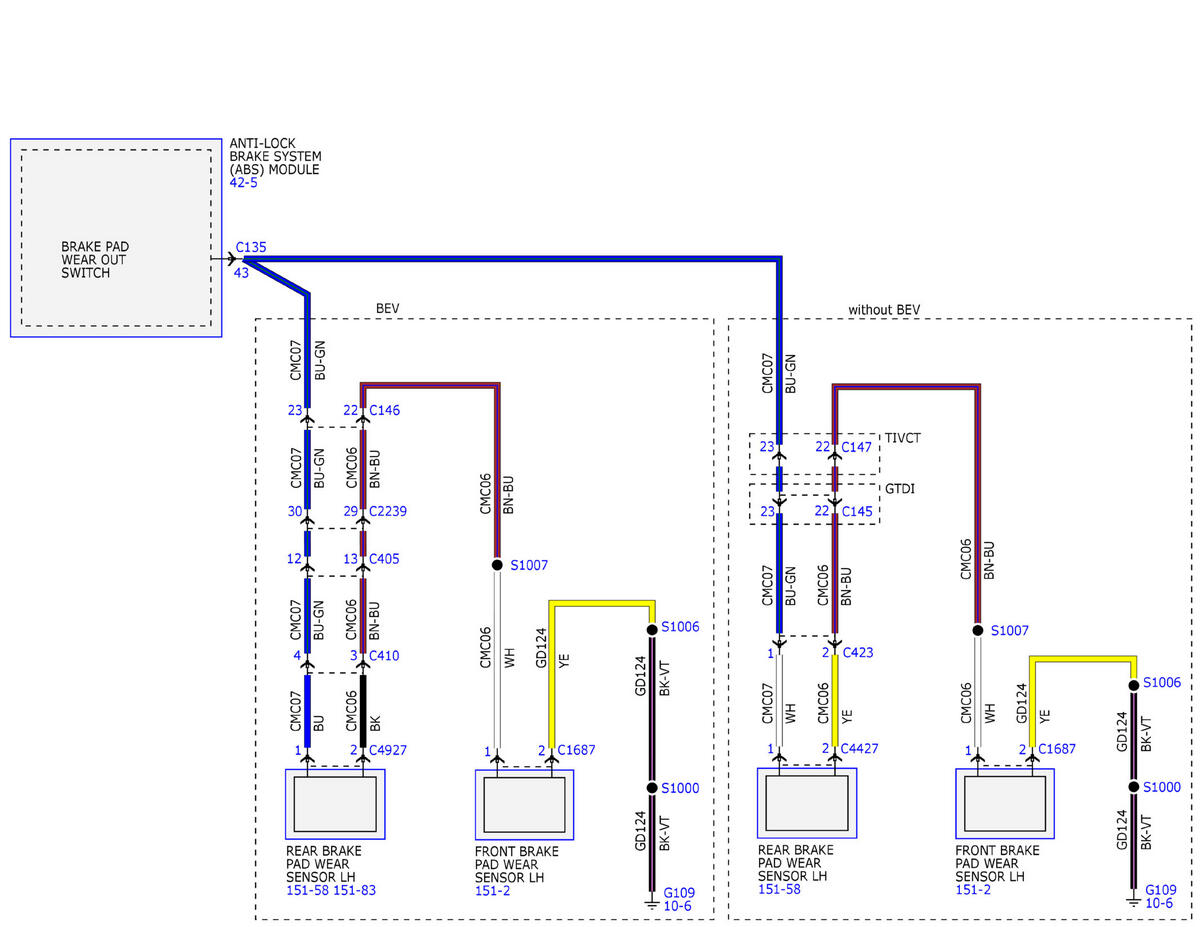

Fig 6: No Caption
GFDWR239125Courtesy of FORD MOTOR COMPANY
