Electronic Engine Controls - 3.5L TIVCT

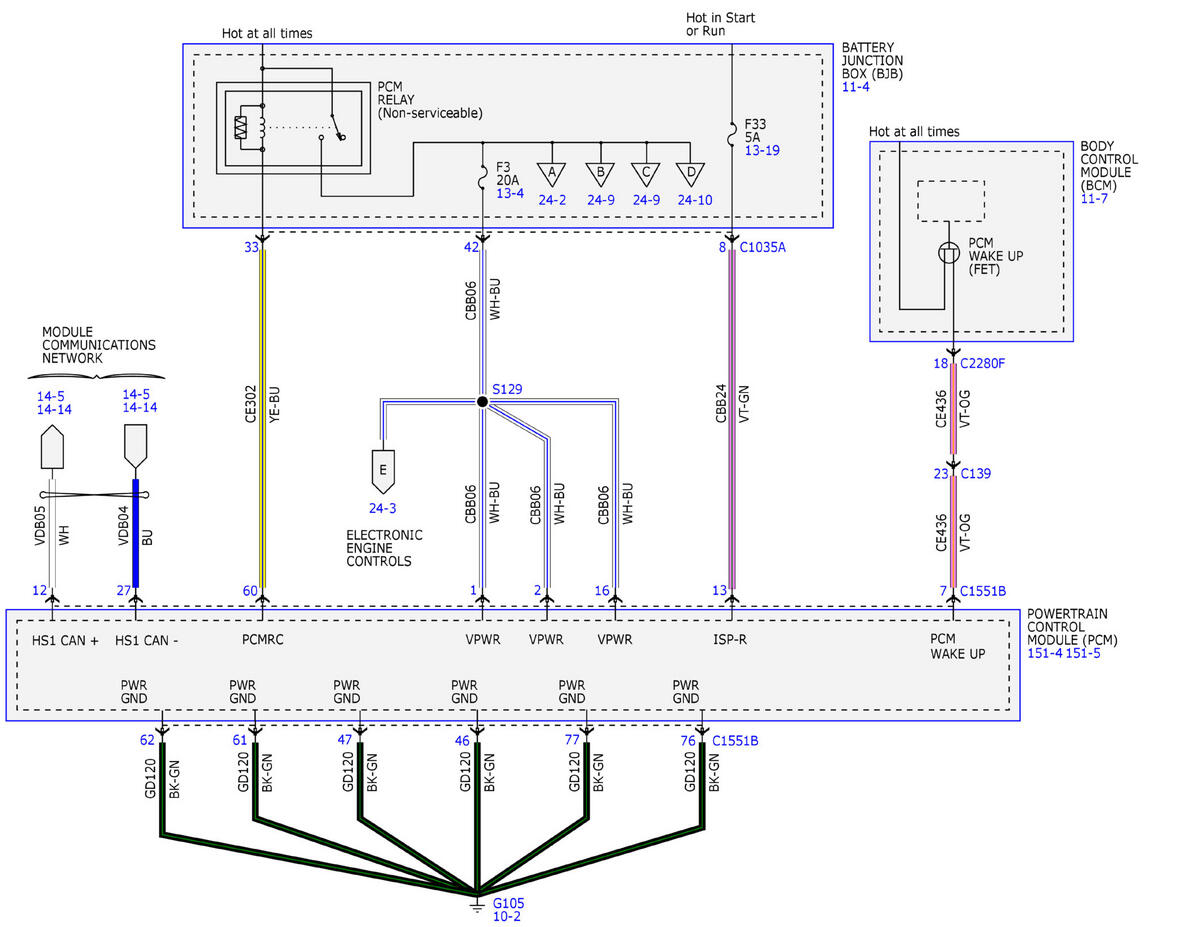

Fig 1: No Caption

GFDWR239049

Courtesy of FORD MOTOR COMPANY

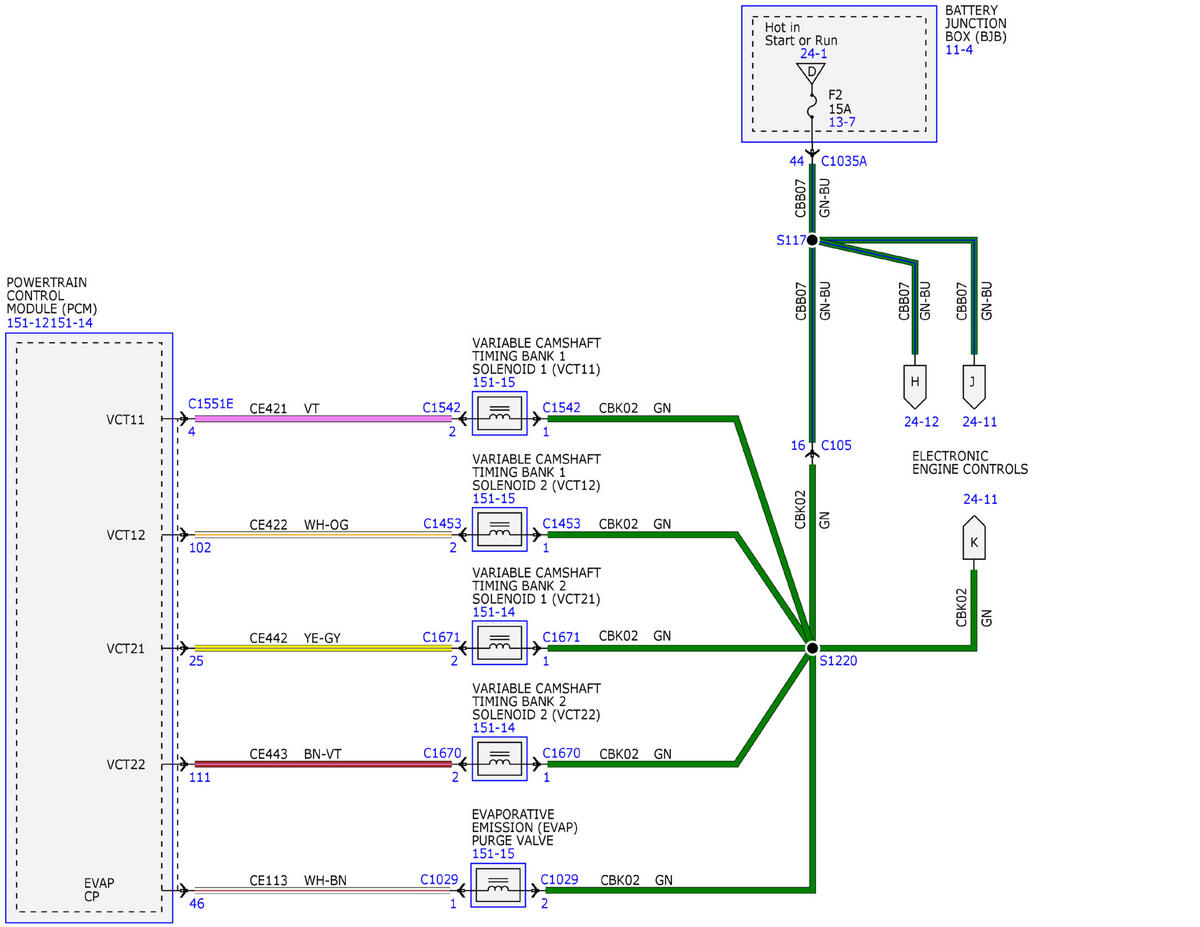

Fig 2: No Caption

GFDWR239050

Courtesy of FORD MOTOR COMPANY

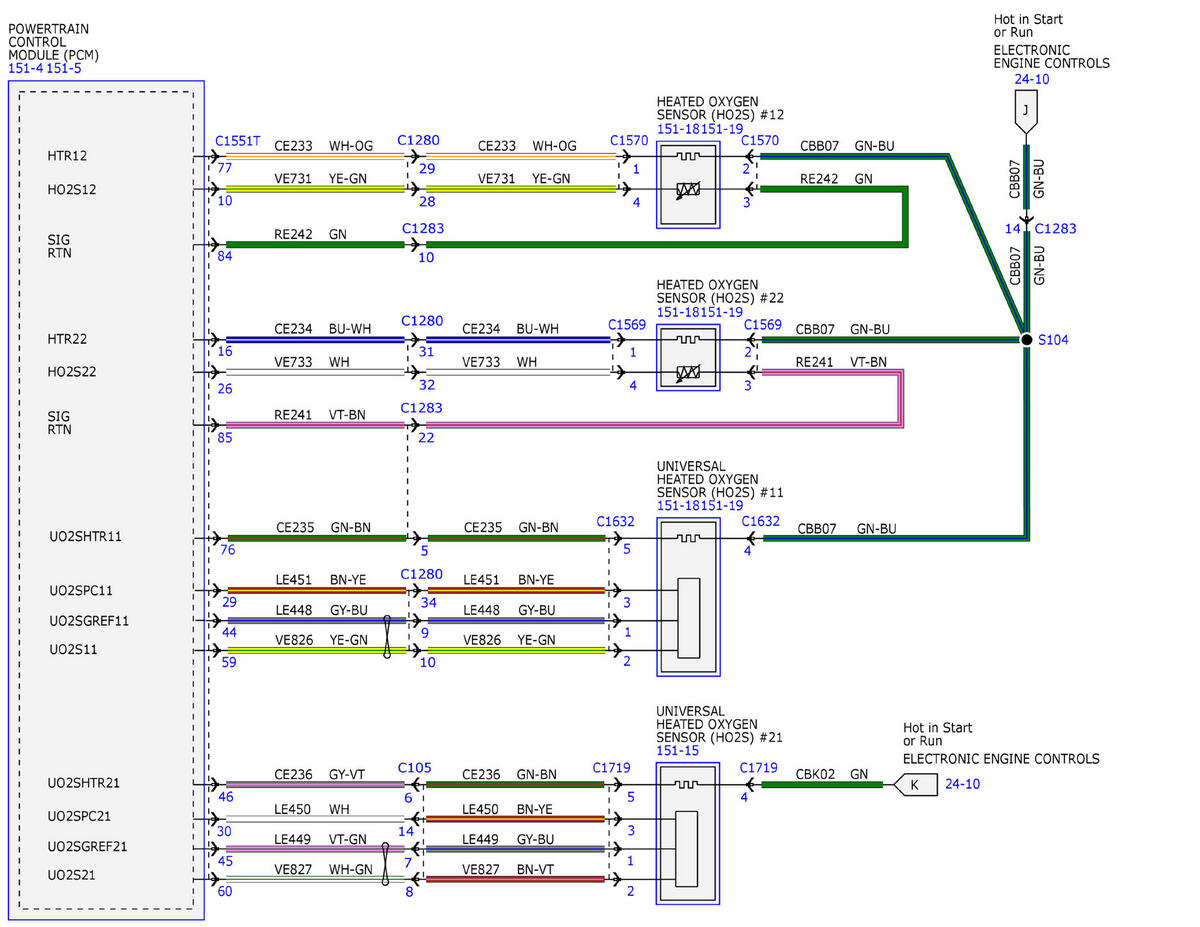

Fig 3: No Caption

GFDWR239051

Courtesy of FORD MOTOR COMPANY

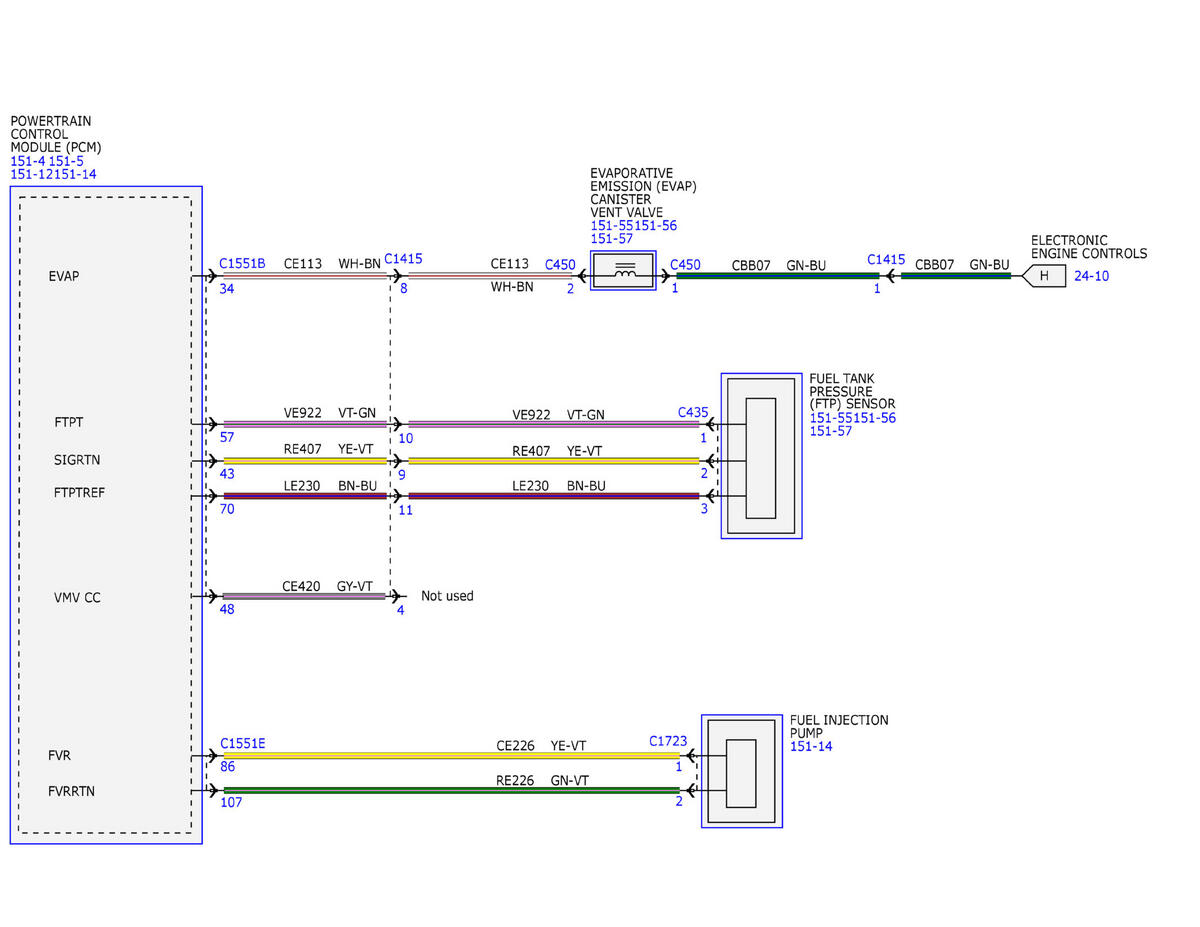

Fig 4: No Caption

GFDWR239052

Courtesy of FORD MOTOR COMPANY

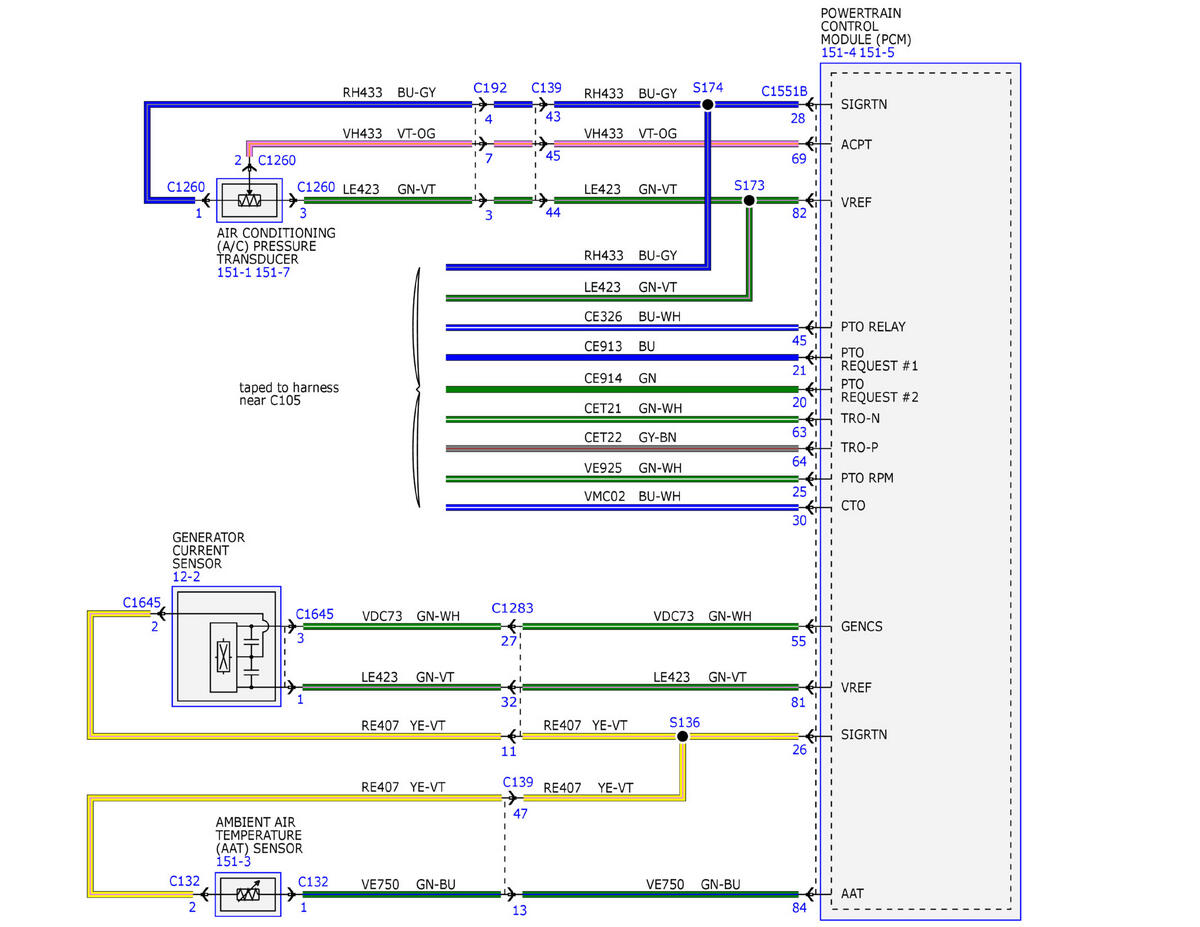

Fig 5: No Caption

GFDWR239053

Courtesy of FORD MOTOR COMPANY

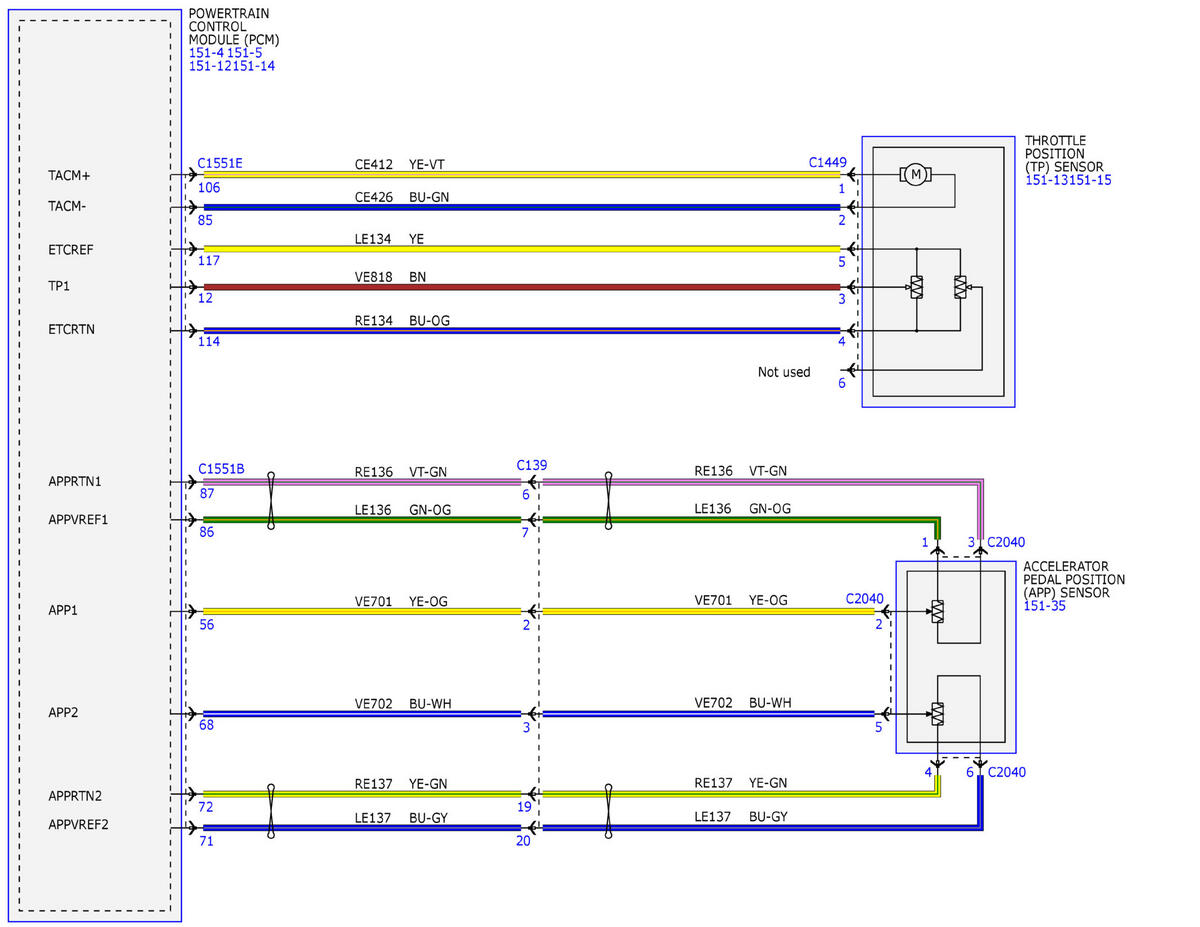

Fig 6: No Caption

GFDWR239054

Courtesy of FORD MOTOR COMPANY

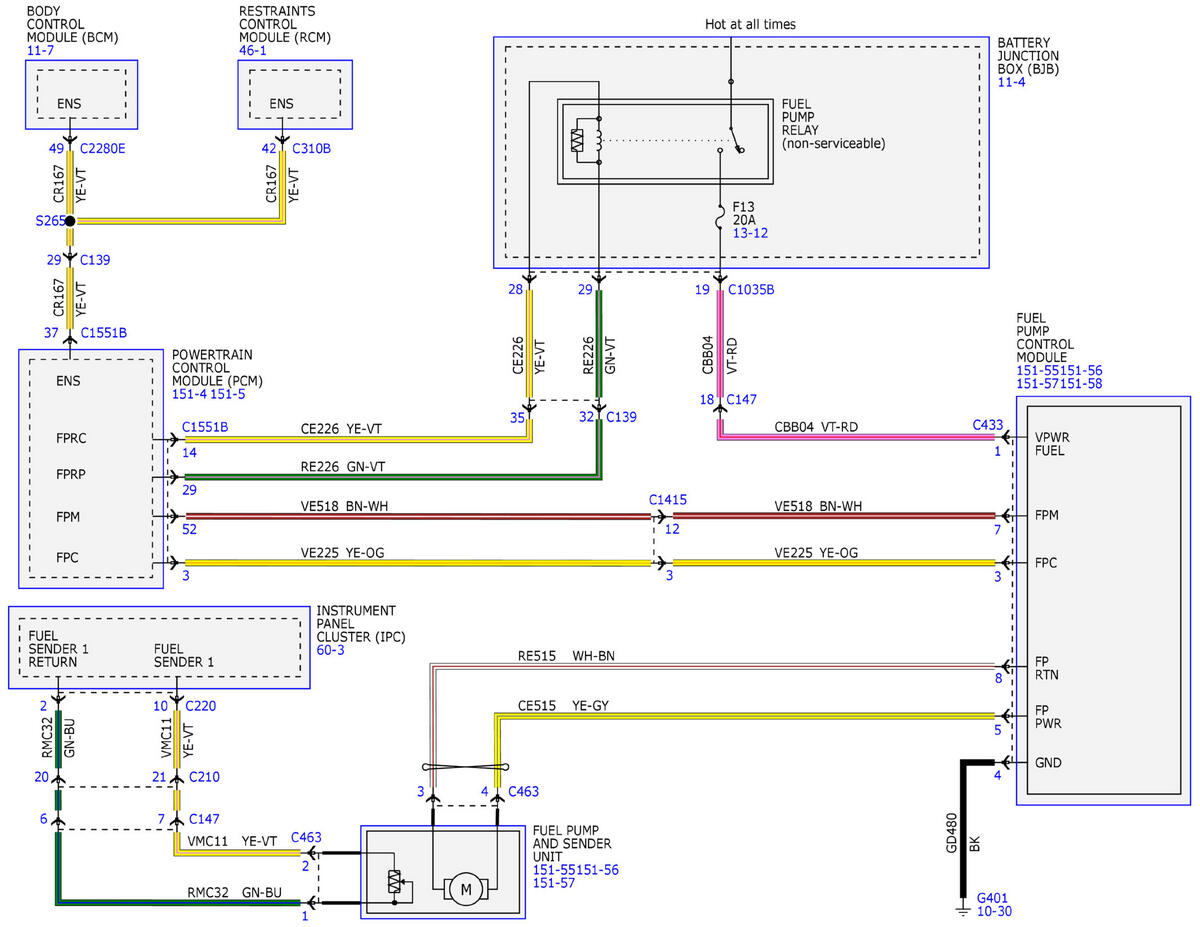

Fig 7: No Caption

GFDWR239055

Courtesy of FORD MOTOR COMPANY

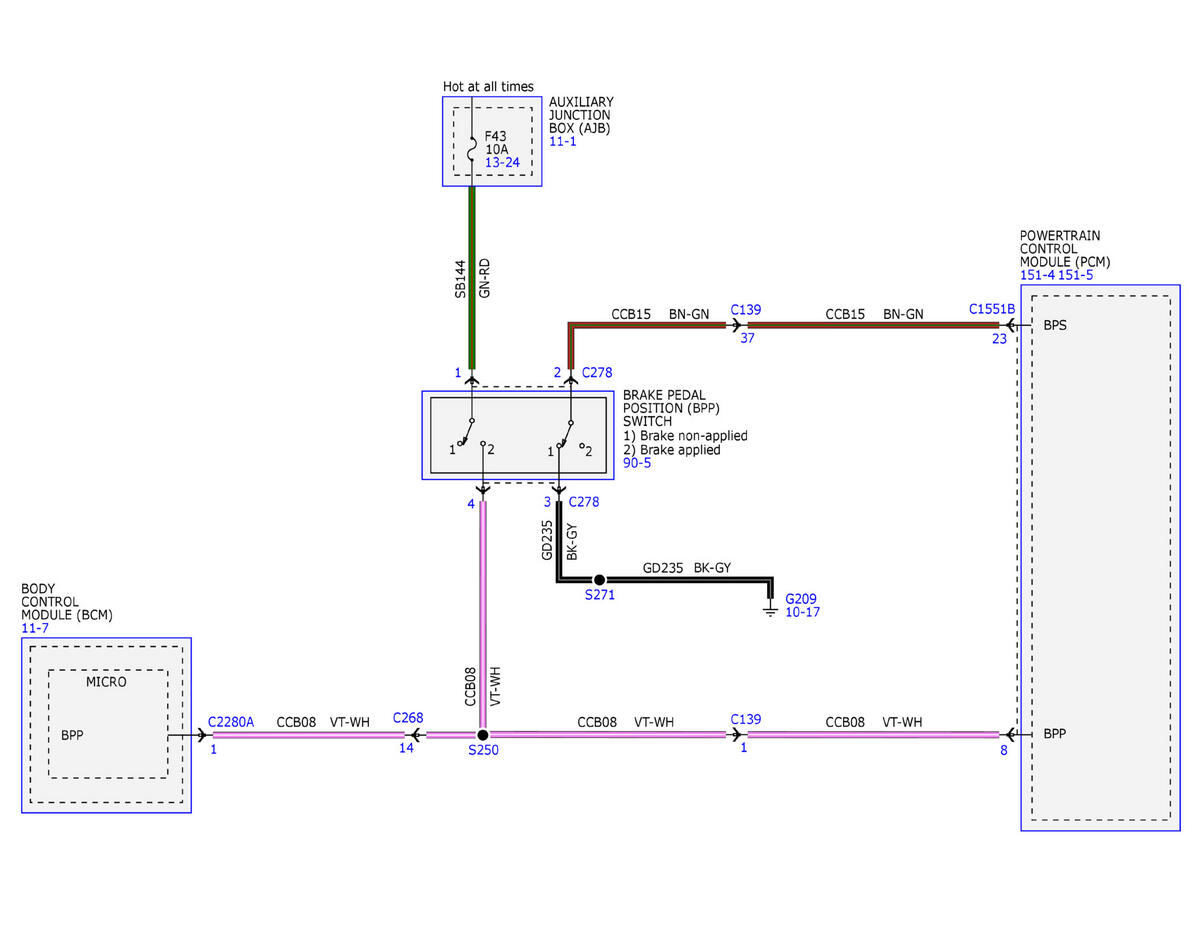

Fig 8: No Caption

GFDWR239056

Courtesy of FORD MOTOR COMPANY

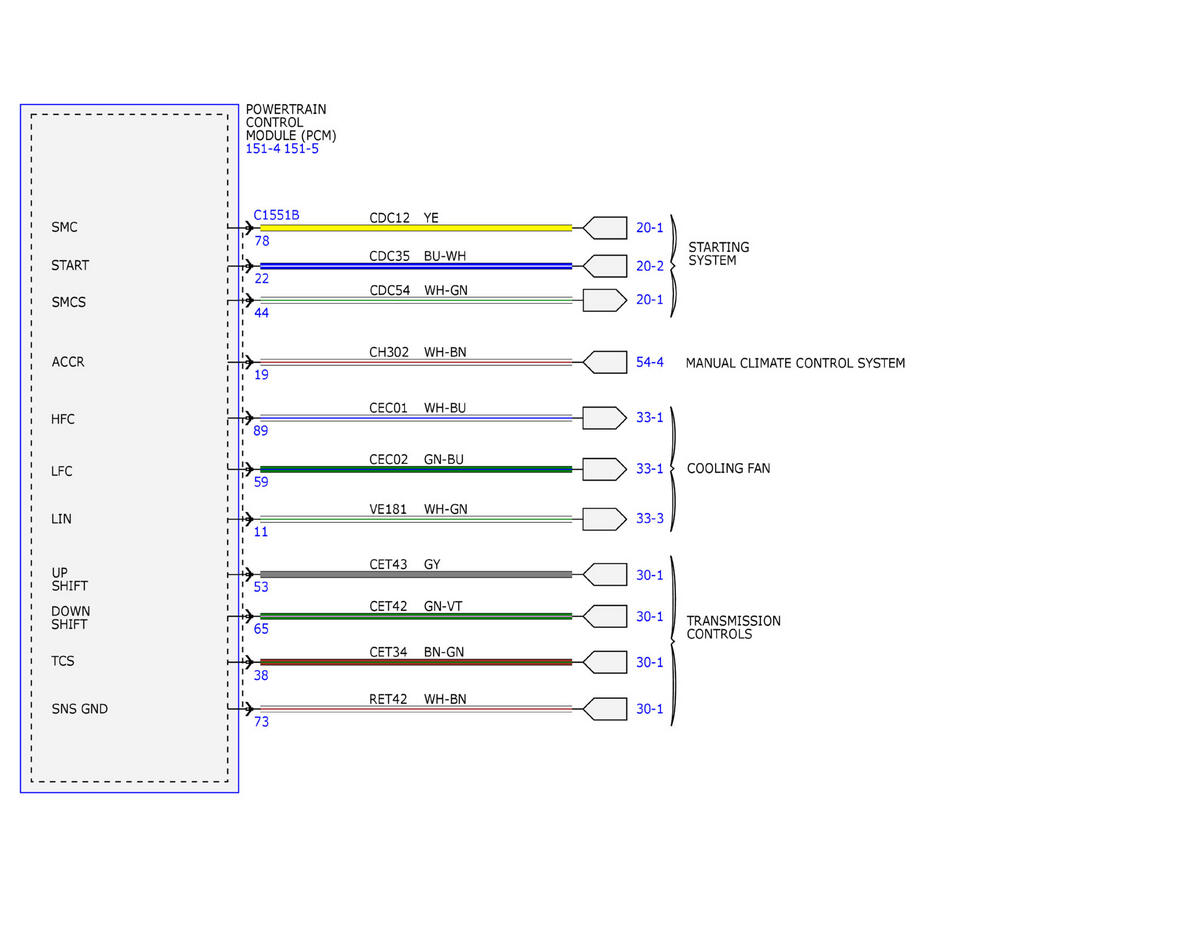

Fig 9: No Caption

GFDWR239057

Courtesy of FORD MOTOR COMPANY

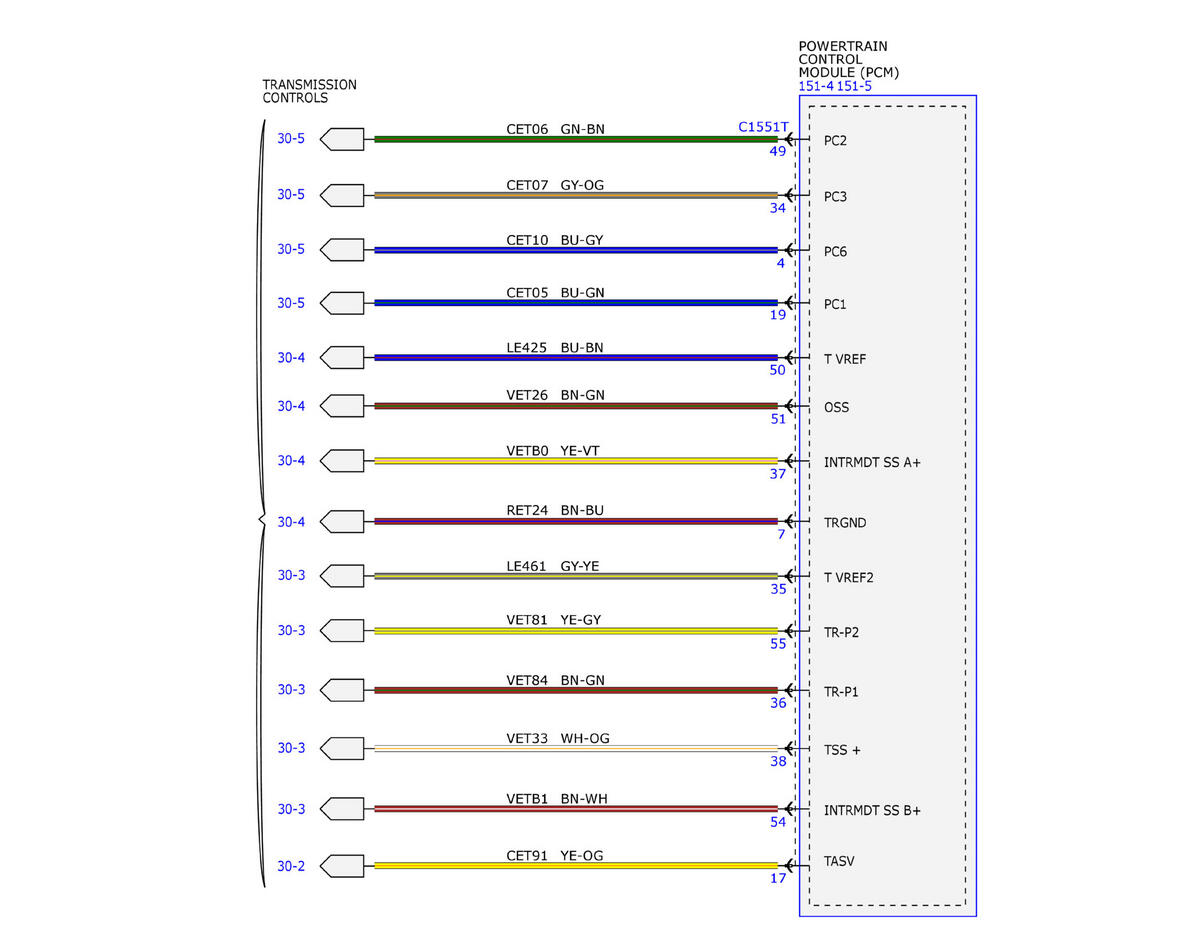

Fig 10: No Caption

GFDWR239058

Courtesy of FORD MOTOR COMPANY

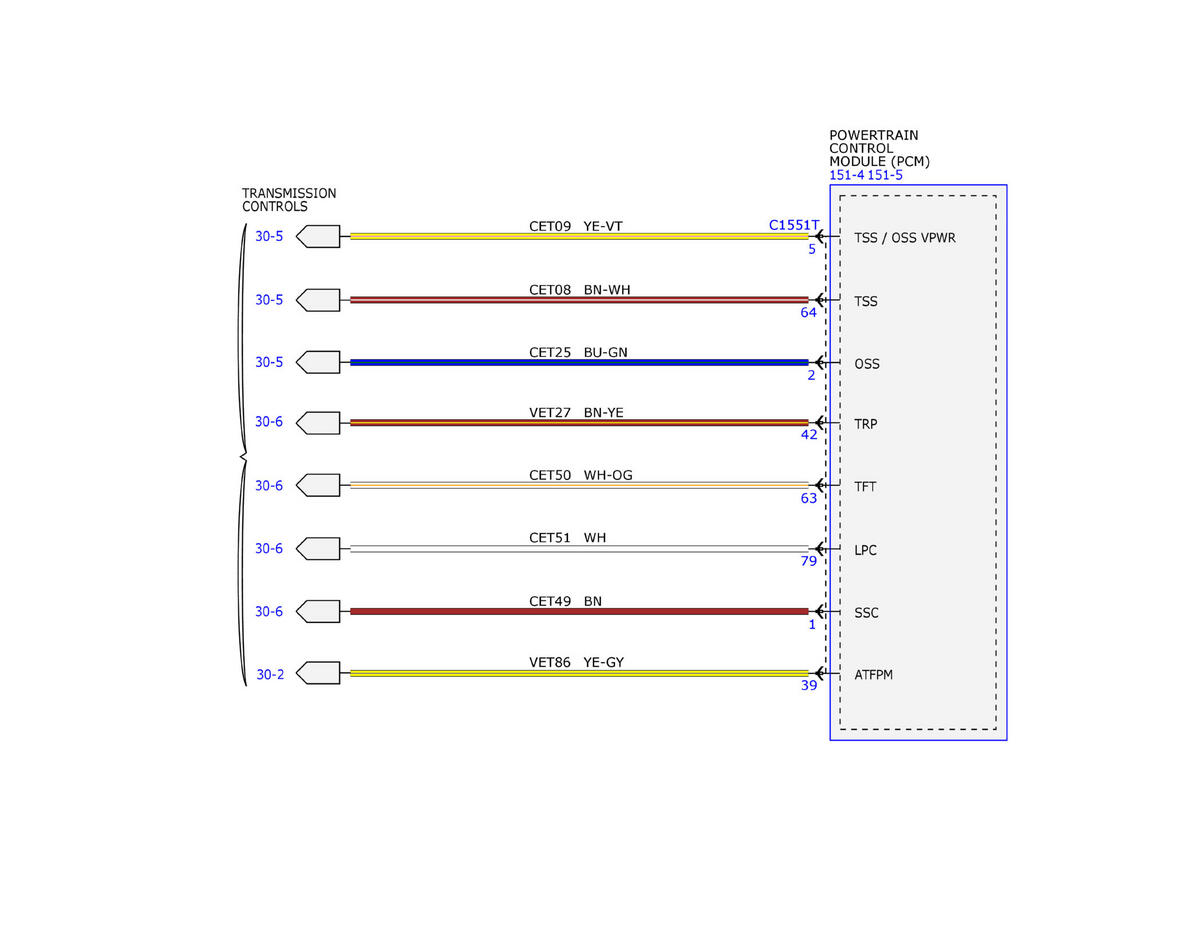

Fig 11: No Caption

GFDWR239059

Courtesy of FORD MOTOR COMPANY

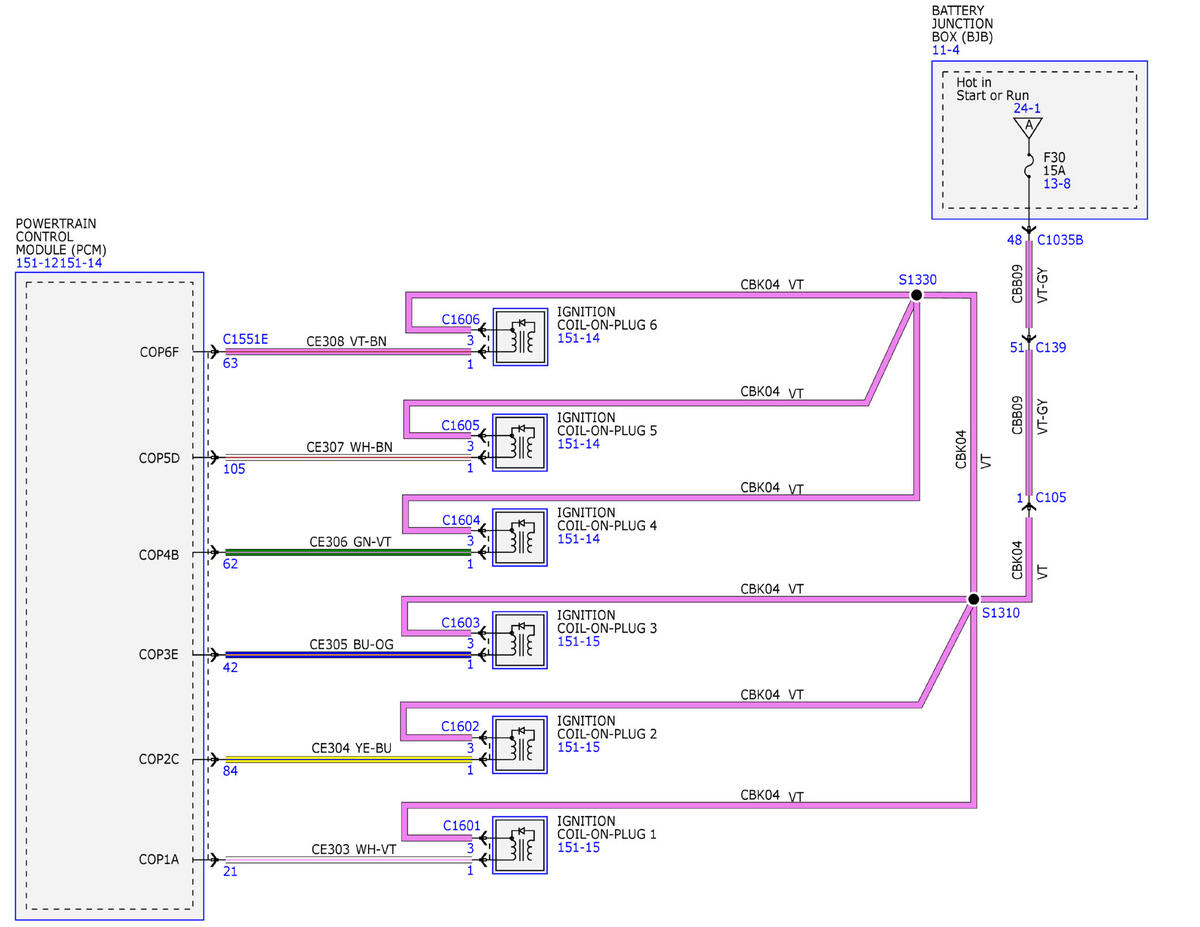

Fig 12: No Caption

GFDWR239060

Courtesy of FORD MOTOR COMPANY

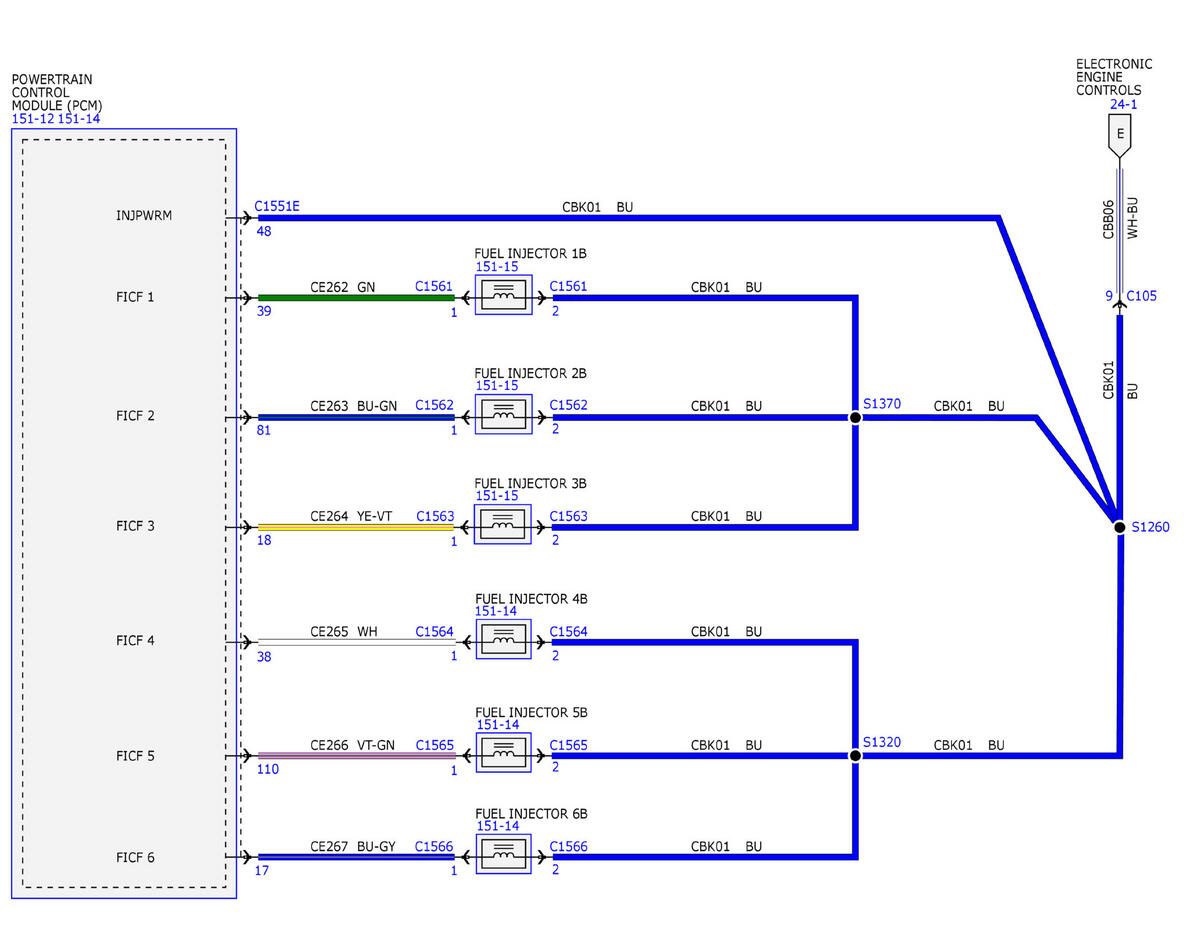

Fig 13: No Caption

GFDWR239061

Courtesy of FORD MOTOR COMPANY

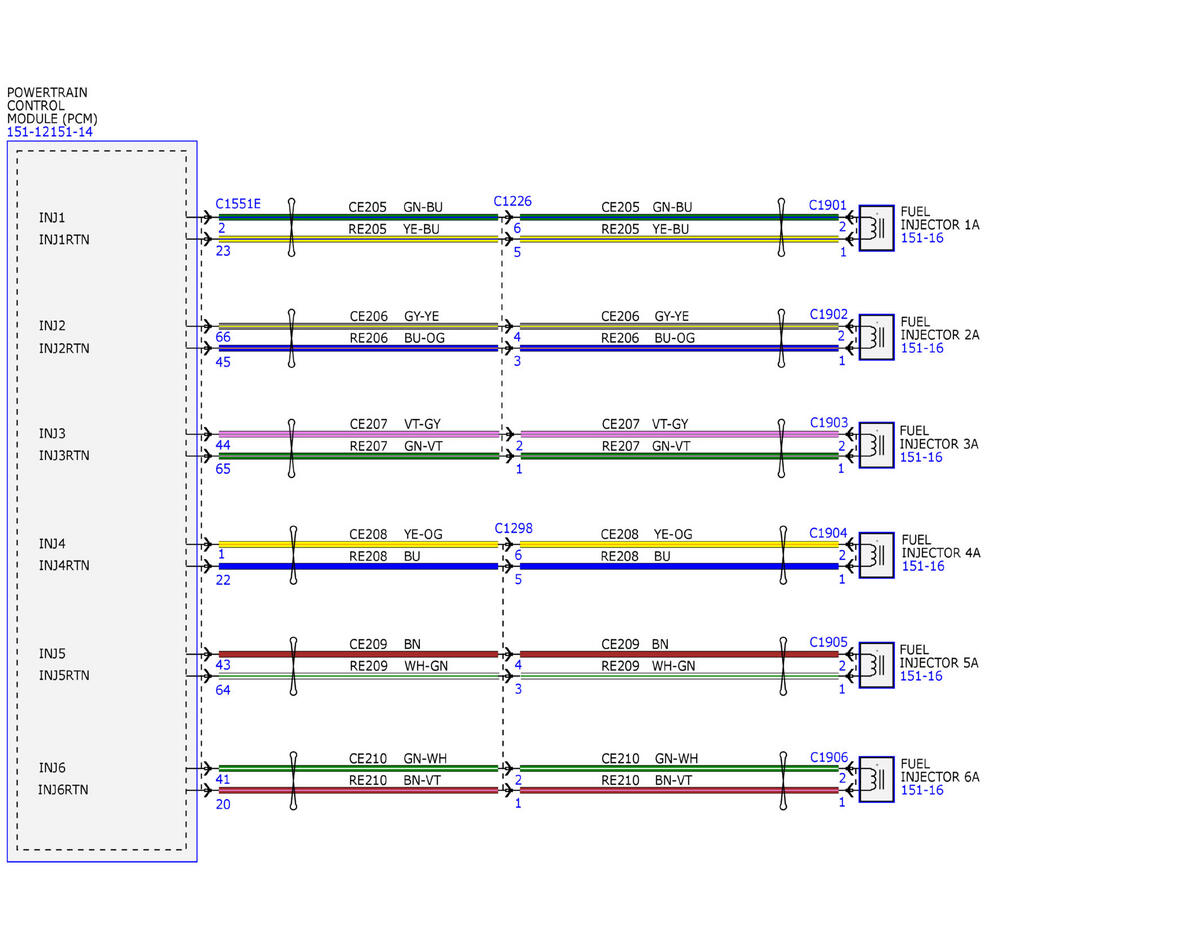

Fig 14: No Caption

GFDWR239062

Courtesy of FORD MOTOR COMPANY

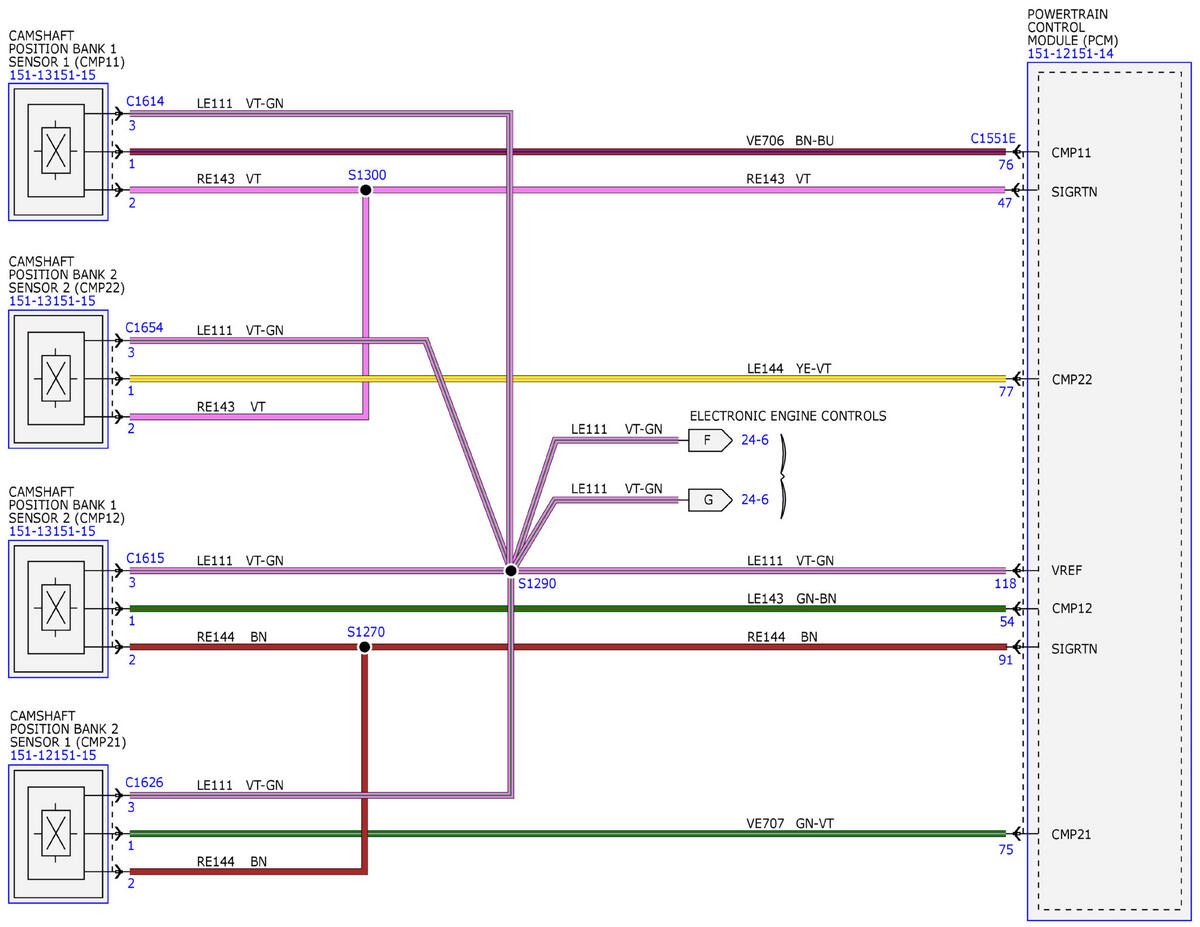

Fig 15: No Caption

GFDWR239063

Courtesy of FORD MOTOR COMPANY

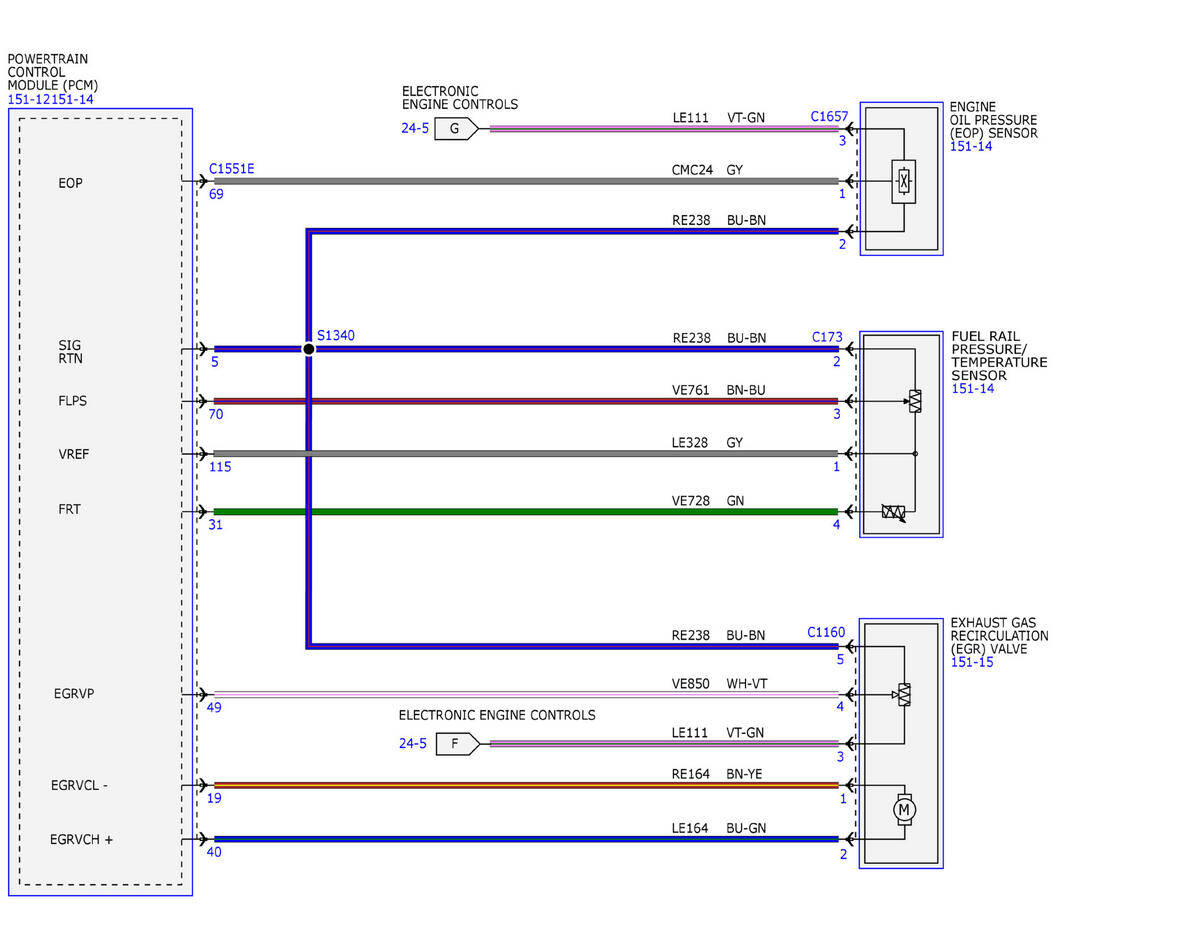

Fig 16: No Caption

GFDWR239064

Courtesy of FORD MOTOR COMPANY

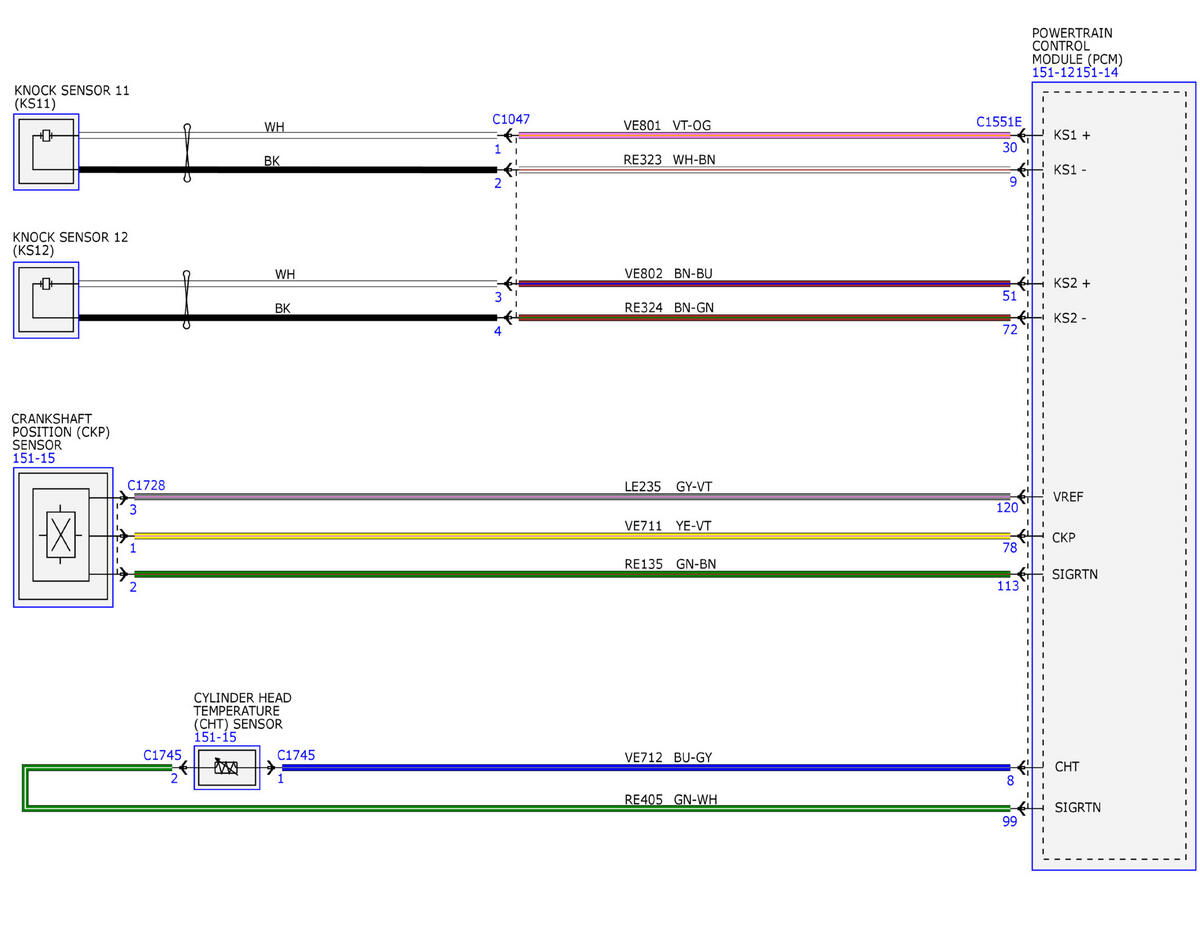

Fig 17: No Caption

GFDWR239065

Courtesy of FORD MOTOR COMPANY

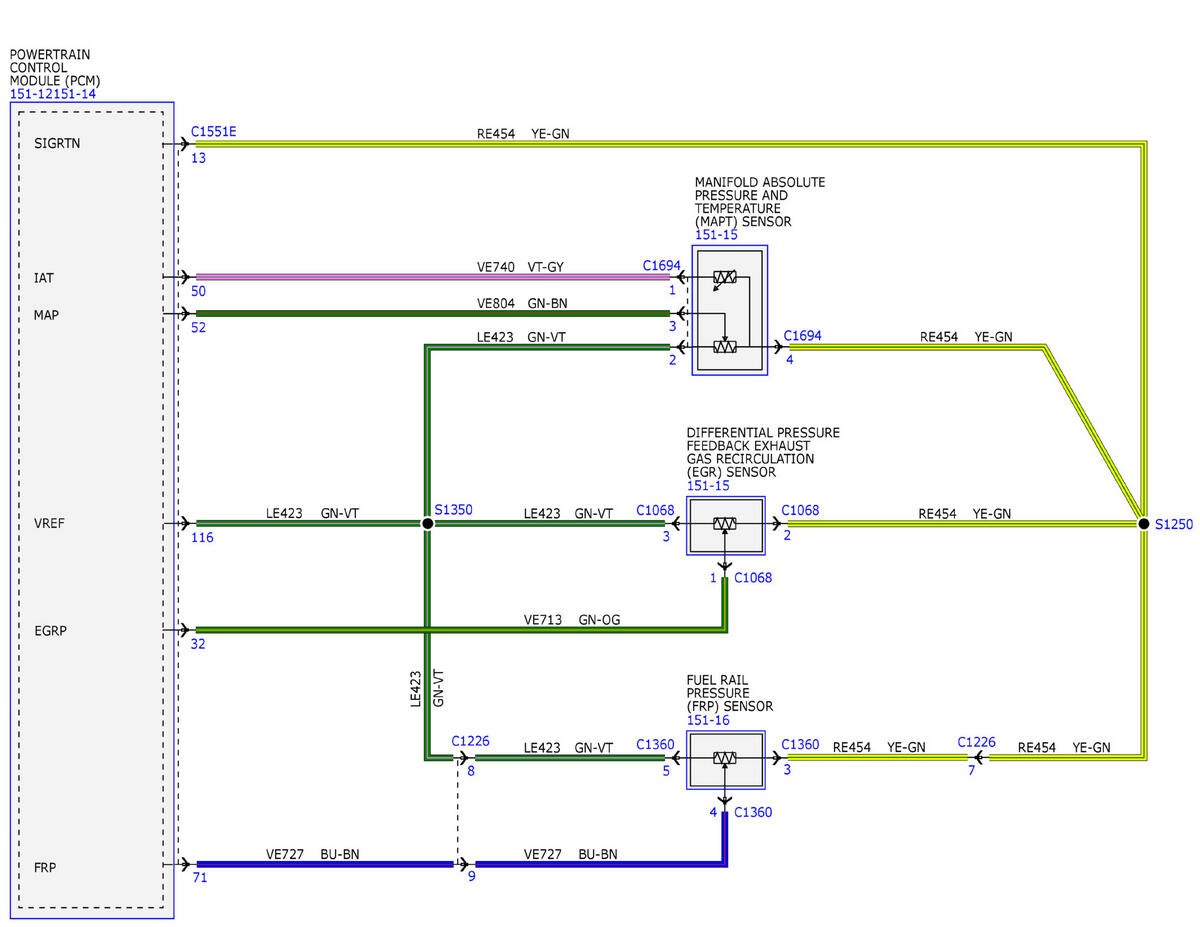

Fig 18: No Caption

GFDWR239066

Courtesy of FORD MOTOR COMPANY

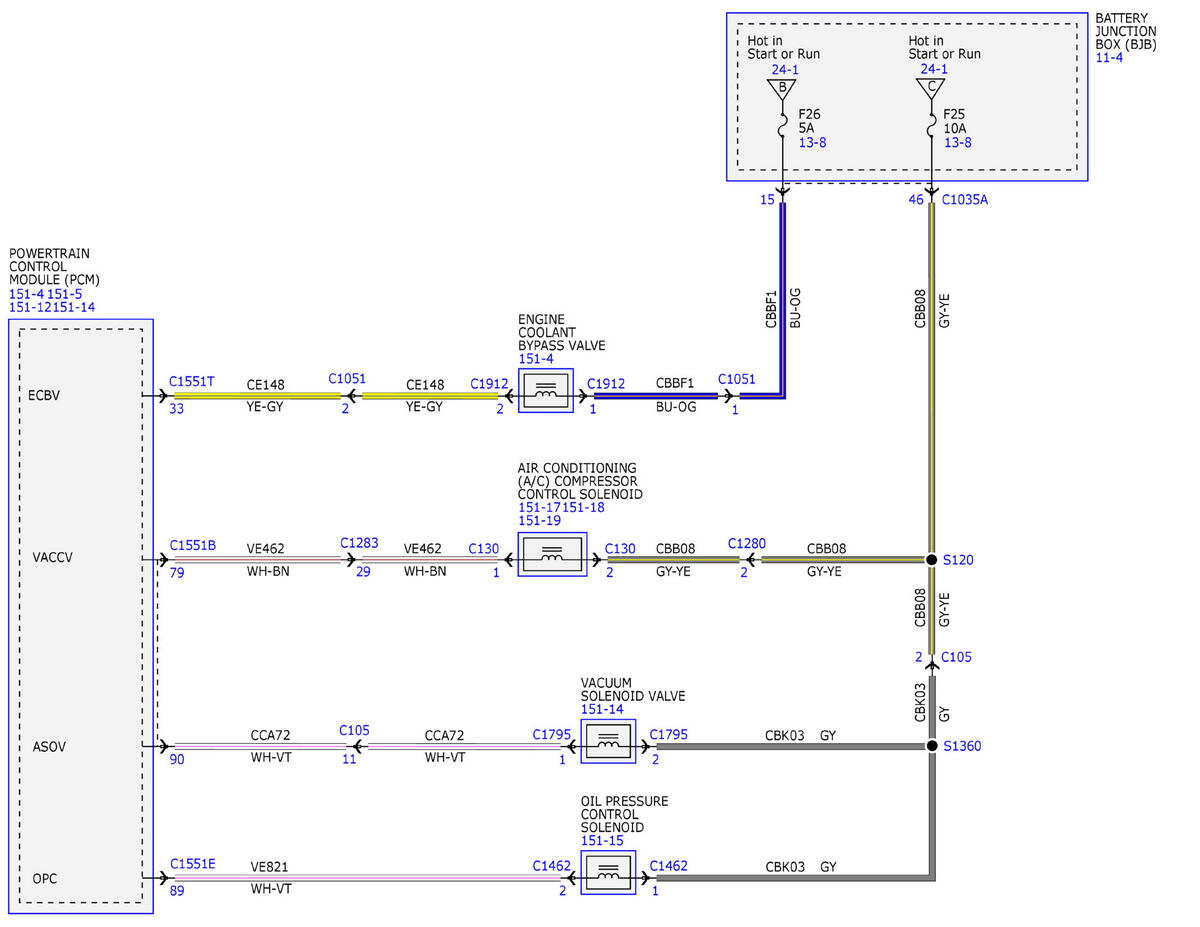

Fig 19: No Caption

GFDWR239067

Courtesy of FORD MOTOR COMPANY
