Parking Brake Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Left hand drive (LHD) shown, right hand drive (RHD) similar.

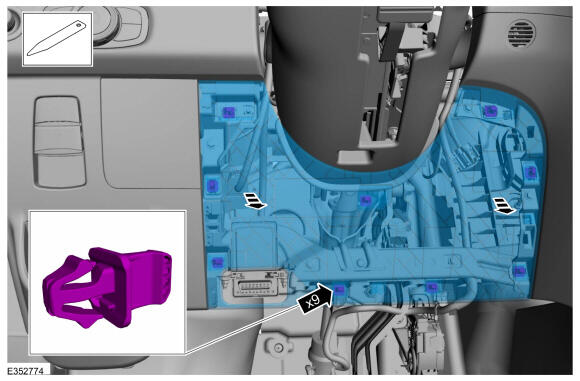

Remove the steering column opening cover detaching the 9 clips.

Courtesy of FORD MOTOR COMPANY

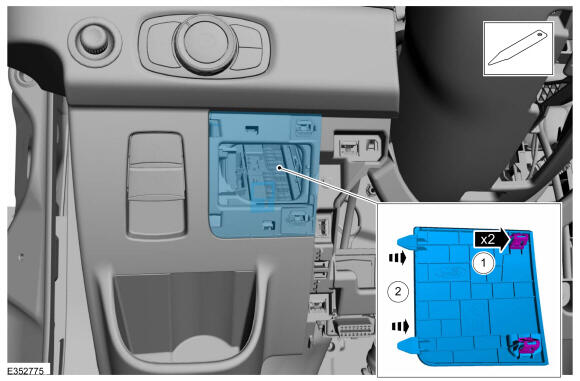

Detach the 2 clips, slide and remove the fuse junction box cover.

Courtesy of FORD MOTOR COMPANY

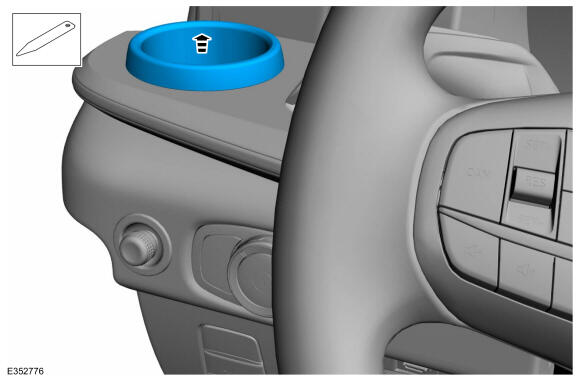

Remove the cup holder assembly.

Courtesy of FORD MOTOR COMPANY

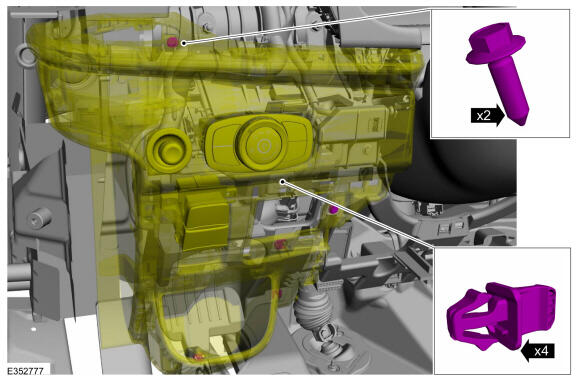

Remove the 2 screws, detach the retainers and remove the cup holder panel assembly.
Torque: 2 Nm

Courtesy of FORD MOTOR COMPANY

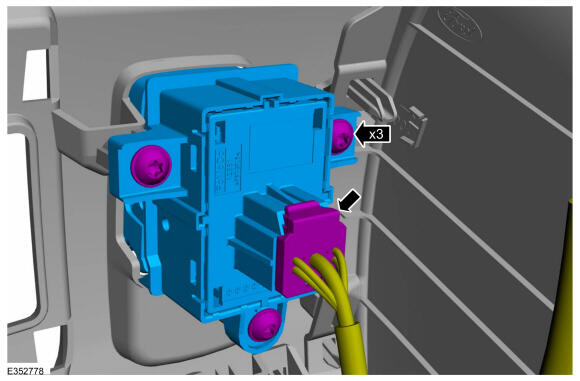

- Disconnect the EPB switch electrical connector.
- Remove the screws and the EPB switch.
  Torque: 1 Nm

Courtesy of FORD MOTOR COMPANY
