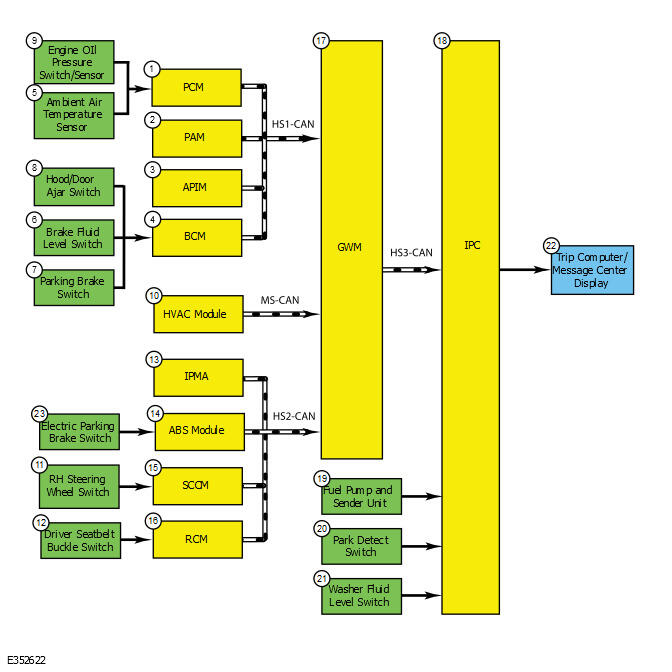

System Diagram
| Item | Description |
|---|---|
| 1 | PCM |
| 2 | PAM |
| 3 | APIM |
| 4 | BCM |
| 5 | Ambient air temperature sensor |
| 6 | Brake fluid level switch |
| 7 | Parking brake switch |
| 8 | Hood/door ajar switch |
| 9 | Engine oil pressure switch/sensor |
| 10 | HVAC module |
| 11 | RH steering wheel switch |
| 12 | Driver seatbelt buckle switch |
| 13 | IPMA |
| 14 | ABS module |
| 15 | SCCM |
| 16 | RCM |
| 17 | GWM |
| 18 | IPC |
| 19 | Fuel pump and sender unit |
| 20 | Park detect switch |
| 21 | Washer fluid level switch |
| 22 | Trip computer/message center display |
| 23 | Electric parking brake switch |
