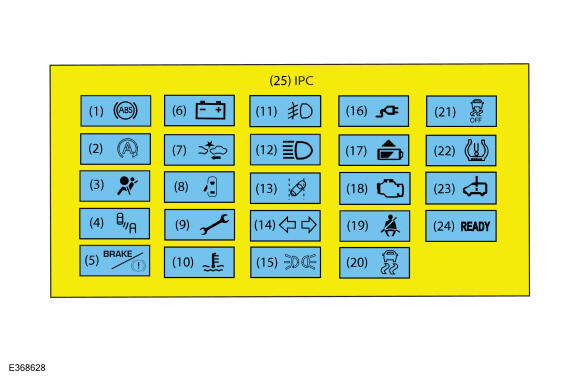

| 1 |
ABS |
| 2 |
Auto stop-start - not used on BEV |
| 3 |
Airbag warning |
| 4 |
BLIS |
| 5 |
Brake warning |
| 6 |
12V battery / charge indicators |
| 7 |
Forward collision warning |
| 8 |
Door ajar |
| 9 |
Powertrain malfunction (wrench) |
| 10 |
Engine over-temperature |
| 11 |
Front fog lamp |
| 12 |
High beam |
| 13 |
Lane departure 'off' |
| 14 |
LH / RH turn indicator |
| 15 |
Light on |
| 16 |
HV Battery Extension Chord is Connected |
| 17 |
HV low battery State of Charge indicator |
| 18 |
MIL |
| 19 |
Seatbelt warning |
| 20 |
Stability-traction control (sliding car) |
| 21 |
Stability-traction control disabled (sliding car off) |
| 22 |
TPMS |
| 23 |
Electrical Malfunction |
| 24 |
READY to Drive indicator |
