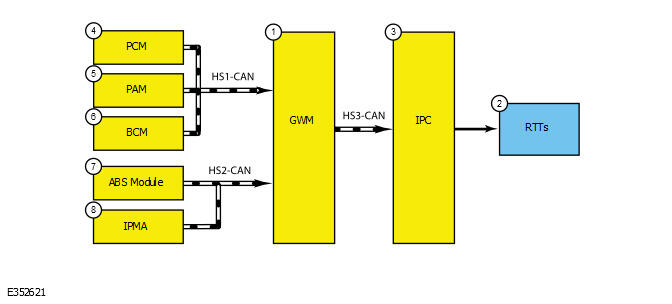

System Diagram - Reconfigurable Telltales (RTTs)
| Item | Description |
|---|---|
| 1 | GWM |
| 2 | Reconfigurable Telltales (RTTs) |
| 3 | IPC |
| 4 | PCM |
| 5 | PAM |
| 6 | BCM |
| 7 | ABS module |
| 8 | IPMA |

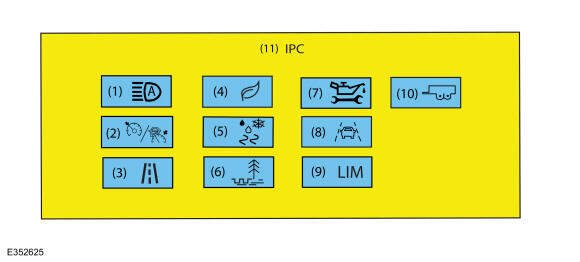

Reconfigurable Telltales (RTTs)
| Item | Description |
|---|---|
| 1 | Auto high beam |
| 2 | Cruise control/adaptive cruise control |
| 3 | Drive mode - normal |
| 4 | Drive mode - eco |
| 5 | Drive mode - slippery |
| 6 | Drive mode - mud/ruts |
| 7 | Engine oil change required |
| 8 | Lane keep assist |
| 9 | Speed limiter |
| 10 | Tow/haul |
| 11 | IPC |
