Air Conditioning (A C) Clutch Air Gap Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Air Conditioning (A/C) Clutch Air Gap Adjustment

Activation

1. NOTE: Compressor with a spring rubber clutch shown others similar.

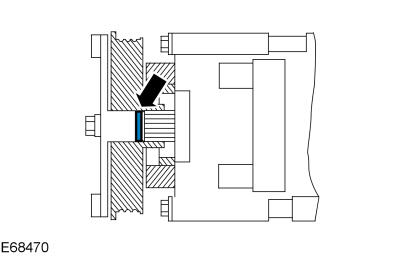

   Check the A/C clutch air gap at 3 equally spaced places between the clutch plate and the A/C clutch pulley. Refer to: CLIMATE CONTROL SYSTEM - GENERAL INFORMATION (SPECIFICATIONS - DIAGNOSIS & TESTING)

   Courtesy of FORD MOTOR COMPANY

2. Remove the A/C clutch. Refer to: Air Conditioning (A C) Clutch and Air Conditioning (A C) Clutch Field Coil .
3. NOTE: For some vehicles a shim kit may only be available with the A/C clutch assembly.

   Add or remove spacers between the clutch plate hub and the compressor shaft until the clearance is within specification. Refer to: CLIMATE CONTROL SYSTEM - GENERAL INFORMATION (SPECIFICATIONS - DIAGNOSIS & TESTING)

4. For A/C clutch bolt or hub torque specification, Refer to: CLIMATE CONTROL SYSTEM - GENERAL INFORMATION (SPECIFICATIONS - DIAGNOSIS & TESTING)

Courtesy of FORD MOTOR COMPANY
