Transmission Fluid Cooler: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - 3.5L Duratec (202kW/275PS)/3.5L EcoBoost (235kW/320PS) - Overview .

    AWD

  2. Remove the front subframe. Refer to: FRONT SUBFRAME

    All vehicles

  3. NOTE: Be prepared to collect escaping fluids.

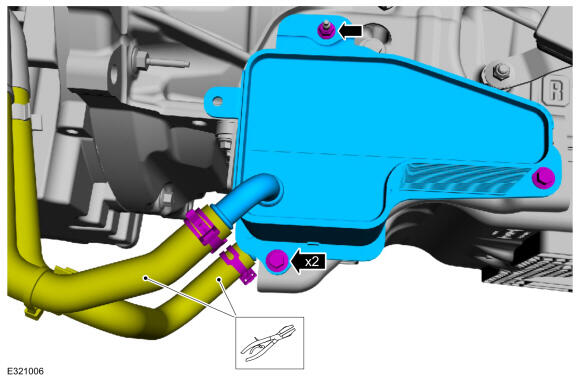

    Clamp the coolant hoses, release the clamps and disconnect the coolant hoses. Remove the bolts and the transmission fluid cooler.

    Torque: 11 Nm

GFD839819Courtesy of FORD MOTOR COMPANY
