Transmission Cooling - Component Location

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

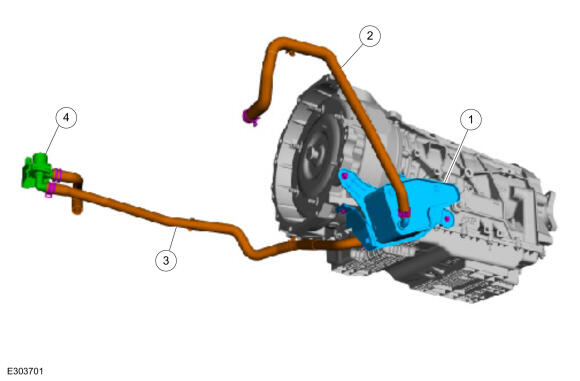

GFD839818Courtesy of FORD MOTOR COMPANY
Item Description
1 Transmission fluid cooler
2 Transmission fluid cooler coolant inlet hose
3 Transmission fluid cooler coolant outlet hose
4 Coolant control valve
