Torque Converter Clutch (TCC) Proportional (VFS)
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

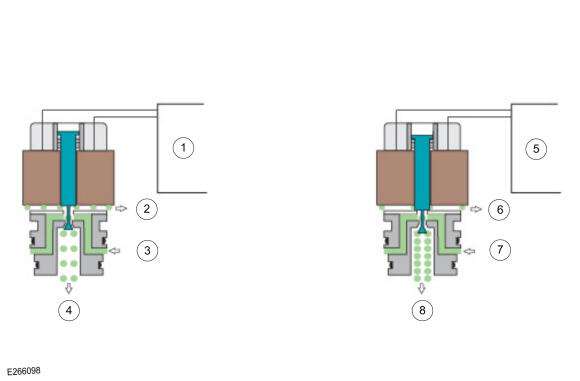

Normally Low Solenoid
| Item | Description |
|---|---|
| 1. | Low Current |
| 2. | High Exhaust |
| 3. | SF Circuit Fluid (Supply) |
| 4. | Low Pressure Output |
| 5. | High Current |
| 6. | Low Exhaust |
| 7. | SF Circuit Fluid (Supply) |
| 8. | High Pressure Output |
The TCC solenoid is a variable force solenoid that varies hydraulic pressure by actuating a hydraulic valve. The TCC solenoid uses proportional operation. Normally low solenoids provide hydraulic pressure proportional to supplied current. A normally low solenoid will output very low pressure with low (50 mA) or no current, while it will supply high pressure with high current (850 mA).
