Solenoid Body Identification and Strategy

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

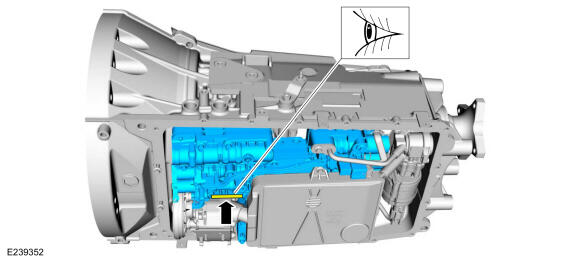

GFD839239Courtesy of FORD MOTOR COMPANY

If the solenoid body strategy etched on the main control does not match what the scan tool displays, the solenoid body strategy must be downloaded into the PCM or TCM or harsh shifts will result.
