Solenoid Band Number
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

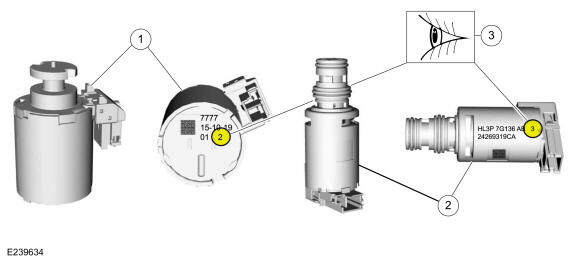

| Item | Description |
|---|---|
| 1 | CIDAS (casting integrated direct acting solenoid) |
| 2 | VFS (variable force solenoids) |
| 3 | Band number |
The solenoids are calibrated from the factory and are not all the same. There are 2 types of VFS (variable force solenoids), normally high and normally low solenoids. The CIDAS s are all normally low solenoids. The solenoids can be replaced separately, but only with the same type of solenoid. The replacement solenoid band number must match the band number of the solenoid being replaced. The band number is printed on the solenoids in the location shown and will be a 1, 2, 3, 4 or 5.
