Fuel Level Sender: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit

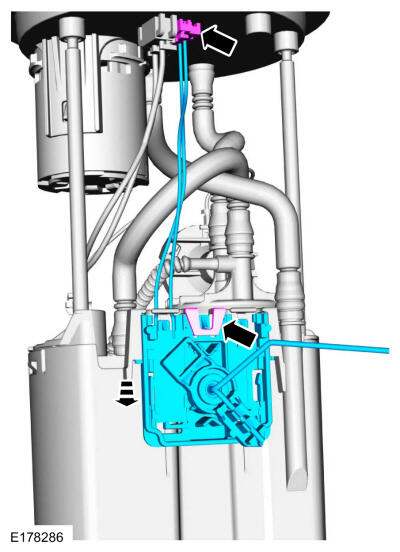

- Disconnect the fuel level sender electrical connector, release the retainer and remove the fuel level sender.
