Accessory Drive
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

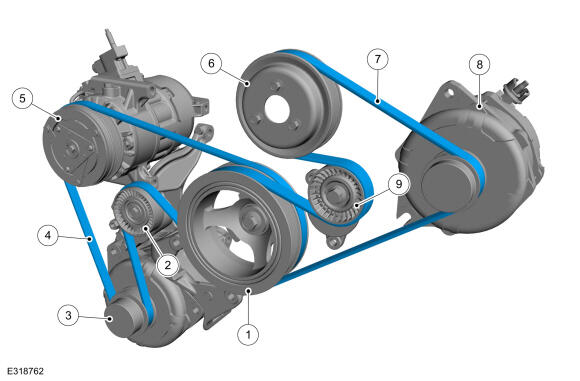

Accessory Drive - Component Location
| Item | Description |
|---|---|
| 1 | Crankshaft pulley |
| 2 | Air conditioning (A/C) compressor belt tensioner |
| 3 | Auxiliary generator (part of dual generator package) (if equipped) |
| 4 | Air conditioning (A/C) compressor drive belt |
| 5 | Pulley - A/C compressor |
| 6 | Coolant pump pulley |
| 7 | Accessory drive belt |
| 8 | Generator |
| 9 | Accessory drive belt tensioner |
