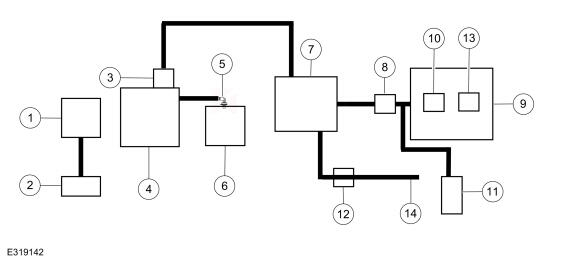

System Diagram
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | LH Valve cover |
| 2 | Air Cleaner outlet pipe |
| 3 | EVAP canister purge valve |
| 4 | Upper intake manifold |
| 5 | PCV |
| 6 | RH valve cover |
| 7 | EVAP canister |
| 8 | Fuel Tank Pressure (FTP) sensor and tube |
| 9 | Fuel tank |
| 10 | Fuel level sensors |
| 11 | Fuel tank filler pipe |
| 12 | External EVAP bleed valve and Filter Assembly |
| 13 | Fuel pump and sender assembly |
| 14 | Fresh air hose |
